Datalogic

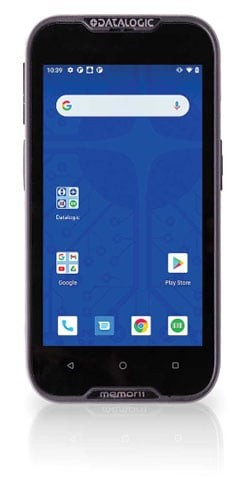

Datalogic Memor 10 Mobile Computer Android, Qualcomm Snapdragon, 1D/2D Imager, IP65, Wireless Charging

SKU:

944900004

Use the Datalogic Memor 10 Rugged SmartScanner to streamline mobile work with a rugged handheld computer that blends smartphone ease with enterprise durability, powered by Android and a Qualcomm Snapdragon processor, and equipped with reliable 1D and 2D barcode scanning, contactless wireless charging, and IP65 protection for retail, logistics, healthcare, and field service workflows.
Description
ico-plus ico-minus

The Datalogic Memor 11 Rugged PDA Terminal is a versatile handheld computer engineered for enterprise-grade mobile data capture in warehousing, logistics, retail and field service. Combining a 5-inch HD full-touch display with a high-performance octa-core platform, 4 GB of RAM and 32 GB of internal flash, the Memor 11 delivers responsive application performance and fast barcode capture through an integrated 2D imager with Datalogic Green Spot. Built to stay productive across shifts, available options include Wi‑Fi, Bluetooth, NFC, GPS and cellular connectivity, removable hot‑swappable batteries and IP65 protection—features that reduce downtime, simplify deployment and support reliable operation in demanding environments.

Key Features

  • Rugged design: IP65 ingress protection and industrial-grade construction support use in warehouse, field and retail environments for reduced device downtime.
  • Fast, reliable scanning: Integrated 2D imager with Green Spot provides accurate barcode capture and visual confirmation for high-throughput workflows.
  • Responsive performance: Octa-core processing with 4 GB RAM and 32 GB flash enables smooth handling of enterprise applications and multitasking.
  • Comprehensive connectivity: USB‑C, Bluetooth, Wi‑Fi (802.11ac/Wi‑Fi 5), NFC, GPS and optional 4G LTE deliver flexible network and peripheral options for mobile operations.
  • Field-ready power: 4100 mAh removable, hot‑swappable battery options extend runtime and simplify continuous operation during extended shifts.

Specifications

  • Brand: Datalogic
  • Product: Memor 11 Rugged PDA Terminal
  • Product Type: portable data collection device / mobile computer
  • Screen Size: 5 in
  • Screen Resolution: 1280 x 720 px
  • Touch Screen: Full touch
  • Processor Frequency: 2 GHz
  • CPU Cores: 8
  • RAM: 4 GB
  • Internal Storage (Flash): 32 GB
  • Operating System: Android 11
  • Google Mobile Services: Yes
  • Scanner Type / Imager: 2D imager (FFHE HP) with Green Spot
  • Rear Camera Resolution: 13 MP
  • Connectivity: USB-C, Bluetooth, Wi‑Fi (802.11ac / Wi‑Fi 5), NFC, GPS, optional 4G LTE
  • Micro SD Slot: Yes
  • Battery Capacity: 4100 mAh
  • Battery Removable / Hot‑Swappable: Yes
  • Charging Methods: Induction (wireless) and contact dock charging
  • Ingress Protection / Protection Rating: IP65
  • Drop Resistance Height: 1.5 m
  • Color Options: Black, White
  • Form Factor: Handheld / pistol-grip variants available

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Phone

  • IP Rating: IP65

  • Range: Standard Range

  • Connection: USB, Bluetooth

  • Battery Features: Wireless Charging

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 2D
  • 1D
Image Sensor Type Imager
Scanner Range Standard Range
Google Mobile Services (GMS) Yes
Wireless Charging Yes
Sensor Type
  • Magnetometer
  • Accelerometer
  • Gyroscope
  • Ambient Lighting
  • Proximity
SIM Size Supported Micro
Features
  • Oil Resistant
  • Chemical Resistant
  • Push-to-talk
Drop Specification

Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested onto steel/ concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test

Illumination Type LED
Processor & Chipset
Processor Core Octa-core (8 Core)
Processor Speed 2 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • microSDHC
Display & Graphics
Screen Size 5"
Screen Mode HD
Screen Resolution 720 x 1280
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Network & Communication
Wireless LAN Yes
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 BLE
Cellular Data Connectivity Technology
  • LTE
  • 2G
  • 3G
  • LTE Advanced
  • 4G
GPS Yes
Global Navigation Satellite System (GNSS) Supported BeiDou/Galileo/GLONASS
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android 11
Upgradable Operating System Android 13
Battery Information
Battery Capacity 4100 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.80 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 158°F (70°C)
Physical Characteristics
Product Color Black
Form Factor Phone-size
Rugged Yes
Weight (With Battery) 10.05 oz
Miscellaneous
Application/Usage
  • Retail
  • Warehouse
  • Logistics
  • Manufacturing
  • Transportation
  • Direct Store Delivery (DSD)
  • Field Sales/Service
Ingress Protection (IP) Rating IP65
Documents
ico-plus ico-minus
Product document memor11.pdf MOD-MEMOR-11
