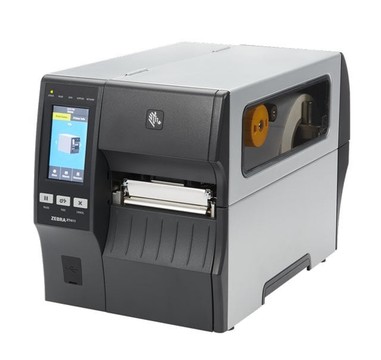

Zebra ZT41142-T0100AGA Label Printers
ZT41142-T0100AGA
Select model
The Zebra ZT411R RFID Printer is a cutting-edge industrial printer designed for optimal performance and versatility. Built with a robust metal frame, this printer handles various applications across manufacturing, logistics, and retail efficiently. The large color touch display makes operational management effortless, allowing quick adjustments to connectivity and settings. With field-installable options for RFID technology and dual USB host ports, the ZT411R adapts easily to your evolving business needs, ensuring top-notch productivity and reliability.
Key Features
- Versatile Connectivity: Equipped with Ethernet, USB, Bluetooth, and optional dual-band Wi-Fi.
- High Print Quality: Available in 203 dpi, 300 dpi, and 600 dpi resolutions.
- Easy Media Loading: Side-loading supplies path and color-coded guides for quick loading.
- User-Friendly Interface: 4.3-inch color touch display with intuitive navigation.
- Robust Design: Durable metal construction ensures longevity in demanding environments.
Specifications
- Print Methods: Thermal transfer and direct thermal printing
- Dimensions: ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H
- Weight: ZT411: 36 lbs.
- Maximum Print Width: ZT411: 4.09 in.
- Maximum Print Speed: ZT411: 14 ips
- Media Types: Continuous, die-cut, notch, black-mark
- Operating Temperature: 40° F to 104° F (thermal transfer)
- Memory: 256 MB SDRAM, 512 MB on-board linear Flash
- Barcode Support: Linear and 2D barcodes including QR codes
Main Features
-
RFID: Yes
-
Rugged: Industrial
-
Connection: Serial, USB, Ethernet, Bluetooth
| Technical Information | |
|---|---|
| Recommended Use | Label Print |
| Maximum Mono Print Speed | 14.02 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Length | 13.08 ft |
| Maximum Print Width | 4.09" |
| Application/Usage | Industrial |
| Print Technology | Direct Thermal /Thermal Transfer |
| Memory | |
|---|---|
| Standard Memory | 256 MB |
| Interfaces/Ports | |
|---|---|
| Serial Port | Yes |
| USB | Yes |
| Network & Communication | |
|---|---|
| Ethernet | Yes |
| Bluetooth | Yes |
| RFID | Yes |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Maximum Roll Diameter | 8" |
| Maximum Label Length | 39" |
| Power Description | |
|---|---|
| Power Source | AC Supply |
| Physical Characteristics | |
|---|---|
| Height | 12.8" |
| Width | 10.6" |
| Depth | 19.5" |
| Weight (Approximate) | 36 lb |
| Miscellaneous | |
|---|---|
| Platform Supported | PC |
| Certifications & Standards |
|
| Energy Star | Yes |
| Country of Origin | China |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
|---|---|
| Limited Warranty | 1 Year |
zt400-series.pdf ZT41142-T0100AGA
zt400-series.pdf MOD-ZT411-RFID
