Zebra

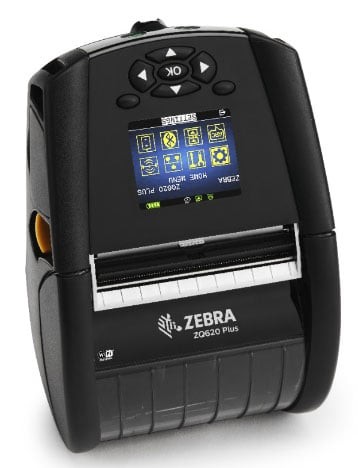

ZQ620 Plus Premium Mobile 3-Inch Wide Standard

SKU:

ZQ62-AUWA0B4-00

Fitted with a 3250 mAh battery and IP54-rated enclosure, the Zebra ZQ62-AUWA0B4-00 is a direct thermal mobile printer that delivers monochrome label and receipt output at 203 dpi and up to 4.53 in/s across a 2.83-inch print width, with maximum label lengths to 32 inches and media up to 3.13 inches wide and 6.50 mil thick on rolls to 2.60 inches in diameter. IEEE 802.11ac Wi-Fi with 802.11r fast roaming, Bluetooth, and NFC are built in, with optional Serial RS-232, USB, and Ethernet connectivity; 256 MB of standard memory supports ZPL, EPL, CPCL, and ZBI 2.0 emulation alongside 1D and 2D symbologies including PDF417, Data Matrix, QR Code, and Aztec. Gap and black mark sensors handle die-cut, label, tag, receipt, and black bar media. Weighing 1.61 lb and operating across -4 degrees F to 122 degrees F, it supports iOS, Android, and PC platforms under Link-OS, and carries CE, TUV, and CSA safety certifications with a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra ZQ620 Plus is an enterprise-grade mobile direct thermal label and receipt printer designed for frontline workers in retail, warehousing, manufacturing, transportation, and logistics. Printing without ribbons at up to 115 mm/s with 203 dpi resolution across a maximum print width of 72 mm, it delivers clear, consistent output on the move. Bluetooth connectivity keeps workers untethered, while the IP54-rated housing resists dust and water for dependable all-day use. The removable 3250 mAh PowerPrecision+ Li-Ion battery sustains full-shift operation, and a large color LCD display eliminates guesswork around printer status. With 256 MB RAM and 512 MB Flash, support for ZPL, EPL, and CPCL languages, and compatibility with iOS, Android, and Windows, the ZQ620 Plus integrates readily into existing enterprise environments.

Main Features

  • POS: Yes

  • Equipment Format: Mobile

  • Connection: Bluetooth

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4.53 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 32.01"
Maximum Print Width 2.83"
Barcode Symbology Supported
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar (NW-7)
  • Interleaved 2 of 5
  • UPC-A
  • UPC E with 2 and 5 add on
  • EAN-8
  • EAN-13
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • AZTEC
  • MSI PLESSEY
  • FIM
  • POSTNET
  • Data Matrix
  • TLC 39
  • 2 and 5 Digits Add-on
Application/Usage
  • Desktop
  • Industrial
  • Mobile
Features
  • Belt Clip
  • Shoulder Strap
  • Dust Resistant
  • Water Resistant
Mobile Device Printing Yes
Ingress Protection (IP) Rating IP54
Character Sets
  • Universal Font Scaling Technology (UFST)
  • Agfa Monotype
Optional Connectivity
  • Serial (RS-232)
  • USB
  • Ethernet
Print Technology Direct Thermal
Memory
Standard Memory 256 MB
Network & Communication
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ac
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Media Types & Handling
Media Type
  • Gap
  • Black Mark
  • Receipt
  • Label
  • Die-cut Label
  • Tag
  • Linered Media
  • Black Bar
Media Sensor
  • Black Mark Sensor
  • Gap Sensor
Media Thickness 6.50 mil
Maximum Roll Diameter 2.60"
Maximum Label Width 3.13"
Maximum Label Length 32"
Fonts & Emulation
Language Emulation
  • CPCL
  • EPL
  • ZPL
  • ZBI 2.0
Software
Operating System Supported Link-OS
Power Description
Power Source Battery
Battery Information
Battery Capacity 3250 mAh
Environmental Conditions
Operating Temperature -4°F (-20°C) - 122°F (50°C)
Operating Relative Humidity 10% - 90%
Storage Temperature -13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 3"
Width 4.6"
Depth 6.8"
Weight (Approximate) 1.61 lb
Miscellaneous
Platform Supported
  • iOS
  • Android
  • PC
Certifications & Standards

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B


Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5


Safety:

  • CE
  • TUV
  • CSA
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document zq600-series.pdf ZQ62-AUWA0B4-00 Product document zq600-series.pdf MOD-ZQ620-PLUS
