Zebra

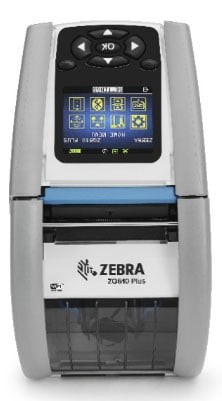

Zebra ZQ610 Plus Mobile Printer Healthcare, 2-inch Wide, 203 dpi, 4.5 ips, Bluetooth 4.x/Wi-Fi, Linered Platen, 0.75" Core

SKU:

ZQ61-HUFA0D4-00

Zebra Mobile Printer ZQ610 Plus Healthcare — compact, mobile thermal printer designed for clinical and point-of-care environments. Delivers reliable on-demand printing for patient wristbands, specimen labels, and mobile workflows. Variant includes 203 dpi print option for clear text and barcodes. Attributes: healthcare linerless max-label-length pos rfid rewinder
Description
ico-plus ico-minus
The Zebra ZQ610 Plus Barcode Label Printer is the premium mobile solution designed to enhance productivity for any business environment. With advanced wireless connectivity, a large color display, and robust battery management, this printer ensures seamless operation throughout the longest shifts. Engineered with durability in mind, it features a lightweight design that’s both comfortable and tough enough to withstand the rigors of daily use. Whether for retail, warehouse, or logistics applications, the ZQ610 Plus is the perfect choice for efficient inventory management and printing needs.
Key Features:
  • Instant Wake-Up: Automatically wakes up when a print job is sent, reducing idle time.
  • Fast Wireless Connections: Supports 802.11ac Wi-Fi and Bluetooth® for reliable and quick data transfer.
  • Large Color Display: User-friendly interface for easy operation and configuration.
  • Business Tough: Engineered for all-day, every-day enterprise use with a durable build.
  • Exceptional Battery Management: High-capacity batteries deliver performance with Power Smart Print Technology™.

Specifications:
  • Model: ZQ610 Plus
  • Print Resolution: 203 dpi
  • Print Speed: Up to 4.5 inches per second
  • Battery: 3250 mAh removable PowerPrecision+ battery
  • Connectivity: 802.11ac, Bluetooth 4.2, USB 2.0
  • Durability: IP54 rating for dust and water resistance
  • Memory: 256 MB RAM, 512 MB Flash
  • Dimensions: 6.73 in. L x 3.6 in. W x 2.85 in. H
  • Weight: 1.33 lbs

Main Features

  • Equipment Format: Desktop

  • Rugged: Commercial

  • Print Speed: 5 in/s

  • Battery Capacity: High Capacity

  • DPI: 203 dpi

  • Connection: Ethernet

  • Optional Upgrades: Clip Mount

  • Max Width: 2 mm

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4.53 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 32.01"
Maximum Print Width 1.89"
Barcode Symbology Supported
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar (NW-7)
  • Interleaved 2 of 5
  • UPC-A
  • UPC E with 2 and 5 add on
  • EAN-8
  • EAN-13
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • AZTEC
  • MSI PLESSEY
  • FIM
  • POSTNET
  • Data Matrix
  • TLC 39
  • 2 and 5 Digits Add-on
Application/Usage
  • Desktop
  • Industrial
  • Mobile
Features
  • Belt Clip
  • Shoulder Strap
  • Dust Resistant
  • Water Resistant
Mobile Device Printing Yes
Ingress Protection (IP) Rating IP54
Character Sets
  • Universal Font Scaling Technology (UFST)
  • Agfa Monotype
Optional Connectivity
  • Serial (RS-232)
  • USB
  • Ethernet
  • Wireless LAN
Print Technology Direct Thermal
Memory
Standard Memory 256 MB
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Media Types & Handling
Media Type
  • Gap
  • Black Mark
  • Receipt
  • Label
  • Die-cut Label
  • Tag
  • Linered Media
  • Black Bar
Media Sensor
  • Black Mark Sensor
  • Gap Sensor
Media Thickness 6.50 mil
Maximum Roll Diameter 2.20"
Maximum Label Width 2.18"
Maximum Label Length 32"
Fonts & Emulation
Language Emulation
  • CPCL
  • EPL
  • ZPL
  • ZBI 2.0
Software
Operating System Supported Link-OS
Power Description
Power Source Battery
Battery Information
Battery Capacity 3250 mAh
Environmental Conditions
Operating Temperature 32°F (0°C) - 122°F (50°C)
Operating Relative Humidity 10% - 90%
Storage Temperature -13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 2.9"
Width 3.6"
Depth 6.7"
Weight (Approximate) 1.32 lb
Miscellaneous
Platform Supported
  • iOS
  • Android
  • PC
Certifications & Standards

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B


Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5


Safety:

  • CE
  • TUV
  • CSA
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document zq600-series.pdf ZQ61-HUFA0D4-00 Product document mod-zq610-plus-hc-zebra-label-printer-datasheet.pdf MOD-ZQ610-PLUS-HC Product document mod-zq610-plus-hc-zebra-label-printer-quick-guide-2.pdf MOD-ZQ610-PLUS-HC Product document mod-zq610-plus-hc-zebra-label-printer-user-manual.pdf MOD-ZQ610-PLUS-HC
