Zebra

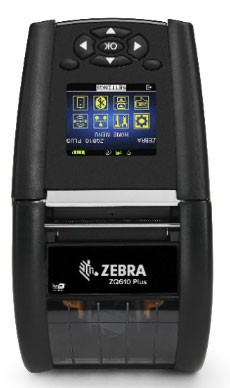

ZQ610 Plus Premium Mobile 2-Inch Wide Standard

SKU:

ZQ61-AUFB004-00

Fitted with a 3250 mAh battery and rated IP54 for dust and water resistance, the Zebra ZQ61-AUFB004-00 is a direct thermal mobile label and receipt printer weighing 1.32 lb and measuring 6.7 in deep by 3.6 in wide by 2.9 in tall. It prints monochrome output at 203 dpi and up to 4.53 in/s across a 1.89-inch print width, with maximum print length reaching 32.01 in and label widths up to 2.18 in on rolls to 2.20 in in diameter and media up to 6.50 mil thick. Gap, black mark, die-cut, linerless, tag and receipt stock are all supported via black mark and gap sensors. Bluetooth and NFC are standard; wireless LAN, USB, Ethernet and serial are optional. ZPL, EPL, CPCL and ZBI 2.0 emulation run on 256 MB of memory under Link-OS, with broad 1D and 2D symbology coverage including PDF417, Data Matrix, QR Code and Aztec. CE, TUV and CSA safety certifications apply, and the unit carries a 1 Year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra ZQ610 Plus is a mobile direct thermal label and receipt printer built for field workers, store associates, and warehouse operators who need reliable on-the-spot printing throughout a full shift. Producing monochrome output at 203 dpi and up to 4.5 in./115 mm per second across a maximum print width of 1.9 in./48 mm, it delivers crisp barcodes, text, and graphics at the point of service. Bluetooth connectivity, NFC, and optional Wireless LAN keep it integrated with iOS, Android, and PC environments, while the 3250 mAh PowerPrecision+ Li-Ion battery sustains continuous operation across long shifts. An IP54-rated housing with drop tolerance to 5 ft./1.52 m to concrete suits the demands of retail, warehousing, transportation and logistics, and healthcare workflows. The Link-OS operating system, ZPL, EPL, and CPCL language emulations, and compatibility with Zebra Print DNA tools simplify deployment and remote management for IT teams.

Main Features

  • POS: Yes

  • Equipment Format: Mobile

  • Connection: Bluetooth

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label/Receipt Print
Print Color Capability Monochrome
Maximum Mono Print Speed 4.53 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Length 32.01"
Maximum Print Width 1.89"
Barcode Symbology Supported
  • Code 39
  • Code 93
  • UCC/EAN 128
  • Code 128
  • Codabar (NW-7)
  • Interleaved 2 of 5
  • UPC-A
  • UPC E with 2 and 5 add on
  • EAN-8
  • EAN-13
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • AZTEC
  • MSI PLESSEY
  • FIM
  • POSTNET
  • Data Matrix
  • TLC 39
  • 2 and 5 Digits Add-on
Application/Usage
  • Desktop
  • Industrial
  • Mobile
Features
  • Belt Clip
  • Shoulder Strap
  • Dust Resistant
  • Water Resistant
Mobile Device Printing Yes
Ingress Protection (IP) Rating IP54
Character Sets
  • Universal Font Scaling Technology (UFST)
  • Agfa Monotype
Optional Connectivity
  • Wireless LAN
  • Serial (RS-232)
  • USB
  • Ethernet
Print Technology Direct Thermal
Memory
Standard Memory 256 MB
Network & Communication
Bluetooth Yes
Near Field Communication (NFC) Yes
Display & Graphics
Display Screen Yes
Media Types & Handling
Media Type
  • Gap
  • Black Mark
  • Receipt
  • Label
  • Die-cut Label
  • Tag
  • Linerless
  • Black Bar
Media Sensor
  • Black Mark Sensor
  • Gap Sensor
Media Thickness 6.50 mil
Maximum Roll Diameter 2.20"
Maximum Label Width 2.18"
Maximum Label Length 32"
Fonts & Emulation
Language Emulation
  • CPCL
  • EPL
  • ZPL
  • ZBI 2.0
Software
Operating System Supported Link-OS
Power Description
Power Source Battery
Battery Information
Battery Capacity 3250 mAh
Environmental Conditions
Operating Temperature -4°F (-20°C) - 122°F (50°C)
Operating Relative Humidity 10% - 90%
Storage Temperature -13°F (-25°C) - 149°F (65°C)
Storage Relative Humidity 10% - 90%
Physical Characteristics
Height 2.9"
Width 3.6"
Depth 6.7"
Weight (Approximate) 1.32 lb
Miscellaneous
Platform Supported
  • iOS
  • Android
  • PC
Certifications & Standards

Emissions:

  • FCC Part 15
  • Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B


Susceptibility:

  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5


Safety:

  • CE
  • TUV
  • CSA
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document zq600-series.pdf ZQ61-AUFB004-00  (PDF)
