Zebra

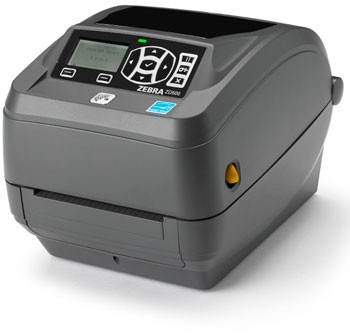

Zebra ZD500 Barcode Printer 203 dpi, 4" max print width, Thermal Transfer, Ethernet, Wi‑Fi, Bluetooth

SKU:

ZD50042-T01A00FZ

Bringing Link-OS environment capabilities to the Desktop, the ZD500 supports powerful applications for intuitive use and management. Delivering top-quality performance in the most demanding applications, it boasts a standard set of advanced features and supports both direct thermal and thermal transfer printing
Description
ico-plus ico-minus

The Zebra ZD500 Barcode Label Printer is designed for optimal performance, offering best-in-class print quality and speed. With its compact design and cutting-edge Link-OS® environment, the ZD500 integrates seamlessly into various operational environments. This versatile printer supports both thermal transfer and direct thermal models while providing quadruple connectivity options, making it ideal for global management. The user-friendly LCD display and ten-button menu simplify setup and operation, ensuring efficiency across a range of applications—from retail to logistics.


Key Features
  • High-resolution print quality at 203 or 300 dpi
  • Quadruple connectivity options: USB, Serial, Ethernet & Wireless
  • Link-OS® enabled for remote management and integration
  • Compact and durable design fits in space-constrained environments
  • User-friendly interface with an LCD display
  • Optional UHF RFID capabilities available

Specifications
  • Print Resolution: 203 dpi / 300 dpi
  • Maximum Print Width: 4"
  • Maximum Print Speed: 6 ips (203 dpi); 4 ips (300 dpi)
  • Memory: 256 MB Flash, 128 MB SDRAM
  • Operating Temperature: 40°F to 105°F
  • Connectivity: USB v2.0, Serial, Parallel, Ethernet, Wireless (optional)
  • Media Handling: Cutter, Dispenser, Label peel and present options
  • Weight: 4.6 lbs / 2.1 kg

Main Features

  • Equipment Format: Desktop

  • Rugged: Commercial

  • Connection: Serial, USB, Ethernet, Bluetooth

  • Optional Upgrades: Cutter, Peeler

  • Printing Technology: Thermal Transfer

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 6 in/s
Maximum Print Resolution (dpi) 203
Maximum Print Width 4.09"
Barcode Symbology Supported
  • Code 11
  • Code 39
  • Code 93
  • Code 128
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • EAN-14
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Codabar
  • GS1 DataBar
  • PDF-417
  • Micro PDF-417
  • Code 49
  • Maxi Code
  • Codablock
  • Data Matrix
  • QR Code
  • Aztec Code
Real Time Clock Yes
Application/Usage Desktop
Features
  • Tear-off
  • Element Energy Equalizer
Print Technology Direct Thermal /Thermal Transfer
Memory
Standard Memory 128 MB
Memory Technology SDRAM
Flash Memory 256 MB
Interfaces/Ports
Parallel Port Yes
Serial Port Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Bluetooth Yes
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n
Display & Graphics
Display Screen Yes
Display Screen Type LCD
Media Types & Handling
Media Type
  • Label
  • Roll Fed
  • Fanfold
  • Die-cut Label
  • Continuous Label
  • Direct Thermal Label
  • Tag Stock
  • Continuous Receipt
  • Wristband
  • Receipt
Media Sensor
  • Transmissive Media Sensor
  • Reflective Media Sensor
  • Adjustable Media Sensor
  • Cover Open Sensor
Media Thickness 12 mil
Maximum Roll Diameter 5"
Maximum Label Width 4.25"
Maximum Label Length 39"
Label Core Size 0.50"
Ribbon Core Size 0.50"
Fonts & Emulation
Language Emulation
  • ZPL II
  • ZPL
  • XML
  • ZBI
Power Description
Power Source
  • AC Supply
  • Power Adapter
Input Voltage
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height 7.5"
Width 7.6"
Depth 10"
Weight (Approximate) 4.90 lb
Miscellaneous
Platform Supported PC
Certifications & Standards Unicode
Energy Star Yes
Country of Origin China
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
