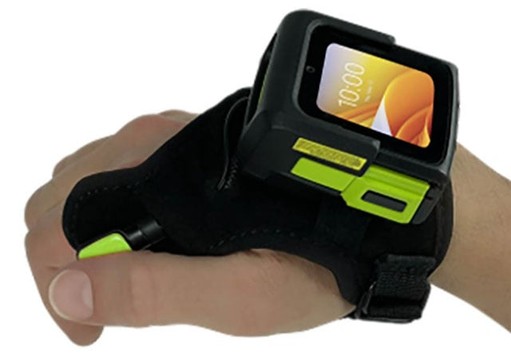

Zebra WS50 Wearable Computer, Back of Hand Mount, SE4770 Imager, 1300mAh Battery, No Proximity, IP65

SKU:

WS5001-0B2J3020ENA

Zebra WS50 Android Wearable Computer (Zebra HandyRugged Wearable) a tough, ergonomic Android wearable designed for reliable hands-free barcode and RFID capture in demanding environments to accelerate task completion and reduce errors. Attributes: form_factor scanner_type rfid data_capture bluetooth ssd operating_system scan_engine_model battery_capacity healthcare gps mdna peeler
Description
ico-plus ico-minus

The Zebra WS50 Mobile Computer is the world's smallest Android enterprise-class wearable device, designed to enhance productivity across various industries including manufacturing, warehousing, retail, and hospitality. With its **rugged** and **modular** design, this lightweight computer offers multiple mounting options—wrist, two fingers, or back of the hand—ensuring versatility for every task worker. It boasts powerful data capture with no host device required, streamlining operations like never before, all while offering a comfortable and ergonomic user experience.


Key Features:

  • **No-host design** for a true converged wearable solution
  • **Modular mounting options** for customizable use
  • **PTT ready** for instant communication and task management
  • **13 MP camera** for barcode scanning and photo documentation
  • **IP65 sealing** offers dust-tight protection and water resistance
  • **Hot-swappable battery** ensures full-shift usage without downtime

Specifications:

  • Performance:
    • CPU: Qualcomm® Snapdragon Wear W4100+
    • Operating System: Android 11 AOSP
    • Memory: 1 GB RAM / 8 GB Flash
  • Dimensions:
    • Wrist: 2.44 in. L x 2.32 in. W x 0.71 in. D
    • Weight: 2.47 oz. (wrist device)
  • Battery:
    • Standard: 800 mAh
    • High Capacity: 1300 mAh
  • Drop Specification:
    • Wrist: 4 ft. drop
    • Converged: 6 ft. drop
  • Camera: 13 MP with flash
  • Connectivity: Wi-Fi, Bluetooth, NFC

Main Features

  • RFID: Yes

  • Operation System: Android

  • Rugged: Industrial

  • IP Rating: IP65

  • Range: Standard Range

  • Connection: NFC, USB

  • Optional Upgrades: Wrist Mount

  • Camera: None

  • Included Battery: Yes

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4770
Image Sensor Type Imager
Image Sensor Resolution 1280 x 800
Light Source Laser
Scanner Range Standard Range
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Features
  • Drop Resistant
  • Push-to-talk
  • Gorilla Glass
Drop Specification

6 ft./1.8 m drop to tile over concrete per MIL-STD 810G across operating temperature

Processor & Chipset
Processor Type Snapdragon
Processor Model SDW429w
Processor Core Quad-core (4 Core)
Processor Speed 2 GHz
Memory
Standard Memory 1 GB
Flash Memory 8 GB
Display & Graphics
Screen Size 2"
Screen Resolution 460 x 460
Touchscreen Information
Touchscreen Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11a/b/g/n/ac/d/h/i/r
Bluetooth Yes
Bluetooth Standard Bluetooth 4.2
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Software
Operating System Android 11
Power Description
Power Source Battery
Battery Information
Battery Capacity 1300 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature 14°F (-10°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Wearable
Rugged Yes
Height 2.5"
Width 2.4"
Depth 1.1"
Weight (Approximate) 4.73 oz
Miscellaneous
Application/Usage
  • Retail
  • Warehouse
  • Logistics
  • Transportation
Ingress Protection (IP) Rating IP65
Warranty
Limited Warranty 1 Year
Additional Warranty Information

Subject to the terms of Zebra's hardware warranty statement, the WS50 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty
