Zebra

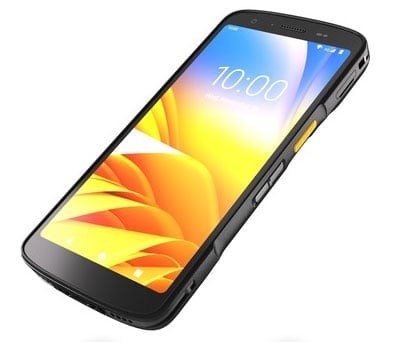

Zebra TC22 Mobile Touch Computer 6" FHD, SE55, 6GB/64GB, Wi-Fi 6E, Android 13, NFC

SKU:

WLMT0-T22B6CBC2-NA

Mobile Computers, Zebra TC22, Wi-Fi 6, SE55, 6 Display, 6GB/64GB, 16MP RFC, 5MP FFC, 2-Pin Back I/O, Standard Battery, NFC, Bluetooth, USB-C, GMS, NA
Description
ico-plus ico-minus
The Zebra TC22 Mobile Computer is the perfect blend of smartphone-style design and enterprise-level functionality, tailored for small to mid-sized businesses. With its large 6-inch FHD+ display, powerful performance, and robust features, it's engineered to enhance productivity and customer service. Offering 5G connectivity, integrated scanning capabilities, and support for contactless payments, the TC22 is built to last, ensuring a superior ROI. Its ergonomic design and exceptional durability set it apart, making it a valuable asset in any operational environment.

Key features:
  • 6-inch FHD+ Display: Easy to read in any lighting.
  • Powerful Performance: Qualcomm® 5430 hex-core CPU and up to 8GB RAM.
  • 5G & Wi-Fi 6E: Fast and reliable connectivity indoors and outdoors.
  • Durable Design: IP68 rated and drop-tested for longevity.
  • Contactless Payment Ready: Integrates seamlessly with POS systems.


Specifications:
  • Dimensions: 6.5 in. L x 3.0 in. W x 0.49 in. D
  • Weight: 8.32 oz/236 g
  • Battery: Standard 3800 mAh; Extended 5200 mAh
  • Memory: 6 GB RAM/64 GB Flash; 8 GB RAM/128 GB Flash
  • Operating System: Android 16
  • Connectivity: 5G, Wi-Fi 6E, Bluetooth 5.2
  • Scanning: SE4710 & SE55 1D/2D scan engines
  • Cameras: Rear 16 MP; Front 5 MP
  • Sealing: IP68 and IP65 rating

Main Features

  • Operation System: Android

  • Rugged: Commercial

  • RAM/FLASH: 6GB / 64 GB

  • Battery Capacity: Standard

  • IP Rating: IP68

  • GPS: Yes

  • Range: Advance Range

  • Connection: Bluetooth, USB

  • Pin: 2

  • Camera: 16MP Rear Facing Camera + 5MP Front Facing Camera

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE5500
Image Sensor Type Imager
Scanner Range Long Range
Google Mobile Services (GMS) Yes
Sensor Type
  • Accelerometer
  • Gyroscope
  • Proximity
  • Magnetometer
Brightness 450 Nit
Features
  • Water Resistant
  • Drop Resistant
  • Gorilla Glass
  • Push-to-talk
Drop Specification

Multiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective boot per MIL-STD-810H Multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp (-10° C to 50° C/14° F to 122° F) per MIL-STD 810H
Processor & Chipset
Processor Model 5430
Processor Core Hexa-core (6 Core)
Processor Speed 2.10 GHz
Memory
Standard Memory 6 GB
Flash Memory 64 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 6"
Screen Resolution 1080 x 2160
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Keyboard/Keypad
Buttons & Keys

Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.2
Near Field Communication (NFC) Yes
GPS Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 5 Megapixel
Rear Camera Yes
Rear Camera Resolution 16 Megapixel
Software
Operating System Android
Upgradable Operating System Android 16
Power Description
Power Source Battery
Battery Information
Battery Capacity 3800 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature 14°F (-10°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Phone-size
Rugged Yes
Width 3"
Depth 0.5"
Length 6.5"
Weight (With Battery) 0.29 oz
Miscellaneous
Package Contents
  • TC22 Handheld Terminal
  • Standard Battery
    		•
    Application/Usage
    • Retail
    • Courier Service
    • Field Sales/Service
    • Warehouse
    Ingress Protection (IP) Rating
    • IP68
    • IP65
    TAA Compliant Yes
    Environmentally Friendly Yes
    Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Warranty
    Limited Warranty 1 Year
    Documents
    ico-plus ico-minus
    Product document tc22-tc27.pdf WLMT0-T22B6CBC2-NA Product document tc22-tc27.pdf MOD-TC22
