Zebra

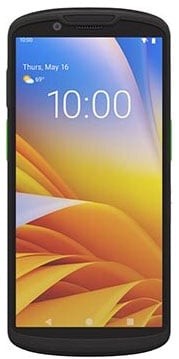

Zebra TC53e Mobile Computer Wi-Fi 6E, 6GB RAM/64GB ROM, SE4720 Imager, 16MP RFC, 8MP FFC, Warm Swap

SKU:

TC530E-0T1E1B1B00-NA

Zebra TC53 Mobile Computer — Zebra TC53e Rugged Android Handheld: A ruggedized Android mobile computer built to withstand harsh conditions while delivering reliable scanning, secure connectivity, and enterprise management for warehouse, transportation, and field applications. Attributes: SSD, RFID, GPS, Healthcare, Pin.
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus

The cool, grippy feel of the Zebra TC53e’s rugged shell sets the tone immediately. This handheld mobile computer is built around enterprise-grade Android performance and a phone-size form factor that fits naturally into fast-moving workflows. It is designed for warehouse, retail, logistics, manufacturing, and field service teams that need reliable data capture and dependable wireless connectivity in demanding environments. With a 6.0-inch outdoor capacitive touchscreen, advanced 1D/2D scanning, and rugged protection that exceeds MIL-STD-810H, the TC53e helps users work efficiently indoors or outside. Its balanced design, enterprise connectivity, and warm-swap battery support make it a practical choice for productivity-focused operations.

Key Features

  • Rugged mobility: Built for demanding daily use with IP65/IP68 protection and durability that exceeds MIL-STD-810H.
  • Outdoor display: The 6.0-inch capacitive touchscreen is optimized for visibility and supports glove and wet-touch use.
  • Fast data capture: The SE4720 2D area imager supports efficient 1D/2D barcode scanning for accurate workflows.
  • Enterprise connectivity: Wi-Fi 6E, Bluetooth 5.3, BLE, NFC, USB-A, and USB-C help keep operations connected.
  • Productive imaging: Includes a 16MP rear camera and 8MP front camera for versatile visual documentation.
  • Shift-ready power: The 4680mAh BLE battery with warm-swap support helps reduce downtime.

Specifications

  • Product Name: Zebra TC53e Rugged Android Handheld
  • Brand: Zebra
  • Form Factor: Handheld / Phone-size
  • Operating System: Android (with Google Mobile Services)
  • Processor: Qualcomm Snapdragon 660
  • CPU Cores: 8 cores
  • RAM: 6 GB
  • Flash Storage: 64 GB
  • Display Size: 6.0 in
  • Display Resolution: 1080 x 2160 px
  • Display Type: Outdoor capacitive touchscreen (glove and wet-touch capable)
  • Scanner Type: 2D area imager (SE4720 standard range)
  • Scanner Range: Short range (standard); optional long-range engine available
  • Rear Camera Resolution: 16 MP
  • Front Camera Resolution: 8 MP
  • Battery Capacity: 4680 mAh
  • Battery Features: Warm-swap, Bluetooth Low Energy (BLE) battery
  • Connectivity: Wi-Fi 6E, Bluetooth 5.3, BLE, NFC, USB-A, USB-C
  • Ingress Protection Rating: IP65, IP68
  • Durability Standard: Rugged; exceeds MIL-STD-810H
  • Weight: 0.62 lb
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4720
Image Sensor Type Imager
Scanner Range Long Range
Google Mobile Services (GMS) Yes
Wireless Charging Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Proximity
  • Gyroscope
Brightness 600 Nit
Features
  • Push-to-talk
  • Gorilla Glass
  • Drop Resistant
  • Corning Gorilla Glass
  • Multi-color LED Notification
Drop Specification
  • Exceeds per MIL-STD-810H: 8 ft./2.4 m to concrete with the boot; 6 ft./1.8 m to tile over concrete stand alone terminal; Enterprise drop standard: 6 ft./1.8 m to concrete with the boot across temperature exceeding MIL-STD-810H; 5 ft./1.5 m to tile over concrete across temperature exceeding MIL-STD-810H
Processor & Chipset
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 64 GB
Memory Card Supported
  • microSD
  • UFS
Display & Graphics
Screen Size 6"
Screen Mode Full HD+
Screen Resolution 1080 x 2160
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 8 Megapixel
Rear Camera Yes
Rear Camera Resolution 16 Megapixel
Software
Operating System Android
Upgradable Operating System Android 17
Power Description
Power Source Battery
Battery Information
Battery Capacity 4680 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Phone-size
Rugged Yes
Height 0.7"
Width 3"
Length 6.5"
Weight (With Battery) 9.95 oz
Miscellaneous
Package Contents
  • TC53E Handheld Terminal
  • Battery
Application/Usage
  • Retail
  • Field Sales/Service
  • Inventory Management
  • Courier Service
  • Proof of Delivery/Pickup (Signature & Photo)
Ingress Protection (IP) Rating
  • IP65
  • IP68
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document tc53e-tc53e-rfid-tc58e.pdf TC530E-0T1E1B1B00-NA
