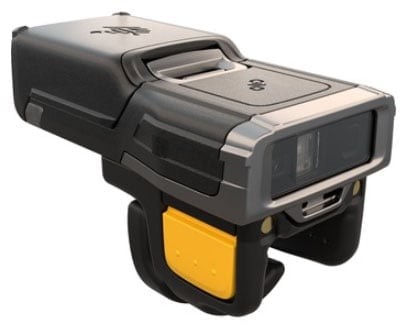

Zebra RS6100 Wearable Scanner SE55, Bluetooth, 2D

SKU:

RS61B0-KNNTZWR

Bluetooth scanner, 2D, imager (SE5500), Bluetooth, order separately: battery, charging cradle, Trigger
Description
ico-plus ico-minus

Experience unparalleled efficiency with the Zebra RS6100 Bluetooth Wearable Scanner. Engineered for maximum versatility, this compact and lightweight scanner captures 1D and 2D barcodes from near to 40 feet away, performing flawlessly in challenging conditions. With five interchangeable wearing options, you can find the perfect fit for any task. Designed for extreme environments, the RS6100 thrives regardless of weather conditions. Its removable battery system and seamless Bluetooth pairing ensure uninterrupted productivity, making it the ideal choice for any fast-paced operation.


Key features:

  • Compact and lightweight - Weighing just over 2 ounces.
  • Advanced scanning - Captures barcodes from 2 inches to 40 feet.
  • Versatile wearing options - Choose from five styles for comfortable use.
  • Durable design - Tested for extreme conditions, including cold and heat.
  • Instant pairing - Easy NFC connectivity with compatible devices.

Specifications:

  • Dimensions: 2.62 in. L x 1.29 in. W x 0.83 in. D
  • Weight: 2.47 oz. (with standard battery)
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Scanning Range: Up to 40 ft.
  • Power: 480 mAh standard battery, removable and rechargeable
  • Drop Specification: Survives drops from 6 ft./1.8 m
  • Supported 1D/2D Barcodes: Includes Code 39, PDF417, QR Code, Data Matrix
  • Warranty: 1 year from the date of shipment

Main Features

  • Rugged: Industrial

  • IP Rating: IP65

  • Connection: Bluetooth

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codebar/NW7
  • Code 11
  • MSI
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GSI DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes

OCR Symbologies:

  • OCR-A
  • OCR-B
Scan Engine Model SE55
Light Source Laser
Image Sensor Type Imager
Scan Mode Trigger
Scanner Range Long Range
Field of View (Horizontal) 37°
Field of View (Vertical) 21°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 107639 lux
Drop Specification

Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 100 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 100 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 6.7 mil
Illumination Type LED
Illumination Color White
Network & Communication
Bluetooth Yes
Battery Information
Battery Included No
Environmental Conditions
Operating Temperature 122°F (50°C)
Storage Temperature -40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Wearable
Rugged Yes
Width 1.3"
Depth 0.8"
Length 2.6"
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage
  • Warehouse
  • Distribution
  • Manufacturing
  • Transportation
  • Logistics
  • Retail
Environmentally Friendly Yes
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
