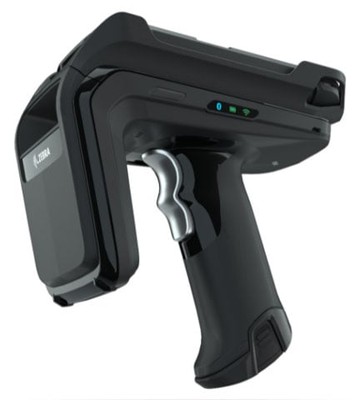

Zebra RFD40 Premium Plus RFID Sled Standard Range Circular Polarized, SE4100 Imager, 7000mAh Battery, Bluetooth 5.3, Wi‑Fi 6, IP54

The Zebra RFID Sled is a professional UHF handheld sled designed to add enterprise-grade RFID capability to compatible mobile devices for fast inventory, asset tracking and item-finding workflows. Built around Zebra’s proven RFID radio technology, the sled delivers very high tag read rates and a nominal read range suited to retail, warehouse, logistics, field service and healthcare environments. Its rugged construction, IP54 ingress protection, multiple-drop resistance and a removable 7000 mAh Li‑Ion battery support long shifts and demanding daily use, while modern wireless options such as Bluetooth 5.3, Wi‑Fi 6 and USB‑C tethering enable flexible integration into existing mobile ecosystems and simplify deployment and device management.

Key Features

• High-speed RFID capture: Industry-grade read performance (1,100–1,300+ tags/sec depending on variant) accelerates cycle counts and bulk reads to reduce task time.
• Long and consistent read range: Standard circularly polarized antenna delivers nominal read ranges around 6 m (≈20+ ft on long-range variants) for efficient item finding across larger areas.
• Extended battery life: Removable quick‑release 7000 mAh Li‑Ion battery provides sustained operation for extended shifts and supports hot‑swap or quick replacement workflows.
• Modern connectivity: Bluetooth 5.3, Wi‑Fi 6, NFC tap‑to‑pair and USB‑C / tethered pinned connectors enable versatile connections and streamlined pairing with Zebra mobile computers.
• Rugged, enterprise-ready design: IP54 ingress protection, multiple 5 ft / 1.5 m drops to concrete and tumble resistance support reliable daily use in commercial and industrial environments.

Specifications

• Brand: Zebra
• Product Family: RFD40 RFID Sled (EdgePro series)
• Form Factor: Handheld / gun sled
• Color: Midnight Black
• Weight: 19.08 oz (541 g)
• Dimensions: 5.9 x 3.3 x 6.6 in (84 x 166.5 x 151 mm / 15.1 x 8.4 x 16.65 cm for some variants)
• RFID Type: UHF (RAIN)
• RFID Frequency Range: 865–868 MHz or 902–928 MHz (variant dependent)
• Fastest Read Rate / Tag Read Rate: 1300+ tags/sec (typical high‑performance variants)
• Nominal Read Range: ~19.7+ ft / ~6+ m (standard) — 20+ ft (long‑range variants)
• Antenna: Standard range circularly polarized
• Maximum Transmit Power (EIRP): 0–30 dBm
• Standards Supported: EPC Class 1 Gen 2; EPC Gen2 V2
• Battery Capacity: 7000 mAh
• Battery Chemistry / Technology: Lithium‑ion / PowerPrecision+ (variant dependent)
• Host Connectors / Interface: eConnex (electronic 8‑pin), USB‑C, pinned tethered connector
• Wireless Connectivity: Bluetooth 5.3, Wi‑Fi 6, NFC (tap‑to‑pair on supported variants)
• Ingress Protection Rating: IP54
• Drop Specification: Multiple 5 ft / 1.5 m drops to concrete
• Tumble Specification: 500 cycles (0.5 m)
• Operating Humidity: 5–85%
• Operating Temperature Range: -10 to 50 °C (14 to 122 °F)
• Batch Mode Capacity: 40,000 tags (select variants)
• Supported Operating Systems: Android, iOS, Windows (select variants)
