Zebra

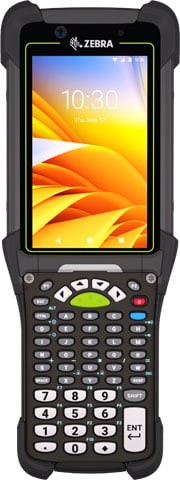

Zebra MC94, SE4770, Wi-Fi, 5G, Bluetooth, 6GB RAM/128GB, 58 Key, GMS

SKU:

MC945A-3G1J6HSS-NA

Configured with 6 GB RAM and 128 GB of flash storage, the Zebra MC945A-3G1J6HSS-NA is a gun-form handheld terminal running Android with an upgrade path to Android 17 and powered by a 2.40 GHz octa-core QCM4490 processor. Its SE4770 imager reads 1D and 2D barcodes, backed by dual-SIM support — nano SIM and eSIM — for simultaneous private and public 5G LTE connections alongside IEEE 802.11 a/b/g/n/ac/ax Wi-Fi 6, Bluetooth 5.3 BLE, NFC, and GPS with Galileo/GLONASS. The 4.3-inch WVGA touchscreen at 800 x 480 pairs with a 58-key alphanumeric keypad, and the removable 7000 mAh Li-Ion battery at 3.60 V supports sustained field use across an operating range of -4 F (-20 C) to 122 F (50 C). IP65 and IP68 ratings combine with MIL-STD-810H drop performance of 12 ft to concrete, making the unit suited to warehouses, cold storage, manufacturing, ports, and yard operations. The 1.64 lb chassis measures 9.4 in long and carries RoHS compliance and a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MC9400 Ultra-Rugged Companion is a family of purpose-built handheld mobile computers designed for demanding enterprise workflows in warehousing, distribution, manufacturing, cold‑chain and field service. Offered in gun/grip and pistol‑grip form factors with rugged sealing and enterprise-class wireless, this series combines high-performance barcode imaging, ergonomic keypads and long‑life batteries to reduce downtime and accelerate data capture. Variants support extended- and standard-range imagers, Wi‑Fi 6E, NFC and Bluetooth connectivity, UFS flash and Android with Google Mobile Services, enabling secure, manageable deployments that deliver fast scans, reliable wireless synchronization and all‑shift operation for mission-critical mobile applications.

Key Features

  • Rugged reliability: IP65/IP68 sealing and enhanced drop specifications provide dependable operation in harsh industrial, outdoor and cold‑storage environments.
  • Flexible data capture: Options with SE58 extended‑range imagers or SE4770 standard‑range imagers cover in‑hand to long‑distance barcode scanning needs.
  • Enterprise connectivity: Wi‑Fi 6E, NFC, LAN and Bluetooth support secure, high‑throughput communication and seamless integration with back‑end systems.
  • Ergonomic input options: Gun/trigger and pistol grip designs with keypad choices (29, 43 or 53 keys) and a 4.3‑inch touchscreen speed routine data entry and scanning.
  • All‑shift power: High‑capacity battery options (including 5000 mAh and 7000 mAh) and smart battery features sustain extended field use and reduce interruptions.

Specifications

  • Brand: Zebra
  • Product Type: Mobile computer with keypad
  • Form Factor: Gun/grip or pistol/grip handheld
  • Operating System: Android (with Google Mobile Services / Android 17 on some variants)
  • Display Size: 4.3 in
  • Display Protection: Gorilla Glass / Corning Gorilla Glass
  • Imager / Scan Engine: SE58 (extended range) / SE4770
  • Scan Range: Standard and extended options (up to approx. 100 ft / 30.5 m on extended models)
  • RAM: 6 GB
  • Internal Storage: 128 GB UFS
  • Storage Type: UFS
  • Wireless: Wi‑Fi 6E, Bluetooth (including Bluetooth 5.3 on some models), NFC
  • LAN / Connectivity: Ethernet / LAN supported on select models
  • Keypad Options: 29‑key, 43‑key or 53‑key layouts
  • Battery Capacity: 5000 mAh / 7000 mAh
  • Battery Type: PowerPrecision+ / Rechargeable Li‑Ion
  • Processor: Qualcomm 4490 / Qualcomm Octa‑Core 2.4 GHz
  • Ingress Protection Rating: IP65 / IP68
  • Camera (front + rear): 8 MP front and 16 MP rear on supported variants
  • Weight: 743 g (varies by configuration)
  • Dimensions (L x W x H): 240 x 88 x 189 mm
  • Additional: MicroSD slot (on select models), vibrator/haptic feedback, heated display option for cold‑storage variants

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Range: Standard Range

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4770
Image Sensor Type Imager
Light Source Laser
Scanner Range Standard Range
Google Mobile Services (GMS) Yes
Sensor Type
  • Accelerometer
  • Motion Sensor
  • Gyroscope
  • eCompass
  • Light Sensor
  • Magnetometer
Multi-SIM Supported Yes
Number of SIM Card Supported 2
SIM Size Supported Nano/eSIM
Features
  • Corning Gorilla Glass
  • Push-to-talk
  • Non Incendive
  • Drop Resistant
  • Vibration Alert
  • Multi-color LED Notification
  • Dual SIM
  • VoIP
  • eSIM
Drop Specification
  • Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete;
  • Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H
Processor & Chipset
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 128 GB
Memory Card Supported
  • microSD
  • UFS
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 58
Keyboard Type Alphanumeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc (Wi-Fi 6)
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Cellular Data Connectivity Technology
  • 2G
  • 3G
  • 4G
  • 5G
  • LTE
GPS Yes
Global Navigation Satellite System (GNSS) Supported Galileo/GLONASS
Interfaces/Ports
USB Yes
USB Type-C Yes
Software
Operating System Android
Upgradable Operating System Android 17
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 7.4"
Width 3.5"
Length 9.4"
Weight (With Battery) 1.64 lb
Miscellaneous
Package Contents
  • MC9450 Handheld Terminal
  • 7000 mAh Battery
Application/Usage
  • Warehouse
  • Distribution
  • Cold Storage
  • Inventory Management
  • Manufacturing
  • Safety Testing
  • Retail
  • Backroom Inventory Management
  • Store Receiving
  • Port
  • Yard
Ingress Protection (IP) Rating
  • IP65
  • IP68
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
