Zebra

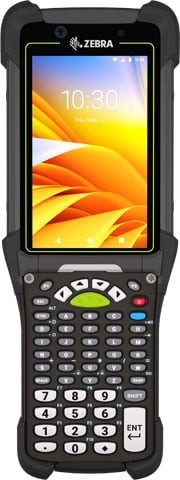

Zebra MC94, SE4770, Camera, Wi-Fi, Bluetooth, 6GB RAM/128GB, 53 Key VT, Non Incendive, GMS

SKU:

MC9401-0G1P6ENS-FT

Configured as a non-incendive, Wi-Fi-only gun-grip unit, the Zebra MC9401-0G1P6ENS-FT pairs 6 GB RAM and 128 GB flash storage with an SE4770 imager capable of reading 1D and 2D barcodes to 100.07 ft, all running on an octa-core QCM4490 processor at 2.40 GHz. The 4.3-inch WVGA LED touchscreen resolves at 800 x 480 and is protected by Corning Gorilla Glass, while the 53-key layout adds a physical trigger scan button and keypad scan button for scan-intensive workflows. Bluetooth 5.3 BLE and NFC round out wireless connectivity, and an 8 Megapixel front camera alongside a 16 Megapixel rear camera support documentation tasks. The removable 7000 mAh Li-Ion battery at 3.60 V powers the device across an operating range of -4 degrees F (-20 degrees C) to 122 degrees F (50 degrees C), and the chassis survives drops to 12 ft. (3.65 m) onto concrete per MIL-STD-810H with IP65 and IP68 ingress protection. Android with GMS, upgradable to Android 17, microSD and UFS expansion, TAA compliance, and RoHS conformance are included; a 1-year limited warranty applies.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MC9400 Ultra-Rugged Companion is a family of purpose-built handheld mobile computers designed for demanding enterprise workflows in warehousing, distribution, manufacturing, cold‑chain and field service. Offered in gun/grip and pistol‑grip form factors with rugged sealing and enterprise-class wireless, this series combines high-performance barcode imaging, ergonomic keypads and long‑life batteries to reduce downtime and accelerate data capture. Variants support extended- and standard-range imagers, Wi‑Fi 6E, NFC and Bluetooth connectivity, UFS flash and Android with Google Mobile Services, enabling secure, manageable deployments that deliver fast scans, reliable wireless synchronization and all‑shift operation for mission-critical mobile applications.

Key Features

  • Rugged reliability: IP65/IP68 sealing and enhanced drop specifications provide dependable operation in harsh industrial, outdoor and cold‑storage environments.
  • Flexible data capture: Options with SE58 extended‑range imagers or SE4770 standard‑range imagers cover in‑hand to long‑distance barcode scanning needs.
  • Enterprise connectivity: Wi‑Fi 6E, NFC, LAN and Bluetooth support secure, high‑throughput communication and seamless integration with back‑end systems.
  • Ergonomic input options: Gun/trigger and pistol grip designs with keypad choices (29, 43 or 53 keys) and a 4.3‑inch touchscreen speed routine data entry and scanning.
  • All‑shift power: High‑capacity battery options (including 5000 mAh and 7000 mAh) and smart battery features sustain extended field use and reduce interruptions.

Specifications

  • Brand: Zebra
  • Product Type: Mobile computer with keypad
  • Form Factor: Gun/grip or pistol/grip handheld
  • Operating System: Android (with Google Mobile Services / Android 17 on some variants)
  • Display Size: 4.3 in
  • Display Protection: Gorilla Glass / Corning Gorilla Glass
  • Imager / Scan Engine: SE58 (extended range) / SE4770
  • Scan Range: Standard and extended options (up to approx. 100 ft / 30.5 m on extended models)
  • RAM: 6 GB
  • Internal Storage: 128 GB UFS
  • Storage Type: UFS
  • Wireless: Wi‑Fi 6E, Bluetooth (including Bluetooth 5.3 on some models), NFC
  • LAN / Connectivity: Ethernet / LAN supported on select models
  • Keypad Options: 29‑key, 43‑key or 53‑key layouts
  • Battery Capacity: 5000 mAh / 7000 mAh
  • Battery Type: PowerPrecision+ / Rechargeable Li‑Ion
  • Processor: Qualcomm 4490 / Qualcomm Octa‑Core 2.4 GHz
  • Ingress Protection Rating: IP65 / IP68
  • Camera (front + rear): 8 MP front and 16 MP rear on supported variants
  • Weight: 743 g (varies by configuration)
  • Dimensions (L x W x H): 240 x 88 x 189 mm
  • Additional: MicroSD slot (on select models), vibrator/haptic feedback, heated display option for cold‑storage variants

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Gun Grip

  • Range: Standard Range

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4770
Image Sensor Type Imager
Light Source Laser
Scanner Range Standard Range
Scanning Distance 100.07 ft
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • eCompass
  • Accelerometer
  • Gyroscope
Features
  • Push-to-talk
  • Water Resistant
  • VoIP
  • Corning Gorilla Glass
  • Vibration Alert
  • Non Incendive
  • Gorilla Glass
  • Multi-color LED Notification
Drop Specification
  • Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete
  • Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H
Processor & Chipset
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 128 GB
Memory Card Supported
  • microSD
  • UFS
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 53
Buttons & Keys
  • Trigger scan button; keypad scan button
Network & Communication
Wireless LAN Yes
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Camera
Front Camera Yes
Front Camera Resolution 8 Megapixel
Rear Camera Yes
Rear Camera Resolution 16 Megapixel
Software
Operating System Android
Upgradable Operating System Android 17
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 7.4"
Width 3.5"
Length 9.4"
Weight (With Battery) 1.64 lb
Miscellaneous
Package Contents
  • MC9400 Handheld Terminal
  • Battery
Application/Usage
  • Warehouse
  • Distribution
  • Logistics
  • Manufacturing
  • Retail
  • Industrial
  • Order Picking
  • Inventory Management
  • Asset Tracking
  • Port
  • Yard
Ingress Protection (IP) Rating
  • IP65
  • IP68
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
