Zebra

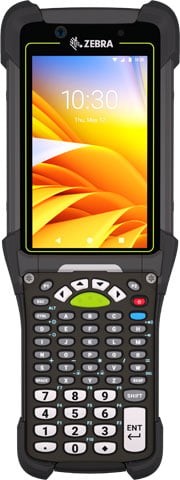

Zebra MC94, SE58, Wi-Fi, Bluetooth, 6GB RAM/128GB, 43 Key, Freezer, GMS

SKU:

MC9401-0G1M6CCS-NA

Rated for freezer-to-floor operation across -22°F (-30°C) to 122°F (50°C), the Zebra MC9401-0G1M6CCS-NA is a gun-grip handheld terminal built around the SE58 Extended Range Scan Engine, which reads 1D and 2D barcodes from in-hand to over 100 ft. (30.5 m) using a laser light source. It carries 6 GB of RAM and 128 GB of flash storage, backed by a microSD expansion slot, and runs on a Snapdragon QCM4490 octa-core processor at 2.40 GHz. Wireless connectivity covers IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 BLE, and NFC, with a USB Type-C port for wired connections. The 4.3-inch WVGA touchscreen with Corning Gorilla Glass resolves at 800 x 480, and a 43-key numeric keypad supports data-intensive workflows. The 5000 mAh removable Li-Ion battery powers Android 13 — upgradable to Android 17 — with Google Mobile Services included. Drop-rated to 7 ft. (2.1 m) onto concrete and sealed to IP65 and IP68, the 1.64 lb unit suits warehouse, cold storage, port, yard and distribution environments and carries a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MC9400 Ultra-Rugged Companion is a family of purpose-built handheld mobile computers designed for demanding enterprise workflows in warehousing, distribution, manufacturing, cold‑chain and field service. Offered in gun/grip and pistol‑grip form factors with rugged sealing and enterprise-class wireless, this series combines high-performance barcode imaging, ergonomic keypads and long‑life batteries to reduce downtime and accelerate data capture. Variants support extended- and standard-range imagers, Wi‑Fi 6E, NFC and Bluetooth connectivity, UFS flash and Android with Google Mobile Services, enabling secure, manageable deployments that deliver fast scans, reliable wireless synchronization and all‑shift operation for mission-critical mobile applications.

Key Features

  • Rugged reliability: IP65/IP68 sealing and enhanced drop specifications provide dependable operation in harsh industrial, outdoor and cold‑storage environments.
  • Flexible data capture: Options with SE58 extended‑range imagers or SE4770 standard‑range imagers cover in‑hand to long‑distance barcode scanning needs.
  • Enterprise connectivity: Wi‑Fi 6E, NFC, LAN and Bluetooth support secure, high‑throughput communication and seamless integration with back‑end systems.
  • Ergonomic input options: Gun/trigger and pistol grip designs with keypad choices (29, 43 or 53 keys) and a 4.3‑inch touchscreen speed routine data entry and scanning.
  • All‑shift power: High‑capacity battery options (including 5000 mAh and 7000 mAh) and smart battery features sustain extended field use and reduce interruptions.

Specifications

  • Brand: Zebra
  • Product Type: Mobile computer with keypad
  • Form Factor: Gun/grip or pistol/grip handheld
  • Operating System: Android (with Google Mobile Services / Android 17 on some variants)
  • Display Size: 4.3 in
  • Display Protection: Gorilla Glass / Corning Gorilla Glass
  • Imager / Scan Engine: SE58 (extended range) / SE4770
  • Scan Range: Standard and extended options (up to approx. 100 ft / 30.5 m on extended models)
  • RAM: 6 GB
  • Internal Storage: 128 GB UFS
  • Storage Type: UFS
  • Wireless: Wi‑Fi 6E, Bluetooth (including Bluetooth 5.3 on some models), NFC
  • LAN / Connectivity: Ethernet / LAN supported on select models
  • Keypad Options: 29‑key, 43‑key or 53‑key layouts
  • Battery Capacity: 5000 mAh / 7000 mAh
  • Battery Type: PowerPrecision+ / Rechargeable Li‑Ion
  • Processor: Qualcomm 4490 / Qualcomm Octa‑Core 2.4 GHz
  • Ingress Protection Rating: IP65 / IP68
  • Camera (front + rear): 8 MP front and 16 MP rear on supported variants
  • Weight: 743 g (varies by configuration)
  • Dimensions (L x W x H): 240 x 88 x 189 mm
  • Additional: MicroSD slot (on select models), vibrator/haptic feedback, heated display option for cold‑storage variants

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Gun Grip

  • Range: Extended Range

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE58
Image Sensor Type Imager
Light Source Laser
Scanner Range Extended Range
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • eCompass
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Features
  • Corning Gorilla Glass
  • VoIP
  • Push-to-talk
Drop Specification
  • 7 ft. (2.1 m) to concrete (-30°C to 50°C) exceeding MIL-STD810H
Processor & Chipset
Processor Type Snapdragon
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 128 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 43
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Software
Operating System Android 13
Upgradable Operating System Android 17
Power Description
Power Source Battery
Battery Information
Battery Capacity 5000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Removable Battery Yes
Environmental Conditions
Operating Temperature -22°F (-30°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 7.4"
Width 3.5"
Length 9.4"
Weight (With Battery) 1.64 lb
Miscellaneous
Package Contents
  • MC9400 Handheld Terminal
  • Battery
Application/Usage
  • Warehouse
  • Distribution
  • Logistics
  • Cold Storage
  • Inventory Management
  • Manufacturing
  • Safety Testing
  • Retail
  • Store Receiving
  • Port
  • Yard
Ingress Protection (IP) Rating
  • IP65
  • IP68
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
