Zebra

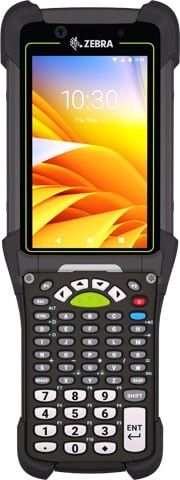

Zebra MC94, SE4770, Wi-Fi, Bluetooth, 6GB RAM/128GB, 43 Key, GMS

SKU:

MC9401-0G1J6CSS-NA

Fitted with the SE4770 standard-range imager and 6 GB RAM paired with 128 GB of flash storage, the Zebra MC9401-0G1J6CSS-NA is a gun-grip handheld terminal running Android with GMS and upgradable to Android 17 on an octa-core QCM4490 processor at 2.40 GHz. The 7000 mAh Li-Ion removable battery supports extended shift operation, while IP65/IP68 sealing and a drop rating that exceeds MIL-STD-810H at 12 ft./3.65 m to concrete across -20°C to 50°C cover demanding warehouse, distribution, cold storage, port, and manufacturing environments. Wireless connectivity runs across IEEE 802.11 a/b/g/n/ac/ax and Bluetooth 5.3 BLE, with NFC also included. The 4.3-inch WVGA LED touchscreen displays at 800 x 480, and the 43-key numeric keypad is protected by Corning Gorilla Glass. Sensors include accelerometer, gyroscope, eCompass, magnetometer, motion, and light. The unit measures 9.4 in long, 3.5 in wide, and 7.4 in tall, weighs 1.64 lb with battery, and is RoHS compliant, backed by a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MC9400 Ultra-Rugged Companion is a family of purpose-built handheld mobile computers designed for demanding enterprise workflows in warehousing, distribution, manufacturing, cold‑chain and field service. Offered in gun/grip and pistol‑grip form factors with rugged sealing and enterprise-class wireless, this series combines high-performance barcode imaging, ergonomic keypads and long‑life batteries to reduce downtime and accelerate data capture. Variants support extended- and standard-range imagers, Wi‑Fi 6E, NFC and Bluetooth connectivity, UFS flash and Android with Google Mobile Services, enabling secure, manageable deployments that deliver fast scans, reliable wireless synchronization and all‑shift operation for mission-critical mobile applications.

Key Features

  • Rugged reliability: IP65/IP68 sealing and enhanced drop specifications provide dependable operation in harsh industrial, outdoor and cold‑storage environments.
  • Flexible data capture: Options with SE58 extended‑range imagers or SE4770 standard‑range imagers cover in‑hand to long‑distance barcode scanning needs.
  • Enterprise connectivity: Wi‑Fi 6E, NFC, LAN and Bluetooth support secure, high‑throughput communication and seamless integration with back‑end systems.
  • Ergonomic input options: Gun/trigger and pistol grip designs with keypad choices (29, 43 or 53 keys) and a 4.3‑inch touchscreen speed routine data entry and scanning.
  • All‑shift power: High‑capacity battery options (including 5000 mAh and 7000 mAh) and smart battery features sustain extended field use and reduce interruptions.

Specifications

  • Brand: Zebra
  • Product Type: Mobile computer with keypad
  • Form Factor: Gun/grip or pistol/grip handheld
  • Operating System: Android (with Google Mobile Services / Android 17 on some variants)
  • Display Size: 4.3 in
  • Display Protection: Gorilla Glass / Corning Gorilla Glass
  • Imager / Scan Engine: SE58 (extended range) / SE4770
  • Scan Range: Standard and extended options (up to approx. 100 ft / 30.5 m on extended models)
  • RAM: 6 GB
  • Internal Storage: 128 GB UFS
  • Storage Type: UFS
  • Wireless: Wi‑Fi 6E, Bluetooth (including Bluetooth 5.3 on some models), NFC
  • LAN / Connectivity: Ethernet / LAN supported on select models
  • Keypad Options: 29‑key, 43‑key or 53‑key layouts
  • Battery Capacity: 5000 mAh / 7000 mAh
  • Battery Type: PowerPrecision+ / Rechargeable Li‑Ion
  • Processor: Qualcomm 4490 / Qualcomm Octa‑Core 2.4 GHz
  • Ingress Protection Rating: IP65 / IP68
  • Camera (front + rear): 8 MP front and 16 MP rear on supported variants
  • Weight: 743 g (varies by configuration)
  • Dimensions (L x W x H): 240 x 88 x 189 mm
  • Additional: MicroSD slot (on select models), vibrator/haptic feedback, heated display option for cold‑storage variants

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Gun Grip

  • Range: Standard Range

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scan Engine Model SE4770
Image Sensor Type Imager
Light Source Laser
Scanner Range Standard Range
Google Mobile Services (GMS) Yes
Sensor Type
  • Accelerometer
  • Motion Sensor
  • Gyroscope
  • eCompass
  • Light Sensor
  • Magnetometer
Features
  • Corning Gorilla Glass
  • Push-to-talk
  • Non Incendive
  • Drop Resistant
  • Vibration Alert
  • Multi-color LED Notification
Drop Specification
  • Exceeds per MIL-STD-810H: 12 ft./3.65 m to concrete;
  • Enterprise drop standard 8 ft. (2.4 m) to concrete across temperature (-20°C to 50°C) exceeding MIL-STD-810H
Processor & Chipset
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 128 GB
Memory Card Supported
  • microSD
  • UFS
Display & Graphics
Screen Size 4.3"
Screen Mode WVGA
Screen Resolution 800 x 480
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 43
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Software
Operating System Android
Upgradable Operating System Android 17
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 7.4"
Width 3.5"
Length 9.4"
Weight (With Battery) 1.64 lb
Miscellaneous
Package Contents
  • MC9400 Handheld Terminal
  • 7000 mAh Battery
Application/Usage
  • Warehouse
  • Distribution
  • Cold Storage
  • Inventory Management
  • Manufacturing
  • Safety Testing
  • Retail
  • Backroom Inventory Management
  • Store Receiving
  • Port
  • Yard
Ingress Protection (IP) Rating
  • IP65
  • IP68
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mc9400-mc9450.pdf MC9401-0G1J6CSS-NA  (PDF)
