Zebra

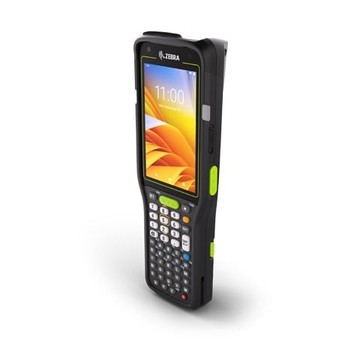

Zebra MC3400 Handheld Computer SE58, Wi-Fi 6E, 6GB/64GB, 47 Key Alphanumeric, IP65, 7000mAh

SKU:

MC3401-0S1M54SS-NA

The Zebra MC3401-0S1M54SS-NA pairs the SE58 Extended Range scan engine with a Brick/Straight Shooter form factor, reaching 1D and 2D barcodes up to 100 ft away -- a decisive advantage for port, yard, and warehouse workflows where high-rack or container scanning is routine. The Qualcomm QCM4490 octa-core processor runs at 2.40 GHz, backed by 6 GB of RAM and 64 GB of flash, with microSD and UFS expansion available. Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax), Bluetooth 5.3 BLE, NFC, and USB Type-C cover connectivity, while the 47-key alphanumeric keypad and 4-inch WVGA touchscreen at 800 x 480 and 600 Nit handle data entry and outdoor readability. The removable 7000 mAh Li-Ion battery at 3.60 V sustains extended shifts, and MIL-STD-810H drop resistance to 8 ft and IP65/IP67 ratings protect against dust and immersion across an operating range of -4 degrees F (-20 degrees C) to 122 degrees F (50 degrees C). Android, upgradable to Android 18 with GMS, a 13-megapixel rear camera, and a 5-megapixel front camera round out the feature set. TAA compliant and RoHS certified, the MC3401-0S1M54SS-NA carries a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MC3400 Rugged Mobile Computer is a family of enterprise handhelds engineered for high-volume data capture across warehousing, distribution, retail and field-service environments. Combining purpose-built form factors—brick/straight-shooter and pistol-grip—with advanced 1D/2D imagers, modern wireless standards and enterprise Android with Google Mobile Services, the MC3400 line helps teams scan reliably, enter data efficiently and stay connected through long shifts. Durable construction, Corning Gorilla Glass options and IP65/IP67 ingress protection reduce downtime in demanding conditions, while large-capacity batteries and hot‑swap options provide extended operational coverage for continuous workflows and large-scale deployments in North America and similar enterprise settings.

Key Features

  • Rugged construction: Durable industrial designs with Gorilla Glass and IP65/IP67 protection minimize device downtime in harsh operational environments.
  • Advanced imaging: Choice of SE55, SE4770, SE58 and SE5800 1D/2D imagers supports near, standard and extended-range barcode capture for diverse scanning tasks.
  • Flexible form factors: Brick/straight-shooter and pistol-grip variants provide ergonomic options optimized for scanning frequency and workflow style.
  • Modern connectivity: Wi‑Fi 6E, Bluetooth (including 5.3 on select models) and NFC enable fast, secure wireless communication and peripheral integration.
  • Workday power: 7000 mAh batteries, including hot‑swappable options, support extended shifts and continuous operation without workflow interruption.
  • Enterprise platform: Android with Google Mobile Services, multi‑GB RAM and 64–128 GB flash (UFS on select models) deliver a dependable software and performance foundation.

Specifications

  • Brand: Zebra
  • Product Family / Reference: MC3400 Rugged Mobile Computer
  • Form Factors: Brick / Straight shooter, Pistol grip
  • Imager / Scanner Models: SE55; SE4770; SE58; SE5800
  • Scanner Type: 1D / 2D imager
  • Scanner Range: Near / Standard / Extended Range
  • Wi‑Fi: Wi‑Fi 6E (802.11ax)
  • Bluetooth: Bluetooth (including Bluetooth 5.3 on select models)
  • NFC: Yes (select variants)
  • Operating System: Android with Google Mobile Services (GMS)
  • RAM: 4 GB, 6 GB (varies by model)
  • Internal Storage: 64 GB, 128 GB (varies by model)
  • Storage Type: UFS (on select models)
  • Display: 4.0 in color WVGA touchscreen / indoor display
  • Display Resolution: 800 x 480 px
  • Keypad Options: 38‑key function numeric; 47‑key alphanumeric
  • Cameras: Rear 13 MP; Front 5 MP (on select models)
  • Battery Capacity: 7000 mAh (hot‑swappable on select models)
  • Ingress Protection: IP65, IP67 (select models)
  • Display Protection: Corning Gorilla Glass (select models)
  • Wired Connectivity: USB‑C (select models)
  • Expandable Storage: microSD / microSDHC / microSDXC support (up to 2 TB on select models)
  • Geographical Availability: North America (select configurations)

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • IP Rating: IP65

  • Range: Extended Range

  • Connection: USB, Bluetooth

  • Keyboard: 47 Key Alpha Numeric

  • Battery Features: Rechargeable

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wired/Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE58
Image Sensor Type Imager
Scanner Range Extended Range
Scanning Distance 100 ft
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Brightness 600 Nit
Features
  • Gorilla Glass
  • Corning Gorilla Glass
  • Multi-color LED Notification
  • Vibration Alert
  • Audible Tone
  • Drop Resistant
  • Vibrator
Drop Specification

Per MIL-STD 810H: 8 ft (2.4m)7 to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F) exceeding MIL-STD-810H
Illumination Type LED
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 64 GB
Memory Card Supported
  • microSD
  • UFS
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Screen Resolution 800 x 480
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Keyboard/Keypad
Number of Keys 47
Keyboard Type Alphanumeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc (Wi-Fi 6)
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 5 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Operating System Android
Upgradable Operating System Android 18
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Brick/Straight Shooter
Rugged Yes
Height 1.5"
Width 2.9"
Length 8.2"
Weight (Approximate) 15.59 oz
Miscellaneous
Package Contents
  • MC3400 Mobile Computer
  • Battery
Application/Usage
  • Retail
  • Backroom Inventory Management
  • Order Picking
  • Store Receiving
  • Logistics
  • Yard
  • Asset Tracking
  • Inventory Management
  • Warehouse
  • Manufacturing
  • Port
Ingress Protection (IP) Rating
  • IP65
  • IP67
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mc3400-mc3450.pdf MC3401-0S1M54SS-NA  (PDF)
