Zebra

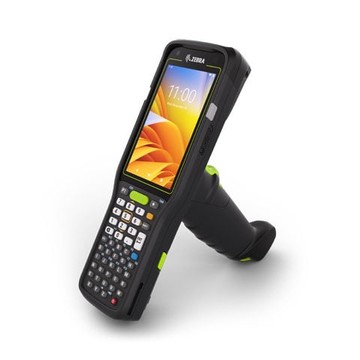

Zebra MC3400 Mobile Computer Wi-Fi 6E, 47-Key Alphanumeric, Standard Range Scanner, 6GB/64GB, Gun, Android GMS

SKU:

MC3401-0G1J54SS-NA

Mobile Handheld Computer, Zebra MC3400, LAN, Wi-Fi 6E, Gun, Bluetooth, NFC, 4.0" Display, Vibrator, Android GMS, SE4770 Imager, 6GB RAM / 64GB UFS, 47 Key, 7000mAh Standard Battery, North America Only (US, CA, PR)
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MC3400 Rugged Mobile Computer is a family of enterprise handhelds engineered for high-volume data capture across warehousing, distribution, retail and field-service environments. Combining purpose-built form factors—brick/straight-shooter and pistol-grip—with advanced 1D/2D imagers, modern wireless standards and enterprise Android with Google Mobile Services, the MC3400 line helps teams scan reliably, enter data efficiently and stay connected through long shifts. Durable construction, Corning Gorilla Glass options and IP65/IP67 ingress protection reduce downtime in demanding conditions, while large-capacity batteries and hot‑swap options provide extended operational coverage for continuous workflows and large-scale deployments in North America and similar enterprise settings.

Key Features

  • Rugged construction: Durable industrial designs with Gorilla Glass and IP65/IP67 protection minimize device downtime in harsh operational environments.
  • Advanced imaging: Choice of SE55, SE4770, SE58 and SE5800 1D/2D imagers supports near, standard and extended-range barcode capture for diverse scanning tasks.
  • Flexible form factors: Brick/straight-shooter and pistol-grip variants provide ergonomic options optimized for scanning frequency and workflow style.
  • Modern connectivity: Wi‑Fi 6E, Bluetooth (including 5.3 on select models) and NFC enable fast, secure wireless communication and peripheral integration.
  • Workday power: 7000 mAh batteries, including hot‑swappable options, support extended shifts and continuous operation without workflow interruption.
  • Enterprise platform: Android with Google Mobile Services, multi‑GB RAM and 64–128 GB flash (UFS on select models) deliver a dependable software and performance foundation.

Specifications

  • Brand: Zebra
  • Product Family / Reference: MC3400 Rugged Mobile Computer
  • Form Factors: Brick / Straight shooter, Pistol grip
  • Imager / Scanner Models: SE55; SE4770; SE58; SE5800
  • Scanner Type: 1D / 2D imager
  • Scanner Range: Near / Standard / Extended Range
  • Wi‑Fi: Wi‑Fi 6E (802.11ax)
  • Bluetooth: Bluetooth (including Bluetooth 5.3 on select models)
  • NFC: Yes (select variants)
  • Operating System: Android with Google Mobile Services (GMS)
  • RAM: 4 GB, 6 GB (varies by model)
  • Internal Storage: 64 GB, 128 GB (varies by model)
  • Storage Type: UFS (on select models)
  • Display: 4.0 in color WVGA touchscreen / indoor display
  • Display Resolution: 800 x 480 px
  • Keypad Options: 38‑key function numeric; 47‑key alphanumeric
  • Cameras: Rear 13 MP; Front 5 MP (on select models)
  • Battery Capacity: 7000 mAh (hot‑swappable on select models)
  • Ingress Protection: IP65, IP67 (select models)
  • Display Protection: Corning Gorilla Glass (select models)
  • Wired Connectivity: USB‑C (select models)
  • Expandable Storage: microSD / microSDHC / microSDXC support (up to 2 TB on select models)
  • Geographical Availability: North America (select configurations)

Main Features

  • Operating System: Android

  • Rugged: Industrial

  • Equipment Format: Gun Grip

  • Connection: USB, Bluetooth

  • Scan Range: Standard Range

  • Keypad: 47 Key Alpha Numeric

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wired/Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4770
Image Sensor Type Imager
Light Source Laser
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Brightness 600 Nit
Features
  • Gorilla Glass
  • Corning Gorilla Glass
  • Multi-color LED Notification
  • Push-to-talk
  • Vibration Alert
Drop Specification

Per MIL-STD 810H: 8 ft (2.4m)7 to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F) exceeding MIL-STD-810H

Illumination Type LED
Illumination Color Red
Processor & Chipset
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 64 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Screen Resolution 800 x 480
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 47
Keyboard Type Alphanumeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 5 Megapixel
Rear Camera Yes
Rear Camera Resolution 13 Megapixel
Software
Upgradable Operating System Android 18
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Voltage 3.60 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 6.5"
Width 2.9"
Length 8.2"
Weight (Approximate) 1.16 lb
Miscellaneous
Package Contents
  • MC3400 Mobile Computer
  • Battery
Application/Usage
  • Retail
  • Backroom Inventory Management
  • Order Picking
  • Store Receiving
  • Logistics
  • Yard
  • Asset Tracking
  • Inventory Management
Ingress Protection (IP) Rating
  • IP65
  • IP67
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
