Zebra

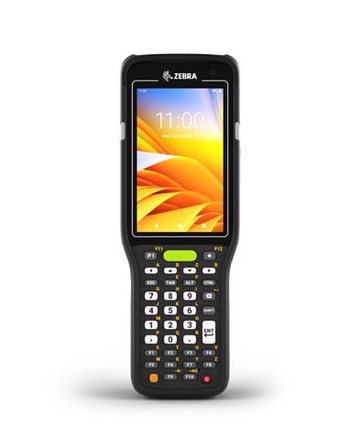

Zebra MC3400 Mobile Computer Gun Grip, SE58 Extended Range 1D/2D, 38-Key Keypad, 6GB RAM, 128GB Flash, Wi-Fi 6E, Android 13 GMS

SKU:

MC3401-0G1R63SS-NA

The Zebra MC3401-0G1R63SS-NA is fitted with the SE58 Extended Range 1D/2D scan engine, reaching barcodes up to 100 ft away -- the decisive specification that separates this gun-grip configuration from shorter-range siblings in the MC3400 family. It runs on a Qualcomm QCM4490 octa-core processor at 2.40 GHz backed by 6 GB RAM and 128 GB of flash, with microSD expansion available. The 4-inch WVGA touchscreen at 800 x 480 delivers 600 nit brightness with Corning Gorilla Glass protection, while the 38-key function-numeric keypad supports intensive data entry. Wireless connectivity spans IEEE 802.11 a/b/g/n/ac/ax, Bluetooth 5.3 BLE and NFC, with a USB Type-C port for wired use. The removable 7000 mAh Li-Ion battery at 3.60 V powers the 1.16 lb chassis, which is rated IP65/IP67 and drop-tested to 8 ft per MIL-STD-810H, operating across -4 degrees F to 122 degrees F. A 5-megapixel front camera, Android 15 upgrade path and GMS certification round out the feature set. TAA compliant and RoHS qualified, it carries a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus

The Zebra MC3400 Rugged Mobile Computer is a family of enterprise handhelds engineered for high-volume data capture across warehousing, distribution, retail and field-service environments. Combining purpose-built form factors—brick/straight-shooter and pistol-grip—with advanced 1D/2D imagers, modern wireless standards and enterprise Android with Google Mobile Services, the MC3400 line helps teams scan reliably, enter data efficiently and stay connected through long shifts. Durable construction, Corning Gorilla Glass options and IP65/IP67 ingress protection reduce downtime in demanding conditions, while large-capacity batteries and hot‑swap options provide extended operational coverage for continuous workflows and large-scale deployments in North America and similar enterprise settings.

Key Features

  • Rugged construction: Durable industrial designs with Gorilla Glass and IP65/IP67 protection minimize device downtime in harsh operational environments.
  • Advanced imaging: Choice of SE55, SE4770, SE58 and SE5800 1D/2D imagers supports near, standard and extended-range barcode capture for diverse scanning tasks.
  • Flexible form factors: Brick/straight-shooter and pistol-grip variants provide ergonomic options optimized for scanning frequency and workflow style.
  • Modern connectivity: Wi‑Fi 6E, Bluetooth (including 5.3 on select models) and NFC enable fast, secure wireless communication and peripheral integration.
  • Workday power: 7000 mAh batteries, including hot‑swappable options, support extended shifts and continuous operation without workflow interruption.
  • Enterprise platform: Android with Google Mobile Services, multi‑GB RAM and 64–128 GB flash (UFS on select models) deliver a dependable software and performance foundation.

Specifications

  • Brand: Zebra
  • Product Family / Reference: MC3400 Rugged Mobile Computer
  • Form Factors: Brick / Straight shooter, Pistol grip
  • Imager / Scanner Models: SE55; SE4770; SE58; SE5800
  • Scanner Type: 1D / 2D imager
  • Scanner Range: Near / Standard / Extended Range
  • Wi‑Fi: Wi‑Fi 6E (802.11ax)
  • Bluetooth: Bluetooth (including Bluetooth 5.3 on select models)
  • NFC: Yes (select variants)
  • Operating System: Android with Google Mobile Services (GMS)
  • RAM: 4 GB, 6 GB (varies by model)
  • Internal Storage: 64 GB, 128 GB (varies by model)
  • Storage Type: UFS (on select models)
  • Display: 4.0 in color WVGA touchscreen / indoor display
  • Display Resolution: 800 x 480 px
  • Keypad Options: 38‑key function numeric; 47‑key alphanumeric
  • Cameras: Rear 13 MP; Front 5 MP (on select models)
  • Battery Capacity: 7000 mAh (hot‑swappable on select models)
  • Ingress Protection: IP65, IP67 (select models)
  • Display Protection: Corning Gorilla Glass (select models)
  • Wired Connectivity: USB‑C (select models)
  • Expandable Storage: microSD / microSDHC / microSDXC support (up to 2 TB on select models)
  • Geographical Availability: North America (select configurations)

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • Equipment Format: Gun Grip

  • IP Rating: IP67

  • Range: Extended Range

  • Connection: USB, Bluetooth

  • Keyboard: 38 Key Function Numeric

  • Camera: 13MP Rear Facing Camera + 5MP Front Facing Camera

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wired/Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE58
Image Sensor Type Imager
Scanner Range Extended Range
Scanning Distance 100 ft
Google Mobile Services (GMS) Yes
Sensor Type
  • Light Sensor
  • Magnetometer
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Brightness 600 Nit
Features
  • Gorilla Glass
  • Corning Gorilla Glass
  • Multi-color LED Notification
  • Push-to-talk
  • VoIP
Drop Specification

Per MIL-STD 810H: 8 ft (2.4m)7 to concrete at (+23C/+73F); 6 ft (1.8m) to concrete across temperature (-20C to +50C/-4F to +122F) exceeding MIL-STD-810H
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Model QCM4490
Processor Core Octa-core (8 Core)
Processor Speed 2.40 GHz
Memory
Standard Memory 6 GB
Flash Memory 128 GB
Memory Card Supported microSD
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Screen Resolution 800 x 480
Touchscreen Information
Touchscreen Yes
Keyboard/Keypad
Number of Keys 38
Keyboard Type Function Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.3 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 5 Megapixel
Software
Upgradable Operating System Android 15
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Height 6.5"
Width 2.9"
Length 8.2"
Weight (Approximate) 1.16 lb
Miscellaneous
Application/Usage
  • Retail
  • Backroom Inventory Management
  • Order Picking
  • Store Receiving
  • Logistics
  • Yard
  • Asset Tracking
  • Inventory Management
Ingress Protection (IP) Rating
  • IP65
  • IP67
TAA Compliant Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mc3400-mc3450.pdf MC3401-0G1R63SS-NA  (PDF)
