Zebra

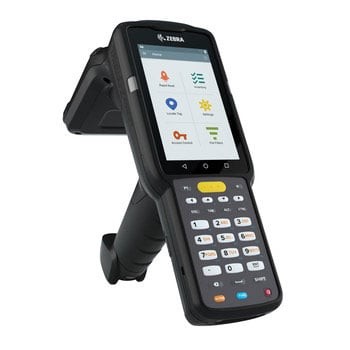

Zebra MC333U-GJ4EG4FT Handheld Terminals

SKU:

MC333U-GJ4EG4FT

Fitted with a 7000 mAh Li-Ion battery that recharges in 5 hours, the Zebra MC333U-GJ4EG4FT is a gun-style UHF/RAIN RFID handheld running Android 10 GMS on a Snapdragon 660 octa-core processor at 2.20 GHz. The integrated circular-polarized antenna reads RFID tags up to 19.7 ft away, while the SE4770 imager adds 1D and 2D barcode capture alongside NFC. Onboard memory stands at 4 GB RAM and 32 GB flash, expandable via microSD, SDHC or SDXC. Wireless connectivity covers IEEE 802.11 a/b/g/n/ac and Bluetooth 5.0 BLE, with a Micro USB port for wired connections. The 4-inch WVGA display at 800 x 480 pairs with a 47-key alphanumeric keypad, and IP54-rated sealing plus tolerance for multiple 5 ft drops to concrete across an operating range of -4 degrees F to 122 degrees F suit retail, healthcare and asset-tracking environments. At 1.50 lb, it is TAA compliant, RoHS and REACH certified, and backed by a 1-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra MC3330xR is an industrial-grade handheld UHF RFID reader and mobile computer designed for enterprise teams in retail, warehousing, healthcare, logistics, and asset-intensive operations. Built in a pistol-grip form factor, it combines an integrated UHF RFID engine — reading tags at a nominal range of ~19.7 ft./~6 m at up to 900+ tags/sec — with an SE4770 2D imager for simultaneous barcode and RFID capture in a single device, eliminating the need for multiple tools. The Qualcomm Snapdragon 660 octa-core 2.2 GHz processor, 4 GB RAM, and 32 GB Flash support demanding enterprise applications, while Android 10 with Zebra's Mobility DNA ecosystem simplifies deployment and management. A 7000mAh PowerPrecision+ battery, IP54 sealing, Corning Gorilla Glass panels, and a 5 ft./1.5 m drop specification keep the device operational through full shifts in tough environments. IEEE 802.11a/b/g/n/ac WLAN and Bluetooth v5.0 ensure continuous connectivity, and three keypad configurations — 29-key numeric, 38-key function numeric, and 47-key alphanumeric — let organizations match the device to their workflow.

Main Features

  • RFID: Yes

  • Operation System: Android

  • Rugged: Industrial

  • Connection: USB, Bluetooth

Technical Specifications
ico-plus ico-minus
Technical Information
Scanning Capability
  • 1D
  • 2D
Scan Engine Model SE4770
Image Sensor Type Imager
Light Source LED
Scanner Range Standard Range
Google Mobile Services (GMS) Yes
Sensor Type
  • Motion Sensor
  • Accelerometer
  • Gyroscope
Features
  • Corning Gorilla Glass
  • Lightweight
  • Push-to-talk
Drop Specification

Multiple 5 ft./1.5 m drops to concrete over the entire operating temperature range
Processor & Chipset
Processor Type Snapdragon
Processor Model 660
Processor Core Octa-core (8 Core)
Processor Speed 2.20 GHz
Memory
Standard Memory 4 GB
Flash Memory 32 GB
Memory Card Supported
  • microSD
  • SDHC
  • SDXC
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Screen Resolution 800 x 480
Keyboard/Keypad
Number of Keys 47
Keyboard Type Alphanumeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Micro USB Yes
Software
Operating System Android 10
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Battery Voltage 3.60 V
Maximum Battery Recharge Time 5 Hour
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Gun
Rugged Yes
Width 3"
Depth 8.3"
Length 6.5"
Weight (Approximate) 1.50 lb
Miscellaneous
Package Contents
  • MC3330xR UHF RFID Handheld Terminal
  • Battery
Application/Usage
  • Retail
  • Asset Tracking
  • Healthcare
Ingress Protection (IP) Rating IP54
TAA Compliant Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document mc3330xr.pdf MC333U-GJ4EG4FT  (PDF)
