Zebra

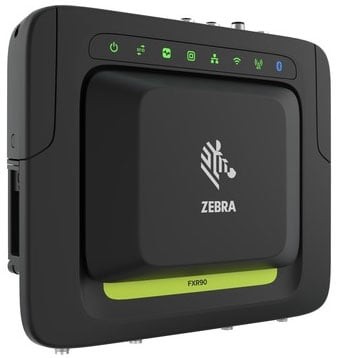

Zebra FXR90 Fixed RFID Reader Ultra-rugged, UHF, Bluetooth 5.3, Wi-Fi 6, 4 External Antenna Ports, Cross-polarized Linear Antenna

SKU:

FXR90011-400000-US

Built for demanding transportation, logistics, warehousing, and manufacturing environments, the Zebra UltraTag Reader UHF Pro combines ultra-rugged construction with a fixed RFID reader design, giving it the resilience needed for reliable operation in challenging indoor and outdoor settings. With UHF RFID, Bluetooth 5.3, Wi-Fi 6, an integrated cross-polarized linear antenna, and 4 external antenna ports, it offers flexible, high-performance connectivity and streamlined deployment for advanced asset tracking. TAA compliant.
Description
ico-plus ico-minus

The Zebra FXR90 Ultra-Rugged Fixed UHF RFID Reader is an enterprise-grade fixed-mount reader engineered for high-throughput asset tracking and real-time visibility in demanding industrial environments. Purpose-built for UHF RFID deployments, the FXR90 delivers rapid tag capture and flexible antenna configurations to support warehouse, transportation, manufacturing and yard-management applications. With modern wireless interfaces, rugged environmental sealing and options for integrated or external antenna arrays, the unit is designed to reduce read errors, simplify integration into existing networks and maintain reliable operation in dust, spray and wash‑down conditions. This reader family provides scalable deployment choices to match coverage, compliance and connectivity requirements for large-scale fixed RFID infrastructures.

Key Features

  • High-speed capture: Reads 1,300+ tags per second to accelerate inventory cycles and support dense tag populations with low latency.
  • Flexible antenna options: Integrated antenna plus support for 4 or 8 external RP‑TNC antenna ports enables tailored coverage and multi-antenna deployments.
  • Modern connectivity: USB (2x), Ethernet, Wi‑Fi 6, Bluetooth 5.3 and optional cellular (5G/4G), GPS and CBRS support versatile integration scenarios and network redundancy.
  • Rugged and serviceable: IP65/IP67 environmental sealing and MIL‑STD‑810H certification deliver durability for harsh indoor/outdoor and wash‑down environments.
  • Extended read range: Integrated antenna performance and external antenna support provide read ranges up to approximately 30.5 m (100 ft) for broad fixed‑site coverage.

Specifications

  • Brand: Zebra
  • Product Name: Zebra FXR90 Ultra-Rugged Fixed UHF RFID Reader
  • Product Reference: Zebra FXR90 Ultra-Rugged Fixed UHF RFID Reader
  • RFID Technology: UHF RFID
  • Maximum RFID Read Rate: 1,300+ tags/sec
  • Maximum Read Range: Up to 30.5 m (100 ft)
  • Operating Frequency Range: 865–868 MHz (regional variants available: US 902–928 MHz, JP 916–921 MHz)
  • Air Protocols: ISO 18000-6C (EPC Class 1 Gen2V2)
  • Integrated RFID Antenna Gain: 7 dBi
  • Integrated RFID Antenna Beam Width: 72°
  • Antenna Ports: Integrated antenna with options for 4 or 8 external RP‑TNC ports
  • USB Ports: 2
  • Interfaces: USB (2x), Ethernet, Bluetooth, Wi‑Fi
  • Wi‑Fi Standard: IEEE 802.11ax (Wi‑Fi 6)
  • Bluetooth Version: Bluetooth v5.3 (Class 1 with BLE)
  • Wireless WAN / Cellular: 5G/4G support (selected variants)
  • GPS Support: GPS/GLONASS/BDS/Galileo/QZSS/GNSS (selected variants)
  • NFC: NFC tag tap‑to‑pair (selected variants)
  • Environmental Sealing: IP65/IP67
  • Military Standard Certification: MIL‑STD‑810H
  • Security & Encryption: WEP, TKIP, AES CCMP, AES GCMP, WAPI, AES CMAC

Main Features

  • RFID: Yes

  • Rugged: Industrial

Technical Specifications
ico-plus ico-minus
Documents
ico-plus ico-minus
Product document fxr90.pdf MOD-FXR90
FAQs
ico-plus ico-minus
What is the maximum tag read rate and read range of the Zebra FXR90 Ultra-Rugged Fixed UHF RFID Reader?
The FXR90 reads 1,300 or more tags per second and supports a maximum read range of up to 30.5 m (100 ft) when using external antennas.
Which air protocol does the Zebra FXR90 use, and what operating frequencies are available?
It operates on ISO 18000-6C (EPC Class 1 Gen2V2). Regional frequency variants cover 865–868 MHz, 902–928 MHz (US), and 916–921 MHz (JP).
What wireless and wired connectivity options does the Zebra FXR90 support?
The FXR90 includes two USB ports, Ethernet, Wi-Fi 6 (IEEE 802.11ax), and Bluetooth 5.3 (Class 1 with BLE). Cellular (5G/4G), GPS/GNSS, and NFC tap-to-pair are available on select variants of this reader.
How many antenna ports does the Zebra FXR90 offer, and what is the integrated antenna's performance?
The FXR90 includes a built-in antenna with 7 dBi gain and a 72° beam width, and supports options for 4 or 8 external RP-TNC antenna ports for broader or multi-zone coverage.
What environmental and ruggedness certifications does the Zebra FXR90 carry, making it suitable for harsh industrial sites?
The FXR90 is sealed to IP65 and IP67 standards and is certified to MIL-STD-810H, qualifying it for dust, water spray, wash-down, and demanding indoor or outdoor industrial environments.
What encryption and security standards does the Zebra FXR90 support for network deployments?
It supports WEP, TKIP, AES CCMP, AES GCMP, WAPI, and AES CMAC, providing a range of encryption options for secure integration into enterprise wireless networks.
