Zebra

DS9308-sr4r0110azu

SKU:

DS9308-SR4R0110AZU

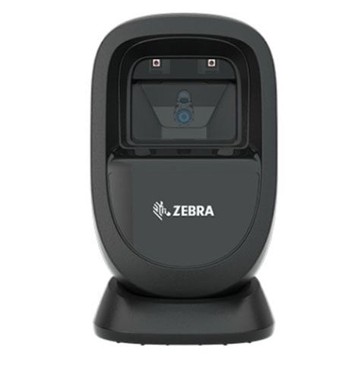

The Zebra DS9308-SR4R0110AZU is a desktop from the DS9300 series. Delivers high first-read rates on standard and degraded barcodes for retail, warehouse, and healthcare environments.
Description
ico-plus ico-minus

The Zebra DS9308 Barcode Scanner combines advanced technology with a compact design, making it ideal for space-constrained retail environments such as convenience stores and trendy boutiques. Engineered for all-day reliability, this scanner captures both 1D and 2D barcodes effortlessly, ensuring speedy checkout and enhanced customer satisfaction. Its rapid-fire scanning ability and intelligent adaptive illumination streamline operations, while built-in features like document capture and anti-theft tag deactivation eliminate extra steps at the point of sale. This little scanner delivers big functionality, making it a must-have for businesses aiming to optimize their service.


Key features:

  • Compact Design: At home in any retail environment with a near-zero footprint.
  • Advanced Scanning: Captures 1D and 2D barcodes, including damaged and low-contrast codes.
  • Rapid Scanning: Swipe speeds up to 50% faster than competitors.
  • Adaptive Illumination: Automatically adjusts LEDs for optimal visibility.
  • Durable Build: Survives drops, bumps, and spills with IP52 sealing.

Specifications:

  • Dimensions: 5.7 in. H x 3.4 in. W x 3.3 in. D (14.5 cm H x 8.6 cm W x 8.3 cm D)
  • Weight: 11.2 oz. / 318 g
  • Operating Voltage: 4.5 to 5.5 VDC
  • Scan Speed: Up to 120 in./305 cm per second
  • Image Sensor: 1280 x 800 pixels
  • Environmental Sealing: IP52
  • Drop Specification: Withstands drops from 5 ft./1.5 m
  • Supported Interfaces: USB, RS232, Keyboard Wedge
  • Warranty: 3 years against defects

Main Features

  • Connection: Serial, USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported 1D:
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Han Xin
  • Postal Codes
  • securPharm
  • DotCode
  • Dotted DataMatrix
OCR:
  • OCR-A
  • OCR-B
  • MICR
  • US currency
Image Sensor Type Imager
Interfaces/Ports
Host Interface
  • USB
  • Serial
  • Keyboard Wedge
  • IBM 46XX
Physical Characteristics
Form Factor Desktop
Product Color Midnight Black
Height 5.7"
Width 3.4"
Depth 3.3"
Weight (Approximate) 11.22 oz
Miscellaneous
Country of Origin Vietnam
Environmentally Friendly Yes
Environmental Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document ds9300.pdf DS9308-SR4R0110AZU Product document ds9300.pdf MOD-DS9300
