Zebra

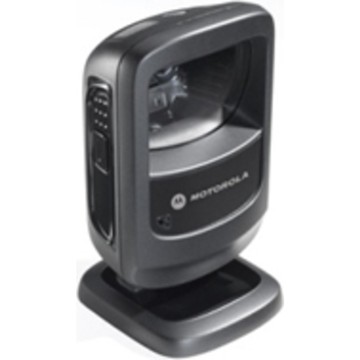

DS9208 Digital Scanner, DL Parsing, Black (DS9208-DL00004NNWW), USB Cable (Series A, 7ft. Straight) (CBA-U21-S07ZAR)

SKU:

DS9208-DL4NNU21Z

USB Kit, 2D Driver's License Parsing Imager, Includes 7'' Straight USB Cable, Color: Black.
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
The Motorola DS9208 general purpose presentation scanner delivers the blazing speed typical of laser scanners on both 1D and 2D barcodes, accommodating 2D barcodes without sacrificing scanning quality or performance. Users never need to take time to align the barcode with the scanner or pause between scans. Since the DS9208 can scan barcodes printed on paper labels or on mobile phone displays, users can drive revenue by attracting the millions of customers who are using their cell phones to better manage their lives. Retailers can accommodate customers who download mobile coupons, mobile loyalty cards and more. Quick service restaurants can accept mobile coupons at the register. Hotels can allow guests to use electronic loyalty cards stored on their cell phones, eliminating the need to carry physical cards. And since theaters, theme parks and stadiums can scan mobile tickets as easily as a paper ticket, they can offer customers an added convenience: paperless ticketing.
Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported
  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code)
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 32 (Italian Pharmacode)
  • Code 128 (Standard, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11)
  • MSI Plessey
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)
PDF417 (and variants):
  • PDF417 (Standard, Macro)
  • MicroPDF417(Standard, Macro)
  • Composite Codes (CC-A,CC-B, CC-C)
2-D:
  • TLC-39
  • Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)
Postal:
  • U.S. Postnet and Planet
  • U.K. Post
  • Japan Post
  • Australian Post
  • Netherlands KIX Code
  • Royal Mail 4 State Customer
  • UPU FICS 4 State Postal
  • USPS 4CB
  • Canadian Post (Postbar)
Image Sensor Type Imager
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Desktop
Color Midnight Black
Height 5.5"
Width 3.2"
Depth 3.2"
Weight (Approximate) 9.50 oz
Miscellaneous
Additional Information

USB Cable separate

Environmentally Friendly Yes
Environmental Certification RoHS
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document V357623.pdf DS9208-DL4NNU21Z Product document zebra-ds92xx-scanners.pdf DS9208-DL4NNU21Z
