Zebra

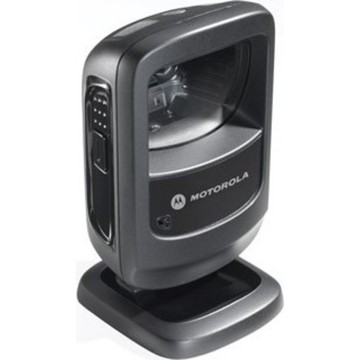

Zebra DS9208 Presentation Scanner USB, Standard Range, Black, 1D/2D/PDF417, Handheld/Hands-free

SKU:

DS9208-SR4NNU21Z

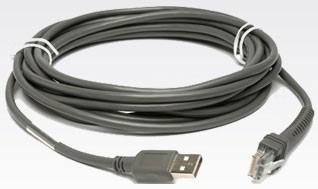

USB Kit, Includes USB cable, 1D/2D Imager, Color: Black, Omnidirectional,
Description
ico-plus ico-minus
Motorola DS9208 Barcode Scanner redefines efficiency in mobile transactions with its advanced omnidirectional scanning capabilities. Designed for versatility, it seamlessly handles both printed and mobile barcodes, ensuring a smooth customer experience in retail, events, and more. With lightning-fast scanning speed and the flexibility of both hands-free and handheld operation, the DS9208 is an indispensable tool for enhancing productivity and customer loyalty.

Key features:
  • Scans 1-D, 2-D, and PDF417 barcodes on paper and mobile devices.
  • Compact design that fits perfectly in space-constrained environments.
  • Integrated Electronic Article Surveillance (EAS) support eliminates the need for separate systems.
  • Lightweight, ergonomic design provides comfort in handheld mode.
  • Multi-code scanning enhances efficiency by allowing simultaneous decoding.


Specifications:
  • Dimensions: 5.512 in. H x 3.232 in. W x 3.150 in. D (14.0 cm H x 8.21 cm W x 8.0 cm D)
  • Weight: 9.5 oz. / 269 g
  • Scan Speed: Up to 90 in./2.3 m per second
  • Operating Temperature: 32°F to 104°F / 0°C to 40°C
  • Humidity: 5% to 85% RH (non-condensing)
  • Drop Spec: Withstands multiple drops from 5 ft. / 1.5 m
  • Interface Supported: USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge

Main Features

  • Rugged: Commercial

  • Range: Standard Range

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus Supplementals
  • ISBN (Bookland)
  • ISSN (Coupon Code)
  • Code 39 (Standard, Full ASCII, Trioptic)
  • Code 32 (Italian Pharmacode)
  • Code 128 (Standard, UCC/EAN-128, ISBT-128 Concatenated)
  • Code 93
  • Codabar/NW7
  • 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA , Chinese 2 of 5, Matrix 2 of 5, Code 11)
  • MSI Plessey
  • GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked)

PDF417 (and variants):

  • PDF417 (Standard, Macro)
  • MicroPDF417 (Standard, Macro)
  • Composite Codes (CC-A, CC-B, CC-C)

2D:

  • TL C-39
  • Aztec (Standard, Inverse)
  • MaxiCode
  • DataMatrix/ECC 200 (Standard, Inverse)
  • QR Code (Standard, Inverse, Micro)

Postal:

  • U.S. Postnet and Planet
  • U.K. Post
  • Japan Post
  • Australian Post
  • Netherlands KIX Code
  • Royal Mail 4 State Customer
  • UPU FICS 4 State Postal
  • USPS 4CB
Light Source LED
Image Sensor Type Imager
Depth of Field
  • 0" - 4.5"@5mil - Code 39
  • 0" - 8.5"@10mil - UPC/EAN
  • 0" - 10.5"@13mil - UPC/EAN
  • 0" - 3.8"@6.6mil - PDF417
  • 0" - 4.7"@10mil - Datamatrix
Scan Pattern Omni-directional
Interfaces/Ports
Host Interface USB
Physical Characteristics
Color Black
Height 5.5"
Width 3.2"
Depth 3.1"
Weight (Approximate) 10.02 oz
Miscellaneous
Additional Information

USB Cable separate

Certifications & Standards
  • IP50
Electrical Safety:
  • UL6950-1
  • CSA C22.2 No. 60950-1:2nd ed
  • EN60950-1: 2nd ed. + A11: 2009
  • IEC60950-1: 2nd ed
LED Safety:
  • IEC / EN 60825-1: 2001 Class 1M LED
  • EN 62471: 2008
  • IEC 62471: 2006
EMI/RFI:
  • FCC CFR47 Part 15 Class B: 2007
  • ICES-003 Issue 4 :2004 Class B
  • EN 55022: 2006 + A1: 2007
  • EN 55024: 1998 +A1: 2001 + A2: 2003
  • AS/NZS CISPR22:2006
  • VCCI:2007
Environmentally Friendly Yes
Environmental Certification RoHS
Warranty
Limited Warranty 3 Year
