Zebra

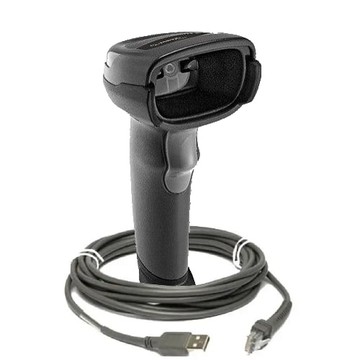

Zebra DS2208, 2D, Standard Range, RS232, USB, Kit (USB), Black

SKU:

DS2208-SR7U2500AZW

Weighing just 5.70 oz in a Twilight Black handheld chassis, the Zebra DS2208-SR7U2500AZW connects via USB and reads both 1D and 2D barcodes through an area imager sensor. Its 1D symbology coverage spans Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar and Base 32 (Italian Pharma), while 2D support extends to PDF417, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Composite Codes, TLC-39, Chinese Sensible (Han Xin) and Postal Codes. The unit measures 6.5 in tall, 2.6 in wide and 3.9 in deep, and is manufactured in Mexico. Compatible with the universal cables used with Zebra's LS2208 scanners, it fits retail point-of-sale, healthcare and distribution center environments where broad symbology coverage and existing cable infrastructure need to work together.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra DS2208 is a corded handheld 2D area imager designed for retail, hospitality, transportation and logistics, light manufacturing, and government environments where reliable, high-throughput barcode capture is essential. Its 640 x 480 pixel image sensor reads a broad range of 1D and 2D symbologies — including QR Code, Data Matrix, PDF417, and UPC/EAN — across a working range of 0.5 in. to 14.5 in., while Zebra's PRZM Intelligent Imaging delivers consistent first-pass decoding even on poor-quality or low-contrast barcodes. Omni-directional scanning eliminates the need to align the device, speeding up POS checkout and reducing operator training time. Weighing just 5.7 oz., the DS2208 connects via USB or RS-232 with auto-host detect cables that identify the interface automatically, and it ships pre-configured for immediate deployment. A five-year limited warranty and RoHS compliance round out a scanner built for demanding, high-volume workstations.

Main Features

  • Case color: Black

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
Image Sensor Type Imager
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Product Color Twilight Black
Height 6.5"
Width 2.6"
Depth 3.9"
Weight (Approximate) 5.70 oz
Miscellaneous
Country of Origin Mexico
