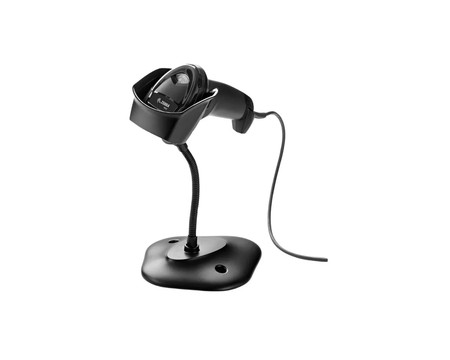

Zebra DS2208 Handheld Barcode Scanner with Stand

SKU:

DS2208-SR7U2100SGW

Bundled with a stand and USB cable, the Zebra DS2208-SR7U2100SGW is a corded, omni-directional imager rated at 30 scan/s with a standard scanning distance of 14.49 in. Its 33-degree horizontal by 25-degree vertical field of view, combined with skew and pitch tolerances of 65 degrees each and full 360-degree roll tolerance, keeps reads reliable across awkward presentation angles, while 5 in/s motion tolerance handles fast-moving items at checkout. The imager resolves Code 39 down to 5 mil, PDF417 to 6.7 mil and DataMatrix to 10 mil, covering 1D symbologies including Code 128, UPC/EAN, GS1 DataBar and Codabar alongside 2D formats such as QR Code, Aztec, DataMatrix and PDF417. At 5.70 oz in Twilight Black, the unit carries an IP42 ingress rating and is designed to withstand multiple drops at 5.0 ft to concrete, suiting retail, hospitality, transportation, logistics, light manufacturing and government counter environments.
Prices could not be updated.
Description
ico-plus ico-minus
The Zebra DS2208 is a corded handheld 2D area imager designed for retail, hospitality, transportation and logistics, light manufacturing, and government environments where reliable, high-throughput barcode capture is essential. Its 640 x 480 pixel image sensor reads a broad range of 1D and 2D symbologies — including QR Code, Data Matrix, PDF417, and UPC/EAN — across a working range of 0.5 in. to 14.5 in., while Zebra's PRZM Intelligent Imaging delivers consistent first-pass decoding even on poor-quality or low-contrast barcodes. Omni-directional scanning eliminates the need to align the device, speeding up POS checkout and reducing operator training time. Weighing just 5.7 oz., the DS2208 connects via USB or RS-232 with auto-host detect cables that identify the interface automatically, and it ships pre-configured for immediate deployment. A five-year limited warranty and RoHS compliance round out a scanner built for demanding, high-volume workstations.

Main Features

  • Case color: Black

  • Connectivity: Corded

  • Connection: USB

  • Scanner Capability: 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Chinese Sensible (Han Xin)
  • Postal Codes
Image Sensor Type Imager
Scan Rate 30 scan/s
Scan Pattern Omni-directional
Scanner Range Standard Range
Scanning Distance 14.49"
Cable Type Included USB
Stand Included Yes
Field of View (Horizontal) 33°
Field of View (Vertical) 25°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 5 in/s
Maximum Ambient Light 107600 lux
Drop Specification Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast 25%
Maximum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (PDF417) 6.7 mil
Interfaces/Ports
Host Interface USB
Physical Characteristics
Form Factor Handheld
Color Family Black
Product Color Twilight Black
Height 6.5"
Width 2.6"
Depth 3.9"
Weight (Approximate) 5.70 oz
Miscellaneous
Ingress Protection (IP) Rating IP42
Application/Usage
  • Retail
  • Hospitality
  • Transportation
  • Logistics
  • Light/Clean Manufacturing
  • Government
  • Industrial
Country of Origin Mexico
