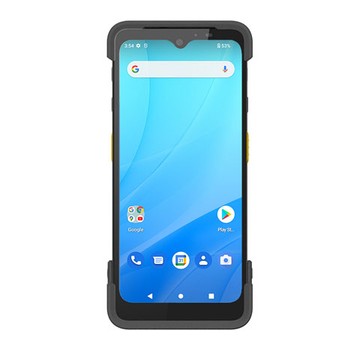

Wasp 633809012662 Handheld Terminals
633809012662
Select model
The Wasp DR6 Mobile Computer is the ultimate rugged companion for mobile data collection, designed to enhance efficiency in demanding work environments. Boasting 5G connectivity and advanced multi-scan functionality, this device allows users to scan up to 10 barcodes simultaneously from a distance of up to 10 feet. Equipped with the Android 12 operating system and a robust design rated IP65/IP67 for dust and water resistance, the DR6 ensures durability while delivering reliable performance in any situation.
Key Features
- Barcode reading distance: Up to 10 feet (3m)
- Multi-scan functionality: Reads 10 barcodes simultaneously
- Scanning capabilities: 1D, 2D, DPM, DOT code, and barcodes on smartphone screens
- Operating system: Android 12 with Google Mobile Service certification
- Connectivity: Supports 5G, WLAN 6E at 2.4, 5GHz, and 6GHz
- Durability: IP65 & IP67 rated for heavy-duty protection
- Battery: 5100mAh hot-swap battery for continuous operation
Specifications
- Processor: 64-bit Qualcomm Snapdragon TM 6460, Octa-Core up to 2.7GHz
- Memory: 6GB RAM, 64GB UFS Flash (128GB option)
- Display: 6.3" Color LCD, 2160x1080 resolution, Gorilla Glass 3
- Audio: 1.5W output, dual-microphone with noise cancellation
- Weight: 9.5oz (270g)
- Dimensions: 6.6" x 3.0" x 0.7"
- Camera: 5 MP front & 16 MP rear with LED flash and auto-focus
- Charging: USB 3.1 Type-C, fast charging supported
- Operating Temperature: -4°F to 131°F (-20°C to 55°C)
- Sealing: IP65 & IP67 per IEC 60529
- Drop Specification: 5'11" (1.8m) with bumper
Main Features
-
Operation System: Android
-
Rugged: Industrial
-
Connection: USB, Bluetooth
| Technical Information | |
|---|---|
| Connectivity Technology | Wired/Wireless |
| Scanning Capability |
|
| Image Sensor Type | Imager |
| Scanner Range | FlexRange |
| Scanning Distance | 30 ft |
| Google Mobile Services (GMS) | Yes |
| Sensor Type |
|
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Nano |
| Brightness | 500 Nit |
| Features |
|
| Drop Specification |
5'11" (1.8m) with bumper / 4'11" (1.5m) without bumper |
| Illumination Type | LED |
| Processor & Chipset | |
|---|---|
| Processor Manufacturer | Qualcomm |
| Processor Type | Snapdragon |
| Processor Model | 6460 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.70 GHz |
| Memory | |
|---|---|
| Standard Memory | 6 GB |
| Flash Memory | 64 GB |
| Memory Card Supported |
|
| Display & Graphics | |
|---|---|
| Screen Size | 6.3" |
| Screen Resolution | 2160 x 1080 |
| Display Screen Type | LCD |
| Touchscreen Information | |
|---|---|
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Network & Communication | |
|---|---|
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/d/h/i/k/r/v |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Cellular Network Supported | GSM |
| Cellular Data Connectivity Technology |
|
| GPS | Yes |
| Global Navigation Satellite System (GNSS) Supported | BeiDou/Galileo/GLONASS |
| Interfaces/Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| Camera | |
|---|---|
| Front Camera | Yes |
| Front Camera Resolution | 5 Megapixel |
| Rear Camera | Yes |
| Rear Camera Resolution | 16 Megapixel |
| Software | |
|---|---|
| Operating System | Android 12 |
| Power Description | |
|---|---|
| Power Source | Battery |
| Battery Information | |
|---|---|
| Battery Capacity | 5100 mAh |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Included | Yes |
| Removable Battery | Yes |
| Environmental Conditions | |
|---|---|
| Operating Temperature | -4°F (-20°C) to 131°F (55°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
|---|---|
| Form Factor | Phone-size |
| Rugged | Yes |
| Weight (With Battery) | 9.50 oz |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Application/Usage |
|
| Ingress Protection (IP) Rating |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
|---|---|
| Limited Warranty | 1 Year |
