UNITECH, HARDWARE, RP300 SERIES, RFID READER_902-928 MHZ (NORTH AMERICA) UHF_IMPINJ E710_JAPAN (1W/LBT/CH6)_USB BT_STANDARD_0 PORT_GREEN

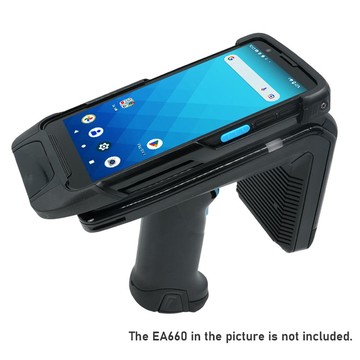

The Unitech OmniRead RP300 is a professional UHF RFID mobile reader designed for high-volume inventory, asset tracking and mixed barcode/RFID workflows across warehousing, logistics, retail and field service environments. Built around the Impinj E710 chipset with Gen2X support, the gun-style handheld offers long-range UHF reading and fast tag capture while remaining easy to deploy with multiple host interfaces. Ruggedized for industrial use and equipped with a high-capacity, hot-swappable battery, the RP300 minimizes downtime and adapts to hybrid workflows via optional 2D imaging and standard connectivity options, enabling efficient cycle counts, bulk reads and reliable integration into existing mobile ecosystems.

Key Features

• Long-range UHF reading: Delivers read distances up to 25 m to speed inventory and asset scans across large areas.
• High throughput: Capable of processing ~1,000 tags per second for fast bulk reads in dense tag environments.
• Flexible connectivity: Bluetooth 5.3, USB‑C (and USB), and NFC tap-to-pair options support easy integration with Android, Windows and iOS hosts.
• Rugged and reliable: Industrial-rated ingress protection (IP65/IP54 variants) and 1.5 m drop resistance for daily use in demanding conditions.
• Operational continuity: Large 7,000 mAh hot-swappable battery reduces interruptions for extended shifts.
• Hybrid workflow ready: Optional 2D imager and integrated barcode scanner engine variants allow combined RFID and barcode capture.

Specifications

• Brand: Unitech
• Product name / Family: Unitech OmniRead RP300 (RP300 series)
• RFID Chipset: Impinj E710
• RFID Protocol / Standard: Gen2X
• Frequency Band / Range: UHF (902–928 MHz on regional variants)
• RF Output Power: 1 W (where specified)
• Maximum Read Range: 25 m
• Tag Throughput: 1000 tags/s
• Form Factor: Gun / handheld
• Connectivity: Bluetooth 5.3, USB‑C (USB), NFC
• Operating System Compatibility: Android, Windows, iOS
• Battery Capacity: 7000 mAh
• Hot-swappable Battery: Yes
• Ingress Protection Rating: IP65 (IP54 on some variants)
• Drop Resistance: 1.5 m
• Optional 2D Barcode Scanner / Imager: Yes (2D imager / SE4710 on select models)
• Regional / Configuration Notes: Regional variants include LBT support and channel configurations (e.g., CH6) and green finish on some SKUs
• Dimensions (selected model): 172.02 x 81 x 156.36 mm
