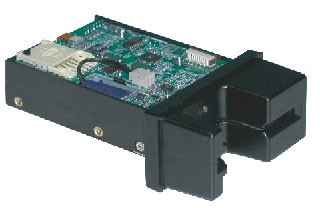

UIC HCR331-33RH1MDWNR Card Readers

The UIC HCR331 Credit Card Reader is a versatile and reliable hybrid solution for businesses needing efficient and secure card transactions. With EMV Level 1 certification, this device seamlessly reads and writes smart cards conforming to ISO 7816 standards and magnetic stripe cards per ISO 7811 and AAMVA protocols. Its user-centric design includes features like manual insertion, built-in security access module (SAM) socket, and automatic card ejection during power failures. Ideal for various applications, the HCR331 supports memory and CPU cards, ensuring reliability and performance in busy environments.
Key Features

• Hybrid Compatibility: Supports both magnetic stripe and smart cards.
• Efficient Design: Manual card insertion for quick and easy transactions.
• Security Focused: Integrated SAM socket for enhanced security.
• Robust Performance: Up to 1 million insertion cycles for durability.
• Easy Maintenance: Firmware upgradeable for future-proofing.
• LED Indication: Bi-color indicators for operational status.

Specifications

• Model: HCR331
• Electrical:
• Power Requirement: +5VDC±5%
• Power Consumption: 500mA maximum surge current when solenoid firing
• Interfaces: RS232 (USB optional)
• Mechanical:
• Body Material: PC + 20%GF + 6%PTFE
• Dimensions: 107L x 62W x 26H mm
• Weight: Approx. 165g (without power adapter)
• Card Handling Method: Manual insertion
• Environment:
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -30°C to +70°C
• Operating Humidity: 15% to 90%
• Storage Humidity: 10% to 90%
• Performance:
• Read Card Format: ISO 7810, 7811, AAMVA, ISO 7816/EMV
• Read Speed: 4-40 ips
• Card Thickness: 0.76±0.08mm
• Error Rate: < 0.5%
• Magnetic Head Life: 500K insertion cycles, 1M optional
• IC Card Contract Life: 500K times minimum
