Toshiba

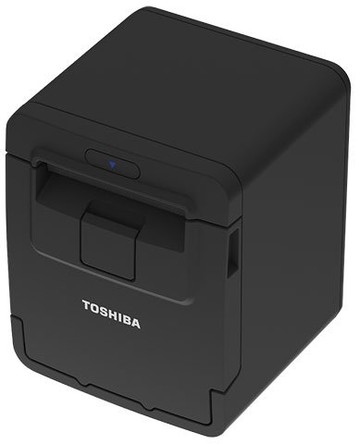

Toshiba HSP100 Thermal Receipt Printer 254mm/s, 203dpi, Ethernet, 52/72mm, 3in

SKU:

HSP100EKIT

A compact direct thermal printer with a smooth drop-in paper mechanism, the Toshiba HSP100 delivers fast 254 mm/sec receipt printing at 203 dpi over Ethernet. It is designed for retail, hospitality, healthcare, ticketing, banking, and service environments, with clear text, logos, and barcodes plus ENERGY STAR compliance.
Description
ico-plus ico-minus

The Toshiba Pro (HSP100 series) is a compact, commercial-grade direct thermal receipt printer engineered for retail, hospitality, healthcare and kiosk environments that demand fast, reliable ticketing and receipt output. Designed for point-of-sale integration, it delivers 203 dpi print quality at up to 254 mm/sec, supports common paper widths (80/72/58/52 mm) and accepts rolls up to 83 mm diameter, while offering flexible connectivity options including USB (Type‑A/Type‑B, USB 2.0), optional Ethernet (10/100) and RS232. Its robust paper management, partial-cut cutter and ENERGY STAR compliance help reduce downtime and operating costs, making it suitable for high-throughput counters, kitchens, clinics and self-service terminals.

Key Features

  • High-speed printing: Up to 254 mm/sec throughput reduces customer wait times and improves transaction flow in busy POS environments.
  • Clear thermal output: 203 dpi resolution and 16 gray levels deliver legible text, barcodes and graphics suitable for receipts and tickets.
  • Flexible connectivity: USB Type-A/Type-B (USB 2.0), optional Ethernet (10/100) and RS232 support simple integration with existing POS systems and peripherals.
  • Versatile media handling: Supports 80/72/58/52 mm formats, 3‑inch (83 mm) roll capacity and 12.5 mm core, enabling common receipt sizes and longer run times between roll changes.
  • Durability & low maintenance: Long-life thermal head (200 km) and cutter (2,000,000 cuts) plus anti-jam/paper management features reduce service interventions and total cost of ownership.

Specifications

  • Brand: Toshiba
  • Model: HSP100 (SpeedPrint Pro series)
  • Print Technology: Direct Thermal
  • Print Resolution: 203 dpi
  • Maximum Print Speed: 254 mm/sec
  • Effective Print Width: 72.00 mm
  • Supported Paper Widths: 80 mm, 72 mm, 58 mm, 52 mm
  • Maximum Paper Roll Outer Diameter: 83 mm (3 in)
  • Paper Core Inner Diameter: 12.5 mm
  • Recommended Paper Thickness: 0.050–0.070 mm
  • Recommended Paper Basis Weight: 50–70 g/m²
  • Thermal Head Life: 200 km
  • Cutter Life: 2,000,000 cuts
  • Thermal Head Heater Elements: 640
  • Grayscale Levels: 16
  • Maximum Grayscale Print Speed: 4 ips
  • RAM: 8 MB
  • Flash Memory: 8 MB
  • CPU Clock Frequency: 144 MHz
  • Command Emulation: ESC/POS
  • USB Version: USB 2.0 (High Speed)
  • USB Ports: Type A (host), Type B (device)
  • Ethernet Interface (optional): 10Base‑T / 100Base‑TX (IEEE 802.3u), auto‑negotiation
  • RS232 Interface (optional): Serial (RS232), multiple baud rates and parity/data formats supported
  • Power Input (DC): 24 V
  • Power Adapter Input Rating: 100–240 Vac
  • Power Adapter Output: 24 Vdc, 2.5 A
  • Weight: 1.18 kg (approx. 2.43 lbs)
  • Dimensions (W x H x D): 134.1 x 136.4 x 163.9 mm
  • IP Rating: IP21 (splash-resistant)
  • ENERGY STAR: Yes
  • Supported Code Pages / Character Sets: CP437, CP850, CP852, CP857, CP858, CP860, CP863, CP865, CP866, CP1252, CP1253, CP1254, CP1256

Main Features

  • POS: Yes

  • DPI: 203 dpi

  • Connection: Ethernet

Documents
ico-plus ico-minus
Product document mod-hsp100-toshiba-receipt-printers-datasheet.pdf MOD-HSP100 Product document mod-hsp100-toshiba-receipt-printers-user-manual.pdf MOD-HSP100
FAQs
ico-plus ico-minus
What connectivity interfaces does the Toshiba HSP100 support for POS integration?
The HSP100 includes USB 2.0 with both Type-A host and Type-B device ports as standard, and supports optional Ethernet (10Base-T/100Base-TX with auto-negotiation) and RS232 serial interfaces for flexible integration with existing POS systems.
How fast does the Toshiba HSP100 print, and what resolution does it deliver?
It prints at up to 254 mm/sec and produces output at 203 dpi with 16 grayscale levels, supporting legible text, barcodes, and graphics on receipts and tickets.
What paper widths and roll sizes does the Toshiba HSP100 accept?
The HSP100 supports paper widths of 80, 72, 58, and 52 mm, accommodates rolls up to 83 mm outer diameter with a 12.5 mm core, and works with paper between 0.050 and 0.070 mm thick.
How long do the Toshiba HSP100's thermal head and cutter last?
The thermal head is rated for 200 km of printing and the cutter is rated for 2,000,000 cuts, both designed to reduce service intervals and lower the total cost of ownership in high-throughput environments.
Is a cutter available for the Toshiba HSP100, and can it be added after purchase?
Yes, a cutter is listed as an optional upgrade for the HSP100; the product data does not specify whether it can be field-installed after initial purchase, so confirming installation requirements with your supplier is recommended.
What are the power requirements for the Toshiba HSP100 receipt printer?
The HSP100 operates on 24 V DC input, supplied by a power adapter rated for 100–240 V AC input with a 24 V DC, 2.5 A output, making it compatible with standard international AC power sources.
