Toshiba

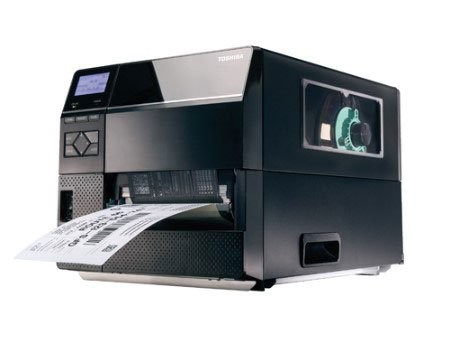

Toshiba B-EX6T3 Barcode Printer 6", 203 DPI, 12 IPS, USB+LAN+WLAN, RFID, Flat Head

SKU:

BEX6T3GS12QMRM04

Toshiba 6 RFID is an industrial 6-inch thermal transfer barcode and label printer built for high-volume label production with optional RFID tag encoding and application. It delivers 203 dpi resolution, up to 12 ips print speed, and USB, LAN, and WLAN connectivity for streamlined use in demanding industrial environments.
Description
ico-plus ico-minus

The Toshiba EcoPrintPro 6-Industrial (Toshiba B-EX6T3 platform) is a rugged 6-inch industrial label printer designed for high-volume commercial and warehouse environments. Combining thermal transfer and direct thermal technologies with a flat-head print engine, it produces sharp barcodes, text and graphics at selectable 203 or 305 dpi resolutions. Built for logistics, manufacturing, distribution and centralized labeling stations, the platform delivers reliable throughput—up to 12 ips (approx. 305 mm/s)—while offering flexible media handling and optional modules such as peelers, rewinders, cutters and RFID to match diverse workflows. Robust connectivity and broad command-language support make integration into existing systems straightforward, reducing downtime and improving operational efficiency.

Key Features

  • Wide-format capability: 6-inch maximum print width supports larger shipping, pallet and product labels for industrial applications.
  • Dual print technologies: Thermal transfer and direct thermal options provide flexibility for durable or heat-sensitive label needs.
  • High throughput: Up to 12 ips (≈305 mm/s) enables fast, continuous printing to meet high-volume production demands.
  • Selectable high resolution: 203/305 dpi choices deliver crisp barcodes and fine text for reliable scanning and traceability.
  • Integration-friendly connectivity: USB and Ethernet interfaces and support for TOSHIBA TPCL, ZPL II and DPL simplify deployment in mixed environments.
  • Modular expandability: Optional peeler, rewinder, cutter and RFID module options allow configuration to specific workflow requirements.

Specifications

  • Brand: Toshiba
  • Model: B-EX6T3 (EcoPrintPro 6-Industrial)
  • Printing Technology: Thermal transfer / Direct thermal
  • Print Head Type: Flat head (near-edge design)
  • Print Resolution: 203, 305 dpi
  • Maximum Print Speed: 305 mm/s (12 ips)
  • Maximum Print Width: 168 mm (6 in)
  • Maximum Print Length: 1498 mm
  • Interfaces / Connectivity: USB, Ethernet
  • Supported Printer Languages: TOSHIBA TPCL, ZPL II, DPL
  • RAM: 256 MB
  • Flash Memory: 512 MB
  • Maximum Roll Diameter: 203 mm
  • Core Diameter (inside): 76.2 mm
  • Supported Material Thickness: 0.13 - 0.25 mm
  • Dual Ribbon Motors: Yes
  • RFID Module (Optional): Yes
  • Dimensions: 331 x 460 x 310 mm (13.03 x 18.11 x 12.20 in)
  • Weight: 20 kg (44.1 lb)

Main Features

  • RFID: Yes

  • Rugged: Industrial

  • Print Speed: 12 in/s

  • DPI: 203 dpi

  • Connection: USB, Ethernet, WLAN/Wi-Fi

  • Max Width: 6 mm

Documents
ico-plus ico-minus
Product document b-ex6t3.pdf BEX6T3GS12QMRM04 Product document b-ex6t3.pdf MOD-B-EX6T3
FAQs
ico-plus ico-minus
What print resolutions does the Toshiba B-EX6T3 support, and how fast does it print?
The Toshiba B-EX6T3 offers selectable print resolutions of 203 dpi and 305 dpi, and reaches a maximum print speed of 305 mm/s (12 ips).
What is the maximum print width and maximum print length the Toshiba B-EX6T3 can handle?
It supports a maximum print width of 168 mm (6 inches) and a maximum print length of 1,498 mm, making it well suited for wide-format shipping, pallet, and product labels.
Which connectivity interfaces and printer command languages does the Toshiba B-EX6T3 support?
The printer comes standard with USB and Ethernet interfaces and supports TOSHIBA TPCL, ZPL II, and DPL command languages, simplifying integration into mixed-vendor environments.
Can the Toshiba B-EX6T3 be configured with optional modules such as a cutter or RFID?
Yes, the B-EX6T3 platform supports optional add-on modules including a peeler, rewinder, cutter, and an RFID module, allowing the printer to be tailored to specific workflow requirements.
What printing technologies does the Toshiba B-EX6T3 use, and what media thickness range does it accept?
It supports both thermal transfer and direct thermal printing through a flat-head print engine, and accommodates media with a thickness between 0.13 mm and 0.25 mm.
How much onboard memory does the Toshiba B-EX6T3 have, and what is the maximum ribbon roll diameter it accepts?
The B-EX6T3 is equipped with 256 MB of RAM and 512 MB of flash memory, and accepts ribbon rolls up to 203 mm in diameter with a 76.2 mm core.
