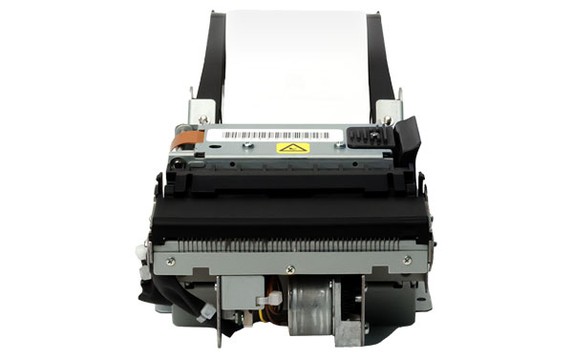

Star Micronics Sanei SK1-211, Cutter, USB, RS232, Presenter, Black
37963754
Select model
The Star SK1-211 Barcode Label Printer is a versatile, compact solution designed for high-demand kiosk applications. Offering impressive print speeds of up to 250mm/sec with a crisp 203 dpi resolution, this printer adapts seamlessly to various environments. Available in both standard and vertical formats, it features easy drop-in paper loading and multiple interface options. With StarPRNT emulation, software developers can effortlessly integrate this printer into existing systems, making it an ideal choice for developers looking to enhance their kiosks.
Key Features:
- High-Speed Printing: Up to 250mm/sec
- Adaptable, Modular Design: Multiple formats and options
- StarPRNT Emulation: Simplifies integration
- Front Paper Loading: Convenient design
- Available Options: Standard Presenter, LED Presenter, Anti-Jam Bezel, Large Paper Roll Holder
Specifications:
- Printer Method: Direct Line Thermal
- Max Print Speed: 250mm/sec
- Paper Width: 58mm, 60mm
- Print Width: 54mm, 56mm
- Paper Roll Holder: SK1-211: 120mm | SK1-221: 83mm | SK1-24: 83mm
- Resolution: 8 dots/mm (203dpi)
- Font: 8x16, 12x24 dots
- Bar Code: JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E
- 2D Bar Code: QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix
- Interface: Dual Serial (RS232C) & USB (V2.0 FULL SPEED)
- Cutter: Full and Partial Cut (Command Selectable)
- Operating Voltage: DC 24V
- Dimensions: 104 x 137 x 79 (wxhxd) mm
- Reliability: Max Cycles Before Failure - 200 Million Pulses | Print Head - 150km | Auto Cutter - 2 Million Cuts
- Safety Standards: CE, FCC, VCCI
Main Features
-
POS: Yes
-
Connection: Serial, USB
-
Printing Technology: Direct Thermal
| Technical Information | |
|---|---|
| Recommended Use | Label/Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 9.84 in/s |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 2" |
| Application/Usage | Desktop |
| Features |
|
| Installation | Horizontal |
| Print Technology | Direct Thermal |
| Interfaces/Ports | |
|---|---|
| Serial Port | Yes |
| USB Host | Yes |
| USB | Yes |
| Cutter | |
|---|---|
| Cutter | Yes |
| Cutting Method | Automatic |
| Cutter Type | Guillotine |
| Cut Type | Full Cut |
| Cutter Life | 2000000 Cuts |
| Media Types & Handling | |
|---|---|
| Media Type |
|
| Media Sensor |
|
| Media Thickness | 5.91 mil |
| Maximum Roll Diameter | 4.72" |
| Maximum Label Width | 2.20" |
| Fonts & Emulation | |
|---|---|
| Language Emulation | ESC/POS |
| Power Description | |
|---|---|
| Power Source | Power Adapter |
| Physical Characteristics | |
|---|---|
| Height | 3.4" |
| Width | 4.1" |
| Depth | 5.7" |
| Weight (Approximate) | 1.16 lb |
| Miscellaneous | |
|---|---|
| Platform Supported |
|
