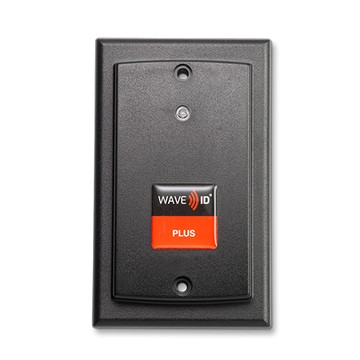

RFI - WAVE ID PLUS W/ICLASS & SEOS SURFACE MOUNT BLACK ETHERNET/IP POE READER

The rf IDEAS WAVE ID SP Plus RFID Reader combines cutting-edge technology with a sleek design, making it an ideal choice for both desktop and external mount applications. This ultra-slim reader supports dual and single frequency reading, enabling versatile use for identification, authentication, and logical access. With its compact form factor, the WAVE ID SP Plus can be seamlessly integrated into various devices like kiosks and time clocks, offering flexibility for both new and existing card systems.

• Dual Frequency Support: Choose between dual and single frequency options for enhanced functionality.
• Compact Design: Ultra-slim profile allows for easy installation in varied environments.
• User-selectable Volume Control: Adjustable beeper settings suitable for high noise or quiet areas.
• Auto-tuning Antenna: Optimizes performance in different conditions.
• Multiple Badge Configurations: Supports four ID badge configurations to accommodate diverse systems.

• Model: RDR-805H1AKU WAVE ID SP Plus Keystroke Reader
• Operating Frequency: 125/132 kHz and 13.56 MHz
• Interface: USB
• Dimensions: Height 0.6" x Width 2.0" x Length 3.0"
• Weight: 2.7 oz (76.6 gm)
• Operating Temperature Range: -22°F to 150°F (-30°C to 65°C)
• Power Consumption: 70 mA typical, 100 mA maximum
• Compatible Operating Systems: Windows XP®, 7®, 8.1, 10® and Linux
• Certifications: FCC, CE Mark, RCM, IC, UL
