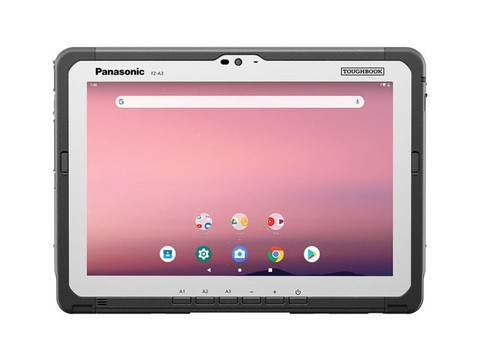

Panasonic FZ-A3 Rugged Tablet 10.1in WUXGA, 4GB, 64GB, DGPS, 4G LTE Band 14, NFC

The Panasonic FZ-A3 Mobile Computer (TOUGHBOOK A3) is a fully rugged 10.1-inch Android tablet engineered for demanding field, logistics, utilities and public-safety deployments. Combining a Qualcomm SDM660 octa‑core processor with 4 GB RAM and 64 GB eMMC storage, the device delivers responsive application performance and on‑device storage for enterprise workflows. Its outdoor‑readable WUXGA/HD touchscreen, glove‑ and rain‑compatible touch modes and high brightness support precise input in bright or wet conditions. Built to MIL‑STD‑810H and IP65 standards with substantial drop and tumble resistance and dual hot‑swappable batteries, the FZ‑A3 provides secure connectivity (Wi‑Fi, Bluetooth 5, NFC, integrated GNSS and optional 4G LTE), robust data capture and extended uptime for mobile teams.

Key Features

• Fully rugged construction: MIL‑STD‑810H certification and IP65 ingress protection provide dust, water and shock resistance for harsh environments.
• Outdoor‑readable touchscreen: 10.1‑inch WUXGA/HD IPS display with anti‑reflection, high brightness and glove/rain compatibility for reliable visibility and input outdoors.
• Hot‑swap dual batteries: Dual, hot‑swappable batteries extend operational uptime—typical runtimes range from about 9 hours (standard) up to 15.5 hours with extended batteries.
• Enterprise connectivity: Integrated GNSS (GPS/GLONASS/Galileo/Beidou/QZSS), optional 4G LTE, Wi‑Fi (802.11 a/b/g/n/ac family) and Bluetooth 5.0 keep teams connected on the move.
• Data capture & security: NFC, optional smartcard reader or barcode accessory support, ARM TrustZone security and front/rear cameras support secure identification and efficient field workflows.
• Practical performance: Qualcomm SDM660 octa‑core processing with 4 GB RAM and 64 GB eMMC storage offers a balanced platform for enterprise applications and multi‑tasking.

Specifications

• Product Name: Panasonic FZ‑A3 Mobile Computer / TOUGHBOOK A3 Rugged Tablet
• Brand: Panasonic
• Category: Rugged Tablet / Mobile Computer
• Operating System: Android 9.0 (Pie) or Android 11 (varies by configuration)
• Processor: Qualcomm SDM660 (Snapdragon 660) octa‑core
• CPU Clock Speed: 2.2 GHz (typical configuration)
• Memory (RAM): 4 GB
• Internal Storage: 64 GB eMMC 5.1
• Expandable Storage: microSD / microSDHC / microSDXC up to 64 GB
• Display Size: 10.1 in
• Display Type: Outdoor‑readable WUXGA / HD IPS with anti‑reflection
• Display Resolution: 1920 x 1200 px
• Display Brightness (typical/max): 500 nit / 800 nit
• Touchscreen: Capacitive 10‑finger multi‑touch; rain sensing, glove touch, direct bonding
• Rear Camera: 8 MP (autofocus, LED flash)
• Front Camera: 5 MP
• Connectivity: IEEE 802.11 a/b/g/n/ac (2.4GHz & 5GHz) MIMO, Bluetooth 5.0 Class 1, NFC (ISO/IEC 14443 A/B, FeliCa, ISO/IEC 15693)
• Cellular: 4G LTE (optional WWAN configurations; some variants include Sierra Wireless EM7511 with Band 14 support)
• GNSS / GPS: Integrated GPS / GNSS (GPS, GLONASS, Galileo, Beidou, QZSS)
• Ingress Protection: IP65
• Military Standard: MIL‑STD‑810H
• Drop Resistance: Up to 1.5 m (approx. 6 ft)
• Tumble Test: 500 tumbles at 3.3 ft, 5 rpm (select configurations)
• Battery Life (standard profile): Up to 9 hours
• Battery Life (extended profile): Up to 15.5 hours
• Standard Battery Capacity (per battery): 3200 mAh
• Extended Battery Capacity (per battery): 5580 mAh
• Battery Type / Features: Li‑Ion, hot‑swappable dual batteries
• USB Ports: 1 x USB 3.0 Type‑C (OTG, BC1.2), 1 x USB 2.0 Type‑A (host)
• Headset / Audio: Headset port and integrated microphone; loudspeaker level approx. 94 dB
• Other Ports & Interfaces: Docking connector, dual antenna connector, configurable Panasonic accessory port options
• Sensors: Accelerometer, Ambient light, Compass, Gyro, Proximity
• Dimensions (W x L x H): 272 x 196 x 16.4 mm (approx. 10.7 x 7.72 x 0.65 in)
• Weight: Approximately 885 g (1.98 lb)
