Opticon

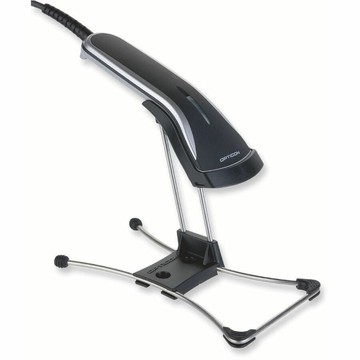

Opticon SwiftScan 100X Barcode Scanner 1D, Laser, 100 scans/s, Corded, Short Range, USB

SKU:

OPR2001ZWE-00

Opticon OPR2001 Barcode Scanner — Opticon SwiftScan 100X. A compact and efficient barcode scanning solution from Opticon designed for streamlined data entry and point-of-sale use. Key attributes: - Scanner type - Connectivity - Data capture - Scanning speed - Code type - Supported 1D symbologies - Form factor - Scanner range
Description
ico-plus ico-minus

Delgado y ultra-ligero. Ofrece la combinación perfecta de rendimiento, durabilidad y estilo. Sienta bien en la mano y se ve muy bien en el mostrador. Diseñado para aplicaciones comerciales. Rápido escáner láser de 100 lecturas / segundo. Elección de interfaces - USB, emulación de teclado y RS232. Resiste caída de cinco pies a hormigón. Calificación IP42 - sellado contra el polvo y la humedad. Modos de disparo: manual, automático y detección de soporte. Se suministra con soporte

Main Features

  • Rugged: Commercial

  • POS: Yes

  • Case color: Black

  • Connectivity: Corded

  • Connection: RS232, USB

  • Scanner Capability: 1D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Barcode Symbology Supported

1D:

  • JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

Postal code:

  • Chinese Post, Korean Postal Authority code
Light Source Laser
Scan Rate 100 scan/s
Scan Mode Trigger
Depth of Field

Depth of field At PCS 0.9, Code 39:

  • 40 - 500 mm / 1.57 - 19.69 in (1.0 mm / 39 mil)
  • 20 - 350 mm / 0.79 - 13.78 in (0.5 mm / 20 mil)
  • 20 - 200 mm / 0.79 - 7.87 in (0.25 mm / 10 mil)
  • 20 - 100 mm / 0.79 - 3.94 in (0.15 mm / 6 mil)
  • 30 - 70 mm / 1.18 - 2.76 in (0.127 mm / 5 mil)
Scan Pattern Bi-directional
Scanning Distance 19.69"
Features
  • Notification LED
  • Vibration
  • Scan Button
Number of Keys 1
Reading Angle (Skew) 50°
Reading Angle (Pitch) 35°
Maximum Ambient Light 50000 lux
Drop Specification
  • 1.5 m / 5 ft drop onto concrete surface
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 39 mil
Interfaces/Ports
Host Interface Keyboard Wedge
Power Description
Input Current 150 mA
Environmental Conditions
Operating Temperature 23°F (-5°C) to 122°F (50°C)
Storage Temperature -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing) 10% to 90%
Physical Characteristics
Form Factor Hands-free
Color Family Black
Product Color Black
Product Material Acrylonitrile Butadiene Styrene (ABS)
Height 5.9"
Width 2.2"
Depth 1.2"
Weight (Approximate) 2.12 oz
Miscellaneous
Ingress Protection (IP) Rating IP42
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Documents
ico-plus ico-minus
Product document mod-opr2001-opticon-readers-datasheet.pdf MOD-OPR2001 Product document mod-opr2001-opticon-readers-user-manual.pdf MOD-OPR2001
