Magicard

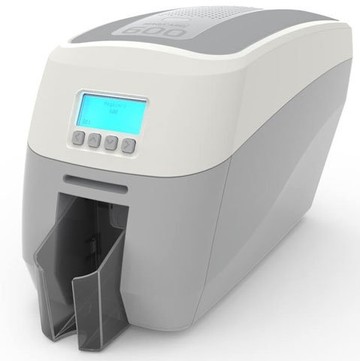

Magicard 600, Dual-Sided, Magnetic Stripe Encoding & Elatec Smart Card Encoding

SKU:

3652-5024/2

MAGICARD 600, DOUBLE SIDED DTC PRINTER, SMART CARD AND MAG ENCODER, 600DPI, USB, DIGITAL SHREDDING, 3YR WARRANTY
Description
ico-plus ico-minus

The Magicard 600 ID Card Printer is your ultimate solution for high-resolution, secure, and efficient card printing. Seamlessly integrating into existing infrastructures, this state-of-the-art printer delivers vibrant colors and intricate details at a print speed of under 20 seconds per card. Offering standard Wi-Fi connectivity and an array of encoding options, including **magnetic stripe** and **smart card** capabilities, the Magicard 600 is designed to meet the highest standards in security compliance. With robust software updates and a comprehensive three-year warranty, you can print with confidence while improving your organization's ID management today.


Key Features:

  • High-Resolution Printing: Delivers detailed prints at 600 x 300 dpi.
  • Fast Performance: Prints up to 200 cards per hour with Holokote®.
  • Enhanced Security: Customizable HoloKote® watermark for added visual protection.
  • Wi-Fi Connectivity: Easy connection via supplied dongle.
  • Plug and Play: Simplifies setup with USB integration.
  • 3-Year Warranty: Comprehensive coverage ensures peace of mind.

Specifications:

  • Print Mode: Colour dye sublimation, monochrome thermal, rewritable.
  • Print Speed: Colour: 19 seconds, Monochrome: 5 seconds.
  • Card Capacity: 100 card feeder, 70-card stacker.
  • Interfaces: High Speed USB 2.0, USB 3.0, 10/100 Ethernet, Wi-Fi.
  • Operating Environment: 10°C to 30°C / 50°F to 85°F.
  • Card Types: CR80/CR79 PVC, magnetic stripe, smart cards, HoloPatch.
  • Weight: 4.7 kg / 10.4 lb.
  • Dimensions: 475.5mm L x 211.5mm W x 248mm H.

Main Features

  • Printing Side: Double Side

  • Use Frequency: Between 500 and 5000 cards

  • Connection: USB, Ethernet

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Card Print
Print Color Capability Color
Printing Capability Double Sided
Maximum Mono Print Speed 5 Second
Maximum Color Print Speed 19 Second
Maximum Print Resolution (dpi) 600 x 300
Application/Usage Desktop
Connectivity Technology Wireless
Print Technology Dye Sublimation/Thermal Transfer
Interfaces/Ports
USB Host Yes
USB Yes
Network & Communication
Ethernet Yes
Ethernet Technology Fast Ethernet
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11b/g/n
Media Types & Handling
Media Type
  • Magnetic Stripe Card
  • Smart Card
  • Card
  • Self-adhesive Card
Media Size
  • CR-80 Card
  • CR79 Card
Software
Operating System Supported Windows 7, 8, 10 (32 and 64bit) Windows server 2008, 2012, 2016. Linux with CUPS support and Mac OS X 10.9.0 upwards.
Power Description
Power Source AC Supply
Input Voltage
  • 120 V AC
  • 230 V AC
Environmental Conditions
Operating Temperature 50°F (10°C) - 86°F (30°C)
Physical Characteristics
Height 9.8"
Width 8.3"
Depth 18.7"
Weight (Approximate) 10.36 lb
Miscellaneous
Package Contents
  • Magicard 600 ID card printer
  • Printer power supply
  • USB cable
  • Input and output card hoppers
  • Driver installation disk
  • USB Dongle (Wi-Fi via supplied dongle.)
Cables Included USB
Platform Supported
  • PC
  • Mac
Country of Origin Great Britain
Warranty
Limited Warranty 3 Year
