Juniper Networks

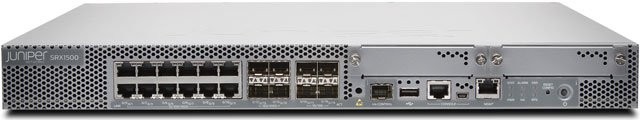

Juniper Networks SRX1500-AC Firewalls & VPN

SKU:

SRX1500-AC

SRX1500 with 16x1G, 4x10G (SFP+) on-board ports, 1x AC PSU and 120GB SSD
Description
ico-plus ico-minus

The Juniper Networks SRX1500 Services Gateway is an advanced next-generation firewall that combines robust security features with high-performance networking capabilities. Tailor-made for enterprise campuses and data centers, it offers 9 Gbps of firewall performance, ensuring scalability and reliability. Powered by Junos OS, this firewall seamlessly integrates networking and security, supporting the management of up to 3,500 applications. With its exceptional application visibility and control, the SRX1500 not only safeguards critical assets from evolving threats but also enhances operational efficiency and compliance with industry standards.


Key Features

  • High Performance: Delivers up to 9 Gbps of firewall performance.
  • Application Visibility: Monitors over 3,500 applications for fine-grained traffic control.
  • Integrated Security: Combines intrusion prevention, antivirus, and threat intelligence.
  • Scalable Solutions: Supports dynamic networking and cloud connectivity.
  • Easy Management: Features user-friendly on-box GUI and centralized management tools.

Specifications

  • Form Factor: 1U
  • Processor: x86-based security compute engine
  • Ports: 16x1GbE, 4x10GbE
  • Memory: 16GB RAM, 16GB mSATA boot storage, 120GB SSD
  • Firewall Performance: 9 Gbps
  • IPS Performance: 3 Gbps
  • IPsec VPN Performance: 4 Gbps
  • Security Policies: Up to 16,000
  • Maximum Concurrent Sessions: 2 million
  • Operating Temperature: 32° to 104° F
  • Weight: 16.1 lb (7.3 kg)
Technical Specifications
ico-plus ico-minus
Technical Information
Firewall Protection Supported
  • Intrusion Prevention
  • Antivirus
  • Anti-spam
  • Distributed Denial of Service (DDoS)
  • URL Filtering
  • Dead Peer Detection
  • Threat Protection
  • Application Control
  • Network Protection
  • Malware Protection
  • AntiBot
Encryption Standard
  • AES (256-bit)
  • DES
  • MD5
  • SHA-1
  • 3DES
  • SHA-256
Interfaces/Ports
Total Number of Ports 12
USB Yes
Number of Network (RJ-45) Ports 12
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Standard 10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots 11
Expansion Slot Type
  • SFP+
  • SFP (mini-GBIC)
Number of SFP Slots 5
Number of SFP+ Slots 4
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7"
Width 17.5"
Depth 18.2"
Weight (Approximate) 16.09 lb
Miscellaneous
Country of Origin Malaysia
Environmentally Friendly Yes
Documents
ico-plus ico-minus
Product document srx1500.pdf SRX1500-AC Product document srx1500.pdf MOD-JUNIPER-SRX1500
