Juniper Networks

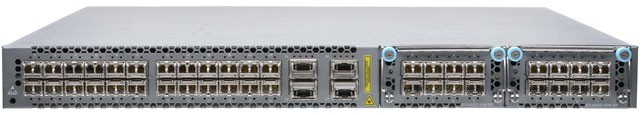

Juniper Networks EX4600-40F-DC-AFO Ethernet Switch

SKU:

EX4600-40F-DC-AFO

EX4600, 24 SFP+/SFP ports, 4 QSFP+ ports, 2 expansion slots, redundant fans, 2 DC power supplies, front to back airflow
Description
ico-plus ico-minus
The Juniper Networks EX4600 Ethernet Switch is engineered to deliver exceptional data center-class performance and high availability for campus distribution deployments. This compact 1U switch supports fixed and modular connectivity options, including **24 wire-speed 10GbE** and **4 wire-speed 40GbE** ports, offering unrivaled flexibility for data centers and enterprise networks. With its advanced Virtual Chassis technology, businesses can easily scale their network while ensuring efficient resource utilization, paving the way for a seamless transition from 1GbE to 10GbE environments.

Key features:
  • High Performance: Up to **1.44 Tbps** switching capacity.
  • Redundant Power Supplies: Dual power options for enhanced reliability.
  • Scalable Design: Supports up to **72 wire-speed 10GbE** connections.
  • Virtual Chassis Technology: Connects up to **10 switches** as one device.
  • Energy Efficient: Consumes less than **5 watts** per 10GbE interface.


Specifications:
  • Switching Capacity: **1.44 Tbps**/ **1.07 Bpps**
  • Dimensions: **1.72 x 17.36 x 20.48 in** (4.37 x 44.09 x 52.02 cm)
  • Weight: **21.7 lb** (9.84 kg)
  • Ports:
    • **24 SFP+/SFP ports**
    • **4 QSFP+ ports**
  • Cooling: Front-to-back or back-to-front airflow options
  • Power Supply: Dual redundant **AC/DC options**
  • Management: CLI, Junos Web Software, and SNMP support

Main Features

  • Connection: USB

Technical Specifications
ico-plus ico-minus
Interfaces/Ports
Token Ring Port No
LRE Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Port/Expansion Slot Details
  • 24 x 10 Gigabit Ethernet Expansion Slot
  • 4 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology
  • 10 Gigabit Ethernet
  • 40 Gigabit Ethernet
Network Technology
  • 10GBase-X
  • 40GBase-X
I/O Expansions
Total Number of Expansion Slots 30.0
Expansion Slot Type
  • SFP+
  • QSFP+
Number of SFP+ Slots 24
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
  • Junos Space Network Director
  • Command Line Interface (CLI)
  • Telnet
  • SSH
  • SNMP v1/v2/v3
  • sFlow v5
  • MIB
  • QoS
  • RMON
  • VLAN
Power Description
PoE (RJ-45) Port No
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7"
Width 17.4"
Depth 20.5"
Weight (Approximate) 21.40 lb
Miscellaneous
Package Contents
  • EX4600 Ethernet Switch
  • 2 x DC Power Supply
Certifications & Standards

IEEE Standards

  • 802.1D
  • 802.1w
  • 802.1
  • 802.1Q
  • 802.1p
  • 802.1ad
  • 802.3ad
  • 802.1AB
  • 802.3x
  • 802.1Qbb
  • 802.1Qaz
  • 802.1Qau
  • 802.1Qbg

Safety:

  • CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment-Safety
  • UL 60950-1 (2nd Ed.) Information Technology Equipment-Safety
  • EN 60950-1 (2005) Information Technology Equipment-Safety
  • IEC 60950-1 (2005) Information Technology Equipment-Safety (All country deviations): CB Scheme report.
  • EN 60825-1 +A1+A2 (1994) Safety of Laser Products-Part 1: Equipment Classification
  • GR-63-Core (2006) Network Equipment, Building Systems (NEBS) Physical Protection
  • GR-1089-Core (2006) EMC and Electrical Safety for Network Telecommunications Equipment
  • SR-3580 (1995) NEBS Criteria Levels (Level 3)

EMC:

  • FCC 47CFR, Part 15 Class A (2009) USA Radiated Emissions
  • EN 55022 Class A (2006)+ A1 2007 European Radiated Emissions
  • VCCI Class A (2007) Japanese Radiated Emissions
  • BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
  • AS/NZS CISPR22:2009
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document ex4600.pdf EX4600-40F-DC-AFO Product document ex4600.pdf MOD-JUNIPER-EX4600
