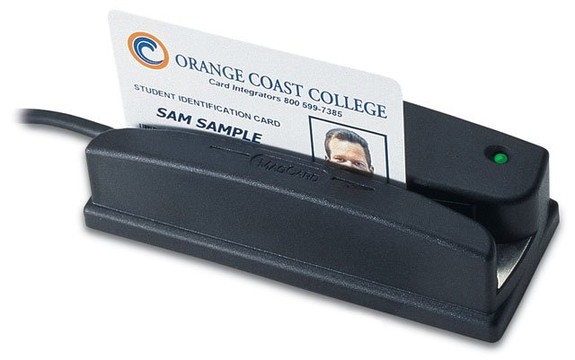

ID Tech WCR3227-633UC Card Readers

The ID Tech Omni Barcode Card Reader is the ultimate solution for reliable and efficient reading of both barcodes and magnetic stripes. Engineered with a robust die-cast metal base and weatherproof design, it withstands heavy-duty use in demanding environments such as access control systems and self-service kiosks. The Omni stands out with its ability to read up to three tracks in a single swipe, offering versatile data output options including TTL, USB, and RS232. With a commitment to reliability, it ensures consistent performance for a minimum of 1,000,000 passes, making it an essential tool for businesses that prioritize efficiency and durability.

Key Features

• Multi-functional: Reads both bar code and MagStripe media
• High capacity: Reads up to 3 tracks of information in either direction
• Rugged design: Heavy-duty construction with a die-cast metal base
• Versatile interfacing: Supports TTL, USB/KB, USB/RS232, and Wiegand
• Customizable output: Programmable data formatting and settings
• Extended Reliability: Validated for a minimum of 1,000,000 cycles

Specifications

• Electrical:
  • Power Requirements: +5 VDC +/-10%
  • Magnetic Stripe: 30mA Max
  • Bar Code: 35mA Max
• Environmental:
  • Operating Temperature: 32°F to 131°F (0°C to 55°C)
  • Storage Temperature: -31°F to 158°F (-35°C to 70°C)
  • Humidity: Maximum 95% non-condensing
  • Weatherproof Temperature: IP-53 Rating
• Reliability:
  • Operating Life: 1,000,000 cycles
  • Warranty: One year, parts and labor
• Mechanical:
  • Media Thickness: 0.005 inches to 0.050 inches
  • Swipe Speed: 5 to 65 inches/second for bar codes
  • Dimensions: 5 x 2.05 x 1.38 inches
  • Weight: 1.4 lbs.
  • Cable Length: 6-foot straight cable
