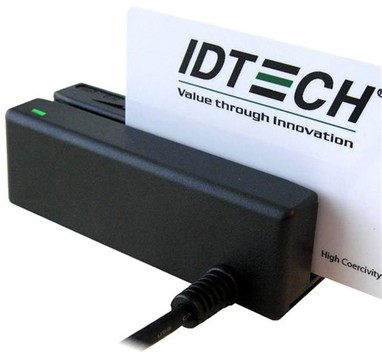

ID Tech IDMB-335133BM Card Readers

The ID Tech MiniMag Credit Card Reader combines compact design with robust functionality, making it an ideal choice for applications where space is limited. This intelligent magstripe reader can read up to three tracks of card data at any swipe speed or direction, ensuring reliable performance in a variety of settings—from POS systems to loyalty programs. Its versatile mounting options and easily configurable settings make it perfect for businesses requiring efficiency without compromising on quality.

• Multiple Interfaces: Includes KB, RS232, USB-KB, USB-CDC, and USB-HID.
• Customizable Output: User-friendly Windows-based configuration software for formatting card data.
• High Reliability: Capable of 1,000,000 passes with clear indicators for successful readings.
• Flexible Mounting Options: Designed for easy installation with threaded inserts or Velcro.
• Two-Year Warranty: Comprehensive parts and labor coverage from the date of purchase.

• Electrical:
  • Power: +5 VDC +/-10%
  • Operating Current: 1mA per track max when reading.
  • Usage: Up to 70mA for various USB interfaces.
• Mechanical:
  • Dimensions: 3.54" (L) x 1.34" (W) x 1.10" (H)
  • Weight: Approximately 4.6 oz.
  • Cable Length: 6-foot side exit cable.
• Environmental:
  • Operating Temperature: 32°F to 131°F (0°C to 55°C)
  • Storage Temperature: -22°F to 158°F (-30°C to 70°C)
  • Humidity: Maximum 95% non-condensing.
• Magnetic Head Life: Minimum 1,000,000 passes.
• Warranty: Two years, parts and labor.
