Honeywell

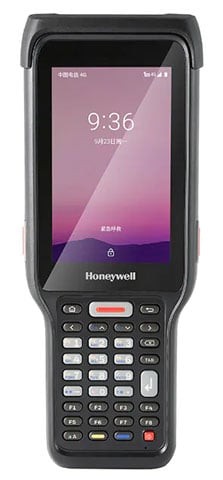

Honeywell EDA61K Mobile Computing Numeric Keypad, WLAN, 3GB, 32GB, IP65

SKU:

EDA61K-0NC934PEUK

Honeywell EDA61K Mobile Computing device: a rugged handheld designed for enterprise data capture, scanning and mobile workflows. Built for field and warehouse use, it supports barcode scanning, network connectivity and durable construction to meet demanding environments. Attributes: battery_capacity, connectivity, ip_rating, keypad, keypad_type, scan_engine, scan_engine_model, scan_engines, gps, rfid, ssd, specs, hot_swap_battery, hot_swappable_battery, operating_system, display_size, camera_resolution, ram, internal_storage, flash_storage, cellular_connectivity, scan_range, wifi_standards, bluetooth_version, nfc, drop_resistance
Description
ico-plus ico-minus

The Honeywell ScanPal™ EDA61K enterprise mobile computer is engineered for small and medium businesses, optimizing mission-critical workflows in various environments, including warehouses, distribution centers, and retail backrooms. Its rugged design ensures reliability under challenging conditions, while the lightweight, ergonomic build minimizes user fatigue. With outstanding battery life lasting over two shifts and customizable keypad options, the EDA61K empowers businesses to efficiently manage inventory and adapt quickly to seasonal demands, all while benefiting from robust Android compatibility and advanced scanning capabilities.


Key Features
  • Responsive Performance: Powered by a Qualcomm 1.8 GHz octa-core chipset with ample memory.
  • Data Capture: Scans from a few centimeters to 15 meters with advanced imaging technology.
  • Extended Battery Life: Hot-swappable 7,000 mAh battery lasts 25 hours on a single charge.
  • Connect Anywhere: Supports 4G LTE, Wi-Fi, and Bluetooth 4.2 connectivity.
  • Durable Design: Survives repeated drops and designed for various environmental conditions.

Specifications
  • Dimensions: 206 mm x 78 mm x 41.9 mm (8.1 in x 3.1 in x 1.6 in)
  • Weight:
    • N6703 version: 435 g (15.3 oz)
    • EX20 version: 460 g (16.2 oz)
  • Display: 4-inch multi-touch capacitive with LED backlight
  • Operating System: Android 9, upgradeable to Android 10
  • Battery: Li-Ion, 3.6V, 7,000 mAh
  • Connectivity: Dual-band 802.11 a/b/g/n/ac, Bluetooth Class 4.2, cellular support
  • Environmental Sealing: IP65
  • Drop Resistance: Multiple 1.5 m (5 ft) drops

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • IP Rating: IP65

  • Range: Standard Range

  • Connection: Bluetooth, WLAN/Wi-Fi, USB

  • Keyboard: 34 Key Function Numeric

  • Camera: 13MP

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wired/Wireless
Scanning Capability
  • 1D
  • 2D
Scan Engine Model N6703
Image Sensor Type Imager
Scanner Range Standard Range
Scanning Distance 49.21 ft
Google Mobile Services (GMS) Yes
Features Lightweight
Drop Specification

Multiple 1.5 m (5 ft) drops to concrete at room temperature
Processor & Chipset
Processor Manufacturer Qualcomm
Processor Type Snapdragon
Processor Model SDM450
Processor Core Octa-core (8 Core)
Processor Speed 1.80 GHz
Memory
Standard Memory 3 GB
Flash Memory 32 GB
Memory Card Supported microSDHC
Display & Graphics
Screen Size 4"
Screen Mode WVGA
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Keyboard/Keypad
Number of Keys 34
Keyboard Type Numeric
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/r/ac
Bluetooth Yes
Bluetooth Standard Bluetooth 4.2
Cellular Network Supported
  • WCDMA
  • CDMA
Cellular Data Connectivity Technology
  • LTE
  • 4G
  • 3G
  • 2G
GPS Yes
Interfaces/Ports
USB Yes
USB Type-C Yes
Camera
Front Camera Yes
Front Camera Resolution 13 Megapixel
Software
Operating System Android 9.0 Pie
Upgradable Operating System Android 10
Power Description
Power Source Battery
Battery Information
Battery Capacity 7000 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Maximum Battery Run Time 25 Hour
Battery Voltage 3.60 V
Maximum Battery Recharge Time 5.50 Hour
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing) 10% to 90%
Physical Characteristics
Form Factor Full-size/Gun
Rugged Yes
Weight (Approximate) 15.34 oz
Miscellaneous
Package Contents
  • ScanPal EDA61K Handheld Terminal
  • Extended Battery
Application/Usage
  • Warehouse
  • Distribution
  • Retail
  • Cold Storage
  • Backroom Inventory Management
  • Inventory Management
Ingress Protection (IP) Rating IP65
Warranty
Limited Warranty 1 Year
Additional Warranty Information

One-year factory warranty
Documents
ico-plus ico-minus
Product document eda61k.pdf MOD-EDA61K
