Honeywell

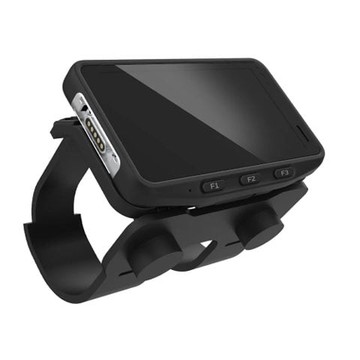

Honeywell CW45 Wearable Mobile Computer Wi‑Fi 6, 6GB RAM, 64GB Flash, 4.7 in Display, IP65/IP67, 21-Key Keypad

SKU:

CW45-X0N-BND10SG

Light in the hand and built for the wrist, the Honeywell CW45 wearable mobile computer combines rugged durability with Wi-Fi 6 connectivity for fast, reliable performance in mobile workflows. It features a 4.7 inch display, Android GMS, 6 GB RAM, 64 GB storage, a 21-key keypad, warm-swap battery support, and IP65/IP67 protection for demanding work environments.
Description
ico-plus ico-minus

The Honeywell CW45 wearable computer is a compact, enterprise-grade mobile device designed to enable hands-free and arm-worn workflows across warehouses, retail, logistics and field service operations. Built for continuous use in demanding environments, the CW45 combines rugged IP65/IP67 and MIL-STD-810H protection with modern connectivity and data-capture features to keep frontline teams productive. Its 4.7-inch HD display, versatile input options (keypad, touchscreen and function keys), multiple camera options and removable battery choices deliver a balance of performance, comfort and operational continuity for shift-based deployments where fast scanning, reliable wireless access and long runtimes matter.

Key Features

  • Rugged reliability: IP65/IP67 sealing, MIL-STD-810H compliance and 1.8 m drop resistance protect the device in industrial and field environments.
  • Modern connectivity: Wi‑Fi 6, 2x2 MU‑MIMO, Bluetooth 5.1 (BLE) and NFC enable fast, stable connections and easy pairing with peripherals and networks.
  • Flexible input and capture: Combined touchscreen, keypad/21-key options and professional 1D/2D scanning support adaptable workflows and faster data entry.
  • Responsive performance: Qualcomm octa-core platform with 6 GB RAM and 64 GB flash storage supports smooth application performance and local data handling.
  • Extended runtime options: Removable battery configurations (standard warm-swap and larger extended capacities) enable uninterrupted operation across long shifts.
  • Clear visibility and imaging: 4.7-inch HD multi-touch display with Gorilla Glass protection plus 13 MP rear and 8 MP front cameras for documentation and verification.

Specifications

  • Brand: Honeywell
  • Product Name: Honeywell CW45 Wearable Computer
  • Model / MPN examples: CW45, CW45-X0N-AND10XG, CW45-X0N-BND10SG, CW45-X0N-BND10XG
  • Form Factor: Wearable mobile computer / portable handheld data collection device
  • Operating System: Android 12 (Android / Android GMS variants)
  • Display Size: 4.7 in
  • Display Resolution: 1280 x 720 px
  • Display Protection: Gorilla Glass 5
  • Display Technology: LED, capacitive multi-touch
  • Processor Family: Qualcomm QCS4290 / QCM4290 (octa-core)
  • Processor Frequency: 2.0 GHz
  • RAM: 6 GB
  • Storage (Flash): 64 GB (UFS)
  • Cameras: 13 MP rear, 8 MP front
  • Scanner Type: 1D/2D (where equipped) / No scanner (some variants)
  • Connectivity: Wi‑Fi 6 (802.11ax), 2x2 MU‑MIMO, Bluetooth 5.1 (BLE), NFC, USB
  • Battery Capacity: 3,400 mAh (standard, warm-swap) and 6,800 mAh (extended) — removable
  • Battery Technology: Lithium‑Ion (Li‑Ion)
  • Ingress Protection: IP65, IP67
  • Durability / Military Standard: MIL‑STD‑810H
  • Impact Resistance (drop): 1.8 m
  • Dimensions: 133 x 86 x 14 mm
  • Weight: 263 g (approx.)
  • Input Methods: Touchscreen, function buttons, keypad (including 21-key and numeric options)
  • Sensors: Accelerometer, ambient light sensor, gyroscope, high gravity sensor
  • Audio / Voice: Microphone, speaker, VoIP / Push-to-Talk support (where specified)
  • Included Accessories: Mount and comfort pad

Main Features

  • Operation System: Android

  • Rugged: Industrial

  • IP Rating: IP67

  • Range: No Scan

  • Connection: USB

  • Optional Upgrades: Wrist Mount

  • Camera: 13MP Rear Facing Camera + 8MP Front Facing Camera

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wired/Wireless
Scanning Capability
  • 2D
  • 1D
Scanner Range FlexRange
Sensor Type
  • Ambient Lighting
  • Light Sensor
  • Accelerometer
  • Gyroscope
  • eCompass
  • Gravity Sensor
Features
  • Water Resistant
  • Gorilla Glass 5
  • Drop Resistant
  • IK08 Impact Protection
  • VoIP
  • Push-to-talk
  • Lightweight
Drop Specification

Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H

Processor & Chipset
Processor Manufacturer Qualcomm
Processor Core Octa-core (8 Core)
Processor Speed 2 GHz
Memory
Standard Memory 6 GB
Flash Memory 64 GB
Memory Card Supported UFS
Display & Graphics
Screen Size 4.7"
Screen Mode HD
Screen Resolution 1280 x 720
Display Screen Type LED
Touchscreen Information
Touchscreen Yes
Multi-touch Screen Yes
Network & Communication
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.1 BLE
Near Field Communication (NFC) Yes
Interfaces/Ports
USB Yes
Camera
Front Camera Yes
Front Camera Resolution 8 Megapixel
Side Camera Yes
Side Camera Resolution 13 Megapixel
Software
Operating System Android
Upgradable Operating System Android 15
Power Description
Power Source Battery
Battery Information
Battery Capacity 3500 mAh
Battery Chemistry Lithium Ion (Li-Ion)
Battery Included Yes
Maximum Battery Run Time 6 Hour
Battery Voltage 3.60 V
Maximum Battery Recharge Time 3 Hour
Removable Battery Yes
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -22°F (-30°C) to 158°F (70°C)
Humidity (Non-condensing) 5% to 95%
Physical Characteristics
Form Factor Wearable
Rugged Yes
Weight (With Battery) 10.30 oz
Miscellaneous
Package Contents
  • CW45 Handheld Terminal
  • Battery
Application/Usage
  • Warehouse
  • Retail
  • Logistics
  • Manufacturing
  • Supply Room
Ingress Protection (IP) Rating
  • IP65
  • IP67
Warranty
Limited Warranty 1 Year
Additional Warranty Information
  • Computer Warranty: One year factory warranty
  • Battery Pack Warranty: One year factory warranty
Documents
ico-plus ico-minus
Product document cw45-2022.pdf CW45-X0N-BND10SG Product document cw45-2022.pdf MOD-CW45
FAQs
ico-plus ico-minus
What wireless connectivity standards does the Honeywell CW45 support for warehouse and logistics deployments?
The CW45 supports Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO for fast network throughput, Bluetooth 5.1 (BLE) for peripheral pairing, NFC for tap-based workflows, and USB for wired connectivity.
How rugged is the Honeywell CW45, and can it handle drops on a warehouse floor?
The CW45 carries IP65 and IP67 ingress protection ratings, meets MIL-STD-810H military standards, and is rated to withstand drops from 1.8 m, making it suitable for continuous use in demanding industrial environments.
What are the battery options available for the Honeywell CW45, and do they support hot-swapping?
The CW45 offers a 3,400 mAh standard removable battery with warm-swap capability and a 6,800 mAh extended removable battery, both using Lithium-Ion technology to support long shift operations without powering down the device.
What processor and memory configuration does the Honeywell CW45 ship with?
It runs on a Qualcomm QCS4290 / QCM4290 octa-core processor at 2.0 GHz, paired with 6 GB of RAM and 64 GB of UFS flash storage.
What cameras does the Honeywell CW45 include, and what operating system does it run?
The CW45 features a 13 MP rear-facing camera and an 8 MP front-facing camera, and it runs Android 12.
What accessories are included with the Honeywell CW45, and is a wrist-mount option available?
The CW45 ships with a mount and comfort pad, and a wrist mount is available as an optional upgrade for arm-worn, hands-free workflows.
