Honeywell

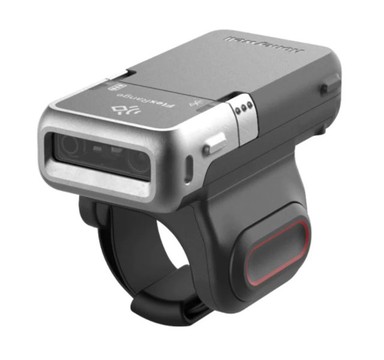

Honeywell 8675i Barcode Scanner, Standard Range, Wearable Ring, Bluetooth 5.1, NFC, IP65, MIL-STD-810

SKU:

8675I100SR-2-N

Honeywell 8675i Wearable Barcode Scanner — Honeywell OmniFlex Ring Scanner is a compact, enterprise-grade wearable scanner from the 8675i series offering reliable hands-free scanning, fast decoding, and durable construction for warehouse, retail, and logistics workflows. Attributes: - form-factor - range-type - supported-symbologies - scanner-range - scan-capability - rfid - healthcare - access-control - linerless - connectivity - ingress-protection - battery-included - trigger-type - scanner-type - connectivity-technologies - ingress-protection-rating - battery-capacity - military-standard-certification
Description
ico-plus ico-minus

The Honeywell 8675i Rugged Compact Wearable Scanner is your ultimate productivity tool designed for demanding workflows. Its ergonomic and lightweight design allows for comfortable use throughout long shifts, ensuring quick and reliable scanning performance even on damaged or low-quality barcodes. With FlexRange™ technology, the 8675i enables extended scanning distances, eliminating the need for bulky handheld devices. The robust construction is rated to endure tough environments, featuring IP65 sealing and operational temperatures from -20 to 50°C.


Key Features
  • Premium scanning performance enhances workflow productivity.
  • Ergonomic design guarantees comfort and ease of use.
  • Multi-shift ready with an easily replaceable smart battery.
  • Operational Intelligence for device management and monitoring.
  • Durable construction withstands tough environments.

Specifications
  • Dimensions: 65.2 mm x 30.3 mm x 15.2 mm (2.6 in x 1.2 in x 0.6 in)
  • Weight: Triggered ring with battery: 86751-SR 639 (2.3 oz), 86751-FR 66g (2.4 oz)
  • Scan Performance: Omni-directional area imager with a minimum symbol contrast of 20% reflectance.
  • Battery: 3.85V, 570mAh with an expected charge time of 3.5 hours.
  • Operating Temperature: -20°C to 50°C (-4°F to 122°F)
  • Environmental Sealing: IP65 rated for moisture and particle intrusion.
  • Drop & Tumble Rating: 1.8m drop tested and 2,000 tumbles at IEC 60068-2-32.

Main Features

  • Rugged: Industrial

  • IP Rating: IP65

  • Connection: NFC

  • Scanner Capability: 1D, 2D, Imager

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Wireless
Scanning Capability
  • 1D
  • 2D
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern
  • Area
  • Omni-directional
Scanner Range Standard Range
Features
  • Notification LED
  • Ergonomic Design
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 6.7 mil
Air Electrostatic Discharge (+/-) 15kV
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 570 mAh
Battery Weight 0.67 oz
Maximum Battery Recharge Time 3.50 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Wearable
Rugged Yes
Durability
  • Dust Resistant
  • Water Resistant
Height 0.6"
Width 1.2"
Length 2.6"
Weight (Approximate) 1.76 oz
Miscellaneous
Ingress Protection (IP) Rating IP65
Application/Usage Warehouse
Platform Supported
  • Android
  • PC
  • iOS
Warranty
Limited Warranty 2 Year
Additional Warranty Information
  • Two-year factory warranty (Note: Battery warranty is one year)
Documents
ico-plus ico-minus
Product document 8675i-2022.pdf 8675I100SR-2-N Product document 8675i-2022.pdf MOD-8675I
