Honeywell

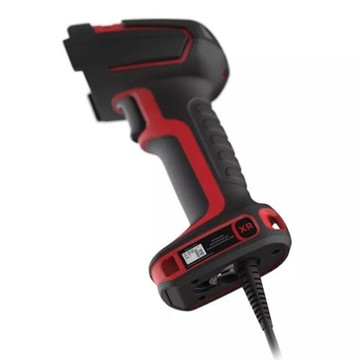

HONEYWELL, GRANIT ULTRA RS232 KIT: TETHERED, RUGGED, 1D/2D, FLEXRANGE, VIBRATOR, RED SCANNER (2100IXR-3SER), RS232 CABLE (CBL-020-300-C00), NA

SKU:

2100IXR-3SERN

The Honeywell 2100IXR-3SERN ships as a complete RS232 kit — pairing the Granit Ultra 2100iXR corded scanner with an RS232 cable — and opens with FlexRange optics that reach 35.59 ft on a 1280 x 1080 imager, with a 42-degree horizontal by 36-degree vertical field of view and motion tolerance of 157 in/s. It reads 1D, 2D, PDF417, Postal, Digimarc, DOT Code and OCR symbologies, resolving Code 39 from 5 mil to 100 mil and DataMatrix from 10 mil to 100 mil at a minimum print contrast of 15%. IP65/IP68 sealing, MIL-STD-810G-rated 3m (10 ft) drop resistance, and an operating range of -22 degrees F (-30 degrees C) to 122 degrees F (50 degrees C) anchor it for warehouse, distribution and manufacturing use. The 11.64 oz chassis operates at up to 2.75 W, tolerates 20 kV air and 8 kV contact ESD, and is backed by a 3-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Granit Ultra 2100i is an ultra-rugged industrial handheld barcode scanner built for demanding warehouse, distribution, manufacturing, picking, and packing environments. Its AI-powered area imager with a 1280 x 1080 pixel array delivers an average 45% faster scanning speed compared to the Granit XP, confidently reading both 1D and 2D codes — including damaged, low-quality, and direct part marked barcodes — at motion tolerances up to 157.48 in/s. Dual IP65 and IP68 sealing, MIL-STD-810G-tested 3m (10 ft) drop resistance, 7,500 tumbles, and an operating temperature range of -22°F (-30°C) to 122°F (50°C) ensure continuous uptime in the harshest conditions. USB, Serial, and Keyboard Wedge interfaces simplify integration with existing host systems, while an ergonomic design and out-of-the-box readiness reduce operator training time. A three-year factory warranty underpins long-term deployment confidence.

Main Features

  • Rugged: Industrial

  • Connection: USB

  • Scanner Capability: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported
  • Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies
Light Source Laser
Image Sensor Type Imager
Scan Pattern Area
Scanner Range FlexRange
Scanning Distance 35.59 ft
Features
  • Vibration
  • Beep
  • Notification LED
  • Ergonomic Design
Field of View (Horizontal) 42°
Field of View (Vertical) 36°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 157 in/s
Maximum Ambient Light 100000 lux
Drop Specification
  • 3m (10 ft): MIL-STD-810G, 25C (77°F), 55% RH
  • 2.5m (8 ft): 20 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
  • 2m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 5 mil
Maximum Element Resolution (Code 39) 100 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 100 mil
Minimum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1280 x 1080
Illumination Type LED
Illumination Color Green
Air Electrostatic Discharge (+/-) 20kV
Contact Electrostatic Discharge (+/-) 8kV
Interfaces/Ports
Host Interface USB
Power Description
Maximum Operating Power Consumption 2.75 W
Standby Current 175 mA
Environmental Conditions
Operating Temperature -22°F (-30°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Durability
  • Impact Resistant
  • Scratch Resistant
  • Drop Resistant
Height 5.5"
Width 3"
Length 7.7"
Weight (Approximate) 11.64 oz
Miscellaneous
Ingress Protection (IP) Rating
  • IP65
  • IP68
Application/Usage
  • Warehouse
  • Distribution
  • Manufacturing
  • Picking
  • Packing
Warranty
Limited Warranty 3 Year
Documents
ico-plus ico-minus
Product document granit-ultra-2100ixr.pdf 2100IXR-3SERN Product document granit-ultra-2100isr.pdf MOD-2100IXR Product document granit-ultra-2100ixr.pdf MOD-2100IXR
FAQs
ico-plus ico-minus
What host interfaces does the Honeywell Granit 2100i support for connecting to a workstation or POS system?
The Granit 2100i supports USB, RS-232 TTL serial, and Keyboard Wedge interfaces, giving you flexibility to integrate with a wide range of host systems without additional adapters.
How durable is the Honeywell Granit 2100i, and can it handle freezer-to-floor temperature swings?
The scanner is rated IP65 and IP68, survives 3m (10 ft) drops tested to MIL-STD-810G, and withstands 7,500 tumbles from 1m (3.3 ft). Its operating temperature range runs from -30°C to 50°C (-22°F to 122°F), making it suitable for both freezer environments and high-heat production floors.
What barcode symbologies can the Honeywell Granit 2100i decode?
It reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies, with a minimum barcode element resolution of 2.5 mil for 1D codes and 5 mil for 2D codes.
How far can the Honeywell Granit 2100i XR model scan, and what is its motion tolerance?
The XR model scans from at or near contact up to 33 feet for 100 mil Code 39 rack labels, and up to nearly 6 feet (1.8m) for UPC codes. Motion tolerance is up to 4 m/s (157 in/s), which helps maintain read rates even when codes are moving or the operator is scanning quickly.
What warranty does the Honeywell Granit 2100i carry, and where can I get technical support?
The scanner includes a three-year factory warranty. Technical support is available through the Honeywell Technical Support portal at honeywell.com/PSStechnicalsupport, and user documentation is hosted at automation.honeywell.com.
Are mounting, holster, and cable accessories available for the Honeywell Granit 2100i?
Yes, Honeywell offers a broad range of accessories including wall-mount cup holders, a Granit holster, vehicle mount kits, a flexible presentation stand, a tool balancer reel, USB cables in lengths up to 5m (16.4 ft), RS-232 cables in standard and industrial freezer-rated versions, KBW cables, and heaters for 24V or 36–48V freezer environments.
