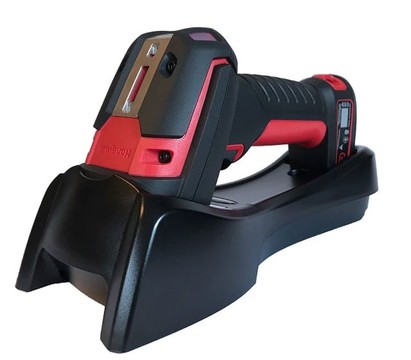

Honeywell Granit 1990i Handheld Barcode Scanner XLR, Wired multi-interface, 79ft maximum range

The Honeywell Granit XP 1990iXR Ultra-Rugged Scanner is a corded, industrial-grade 2D area-imaging barcode reader engineered for warehouses, distribution centers, manufacturing and logistics operations that demand reliable near-field to extended-range capture. Equipped with Honeywell’s FlexRange imaging, the scanner handles mixed symbologies and damaged labels while reducing the need to swap devices for different distances. Built for continuous tethered use, it delivers consistent operator feedback, multi-interface host connectivity and enterprise-class durability—IP65/IP67 environmental sealing, MIL‑STD drop resistance and tumble tolerance—to minimize downtime and maintain throughput in harsh, high-volume environments.

Key Features

• FlexRange Imaging: Single imager design supports near-field and extended-range reads so operators can capture barcodes at varying distances without changing equipment.
• Ultra-rugged Design: IP65/IP67 sealing, MIL‑STD verified drop resistance and 7,000 1 m tumbles reduce failures and lower total cost of ownership in industrial settings.
• Multi-interface Connectivity: Compatible with USB, Keyboard Wedge and RS-232 TTL host interfaces for flexible deployment across existing systems and workstations.
• High-performance Area Imager: 1280 x 800 (and extended XLR options) sensor enables fast decoding of 1D/2D, PDF, Postal, Digimarc, DOT Code and OCR symbologies, even on low-quality labels.
• Clear Operator Feedback: Good-decode LEDs, an adjustable beeper and adjustable vibration provide unambiguous confirmation in noisy, busy environments.
• Industrial Reliability: Wide operating conditions, high motion tolerance and broad light-level support maintain consistent scanning performance in demanding workflows.

Specifications

• Product Name: Granit XP 1990iXR Ultra-Rugged Scanner
• Brand: Honeywell
• Manufacturer Part Number (example variant): 1990IXR-3USB-R
• Imaging Technology: FlexRange imager
• Scan Pattern / Sensor: Area imager (1280 x 800 pixel array)
• Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL
• Decode Capabilities: Standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, OCR
• Dimensions (L x W x H): 192 mm x 76 mm x 100 mm
• Weight (corded): 320 g
• Input Voltage: 4.0 VDC to 5.5 VDC
• Operating Power (corded): 2.35 W (470 mA @ 5 VDC)
• Standby Power (corded): 0.5 W (100 mA @ 5 VDC)
• Operating Temperature: -30 °C to 50 °C
• Storage Temperature: -40 °C to 70 °C
• Operating Humidity: Up to 95% relative humidity, non-condensing
• Environmental Sealing (Ingress Protection): IP65, IP67
• Drop Resistance: Up to 3 m (10 ft); MIL‑STD‑810G verified (additional 2 m and 2.4 m test conditions cited)
• Tumble Resistance: 7,000 1 m (3.3 ft) tumbles
• Motion Tolerance: Up to 4500 mm/s
• Scan Angle (Horizontal x Vertical): 40° x 30°
• Minimum Print Contrast: 20% minimum reflectance difference
• Minimum 1D Resolution (Code 39): 3 mil
• Minimum 2D Resolution (Data Matrix): 6 mil
• Operating Light Levels: 0 to 100,000 lux
• ESD Protection: ±20 kV air discharge, ±8 kV contact discharge
• User Indicators: Good decode LEDs, adjustable beeper (tone and volume), adjustable vibration
• Warranty – Scanner: Three-year factory warranty
• Warranty – Battery Pack: One-year factory warranty
