Honeywell

HWA.HARDWARE.HONEYWELL XENON ULTRA 1960G..

SKU:

1960HHD-5USB-N

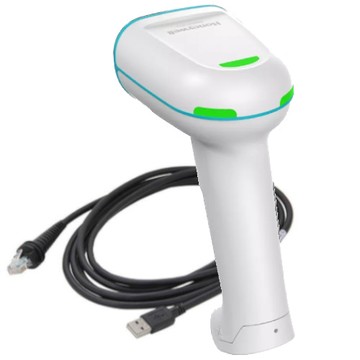

Configured at High Density focus, the Honeywell 1960HHD-5USB-N is a corded handheld barcode scanner built for healthcare environments, shipping as a kit with a USB Type A 3 meter straight cable. Its 1280 x 1080 image sensor resolves Code 39 elements from 3 mil to 20 mil, DataMatrix from 5 mil to 10 mil, and PDF417 from 5 mil to 6.7 mil, with a maximum scanning distance of 32.07 in and motion tolerance of 157.48 in/s across a 42-degree horizontal by 36-degree field of view. Reading angles reach 65 degrees pitch, 65 degrees skew and 360 degrees roll, and the scanner handles 1D, 2D, PDF, Postal, Digimarc, DOT Code and OCR symbologies against a minimum print contrast of 15%. The anti-microbial white housing is rated IP52 and survives drops of 1.8 m to concrete across the full operating range of 32°F to 122°F. At 5.19 oz, it provides vibration, beep and notification LED feedback modes. A 5-year limited warranty covers healthcare deployments in North America and Mexico.
Prices could not be updated.
Description
ico-plus ico-minus
The Honeywell Xenon Ultra 1960h is a corded handheld area-imaging scanner purpose-built for healthcare environments, designed to help clinicians deliver fast, accurate, and reliable patient care. Its 1280 x 1080 pixel imager reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies, while a green-dot aimer enhances targeting precision at the point of care. The antimicrobial housing, created with silver-ion additives, resists repeated cleaning with disinfectant solutions and discourages germ and bacteria growth — a critical advantage in hospitals and clinical settings. Multiple patient-sensitive operating modes, including Patient Do-Not-Disturb and Silent Mode, protect resting patients without interrupting workflow. USB, Keyboard Wedge, and RS-232 interfaces ensure broad compatibility, and an IP52 environmental seal guards against dust and light moisture exposure.

Main Features

  • Case color: White

  • Connection: USB

  • Scanner Capability: 2D

Technical Specifications
ico-plus ico-minus
Technical Information
Connectivity Technology Cable
Scanning Capability
  • 1D
  • 2D
Barcode Symbology Supported

Decode Capabilities: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Light Source LED
Scanner Range High Density
Scanning Distance 32.07"
Features
  • Vibration
  • Beep
  • Notification LED
Cable Type Included USB
Field of View (Horizontal) 42°
Field of View (Vertical) 36°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 157.48 in/s
Maximum Ambient Light 100000 lux
Drop Specification

1.8 m (6 ft) to concrete across operating temp range
Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1280 x 1080
Illumination Color White
Interfaces/Ports
Host Interface USB
Environmental Conditions
Operating Temperature 32°F (0°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Color Family White
Product Color White
Weight (Approximate) 5.19 oz
Miscellaneous
Package Contents
  • Xenon Ultra 1960H Healthcare Corded Handheld Scanner
  • USB Type A 3 meter (9.84 feet) Straight Cable
Ingress Protection (IP) Rating IP52
Application/Usage Healthcare
Warranty
Limited Warranty 5 Year
Documents
ico-plus ico-minus
Product document xenon-ultra-1960h-2023.pdf 1960HHD-5USB-N Product document xenon-ultra-1960h-2023.pdf MOD-XENON-1960H
FAQs
ico-plus ico-minus
What host interfaces does the Honeywell Xenon 1960h support for connecting to clinical workstations?
The Xenon 1960h connects via USB, Keyboard Wedge, and RS-232 Serial, giving IT teams flexibility to integrate with a wide range of existing hospital workstation configurations.
How does the Honeywell Xenon 1960h address infection control requirements in healthcare environments?
The housing is built with silver-ion additives that discourage the growth of germs and bacteria, and the improved design minimizes nooks and crannies where pathogens can linger, making it resilient to repeated cleaning with a wide variety of cleaning solutions.
What barcode types can the Honeywell Xenon 1960h read, and what is its image sensor resolution?
The scanner reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies using a 1280 x 1080 pixel array imager, and it can resolve minimum elements as fine as 2 mil (1D) and 4 mil (2D) in high-density configuration.
What operating modes does the Honeywell Xenon 1960h offer to minimize disruption to resting patients?
The scanner supports quiet operating modes including Patient Do-Not-Disturb, Silent Mode with Flashing LED, Silent Mode with Long LED, and a Nighttime Mode with a very low beeper, all designed to maintain clinician productivity without disturbing patients.
Can the Honeywell Xenon 1960h reuse cables from an existing Xenon XP 1950h deployment?
Yes, the Xenon 1960h is compatible with cables from an existing Xenon XP 1950h deployment, which helps protect prior infrastructure investment when upgrading.
What warranty and environmental ratings does the Honeywell Xenon 1960h carry?
The Xenon 1960h is rated IP52 for environmental sealing, operates from 0°C to 50°C (32°F to 122°F), and is backed by a 5-year factory warranty for the corded model.
