Hanwha Vision

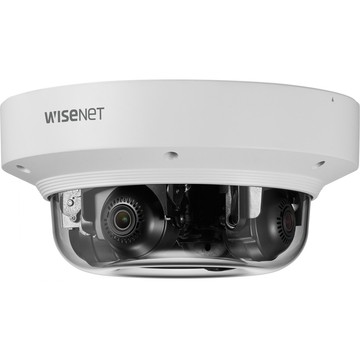

Hanwha Vision PNM-9084QZ1 Security Camera

SKU:

PNM-9084QZ1

Security Cameras, Hanwha Techwin America PNM-9084QZ1, Wisenet, 8 Megapixel Full HD Network Camera, Color, Dome, TAA Compliant, H.265, H.264, MJPEG, H.265M, H.265B, H.265H, H.264M, H.264B, H.264H, 1920 x 1080, 3 mm- 6 mm Varifocal Lens, 2x Optical, CMOS, Hanging Mount, In-ceiling, IK10, IP66
Description
ico-plus ico-minus
Parts and products from Hanwha Vision.
Technical Specifications
ico-plus ico-minus
Technical Information
Recording Formats Full HD
HD Recording Yes
Display & Graphics
Image Sensor Type CMOS
Color Supported Color
Field of View H: 107(Wide)~56.3(Tele) / V: 57(Wide)~31.5(Tele) / D: 126(Wide)~64.3(Tele)
Effective Camera Resolution 8 Megapixel
Number of Sensors 4
Video
Video Formats
  • H.265
  • H.264
  • MJPEG
  • H.265M
  • H.265B
  • H.265H
  • H.264M
  • H.264B
  • H.264H
Maximum Video Resolution 1920 x 1080
Maximum Frame Rate 60 fps
Lens
Lens Type Varifocal
Minimum Focal Length 3 mm
Maximum Focal Length 6 mm
Lens Included Yes
Minimum Aperture f/3.1
Maximum Aperture f/2.2
Optical Zoom 2x
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 2 Second
Network & Communication
Connectivity Technology Wired
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Power Source Type DC
Physical Characteristics
Mount Type
  • Hanging Mount
  • In-ceiling
Form Factor Dome
Color Family White
Product Color White
Diameter 9.9"
Weight (Approximate) 6.61 lb
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 90%
Miscellaneous
Features
  • SD Card Local Storage
  • Day/Night
  • Automatic White Balance
  • Highlight Compensation (HLC)
  • Back Light Compensation (BLC)
  • Digital Wide Dynamic Range (D-WDR)
  • Wide Dynamic Range
  • Gain Control
  • Password Protection
  • Alarm Triggering
  • Digital Image Stabilization
  • Defog
Impact Protection Rating IK10
Ingress Protection Rating IP66
TAA Compliant Yes
