Epson

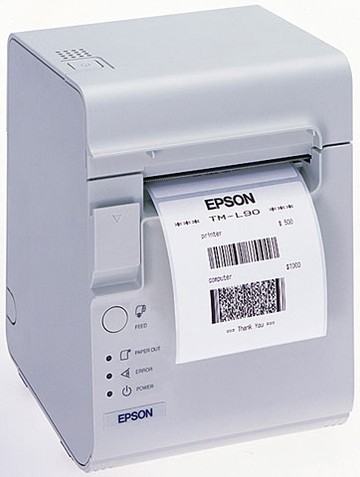

L90 Plus, no Peeler, Serial & USB, Power Supply, Cool White

SKU:

C31C412406

Fitted with an auto-cutter and running at 24 V DC via included power adapter, the Epson C31C412406 is a Cool White desktop direct thermal label printer that delivers monochrome output at 203 x 203 dpi and up to 5.91 in/s across a 2.83-inch print width. It accepts label media up to 3.14 inches wide on rolls to 3.50 inches in diameter, with paper-low and out-of-paper sensors monitoring stock throughout the run. Serial and USB connectivity are both standard, and 1D and 2D barcode symbologies supported include Code 39, Code 128, EAN-13, PDF-417, QR Code, Maxi Code and GS1 DataBar, among others. Onboard memory stands at 14 KB standard and 192 KB flash. The unit measures 8 in tall by 5.5 in wide by 5.8 in deep and weighs 4.19 lb. Certifications include FCC class A, CE marking, UL/CSA and TUV (EN60950), and the printer is covered by a one-year limited warranty.
Prices could not be updated.
Description
ico-plus ico-minus
The Epson TM-L90 Plus is a compact desktop direct thermal printer designed for retailers, hospitality operators, pharmacies, and quick-service environments that need versatile label, barcode, and receipt printing from a single device. Printing at 203 x 203 dpi and reaching speeds of up to 150 mm/sec in high-speed mode, it delivers sharp, legible output across labels, receipts, and tickets. The printer accommodates roll paper up to 3.5" in diameter and supports a wide range of barcode symbologies including PDF-417, QR Code, and GS1-128. Flexible connectivity via USB, serial, and Ethernet interfaces makes integration into existing POS and back-office environments straightforward, while compatibility with leading business label software using Windows drivers simplifies deployment. A built-in auto-cutter and drop-in paper loading keep operations moving efficiently.

Main Features

  • Equipment Format: Desktop

  • Case color: White

  • Connection: Serial, USB

  • Printing Technology: Direct Thermal

Technical Specifications
ico-plus ico-minus
Technical Information
Recommended Use Label Print
Print Color Capability Monochrome
Maximum Mono Print Speed 5.91 in/s
Maximum Print Resolution (dpi) 203 x 203
Maximum Print Width 2.83"
Barcode Symbology Supported
  • UPC-E
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • ITF
  • Codabar
  • PDF-417
  • QR Code
  • Maxi Code
  • GS1 DataBar
  • GS1-128
Application/Usage Desktop
Features Auto-cutter
Print Technology Direct Thermal
Memory
Standard Memory 14 KB
Flash Memory 192 KB
Interfaces/Ports
Serial Port Yes
USB Yes
Cutter
Cutter Yes
Media Types & Handling
Media Type Label
Media Sensor
  • Paper Low Sensor
  • Out Of Paper Sensor
Maximum Roll Diameter 3.50"
Maximum Label Width 3.14"
Power Description
Power Source Power Adapter
Input Voltage 24 V DC
Physical Characteristics
Color Family White
Product Color Cool White
Height 8"
Width 5.5"
Depth 5.8"
Weight (Approximate) 4.19 lb
Miscellaneous
Package Contents
  • TM-L90 Plus Label and Barcode Printer
  • Thermal Roll Paper (starter roll for operation check)
  • User Guide
  • Power Supply with AC Cable
Power Adapter Included Yes
Platform Supported PC
Certifications & Standards
  • VCCI class A
  • FCC class A
  • CE marking
  • Canada EMI
  • AS/NZS 3548 Class B
  • UL/CSA
  • TUV (EN60950)
Environmentally Friendly Yes
Warranty
Limited Warranty 1 Year
Documents
ico-plus ico-minus
Product document tm-l90-plus.pdf C31C412406 Product document tm-l90-plus.pdf MOD-TM-L90-PLUS
FAQs
ico-plus ico-minus
What print resolution and speed does the Epson TM-L90 Plus deliver?
The Epson TM-L90 Plus prints at 203 x 203 dpi and reaches speeds of up to 150 mm/sec in high-speed mode and 120 mm/sec in normal mode.
Which connectivity interfaces are available on the Epson TM-L90 Plus?
The printer includes a built-in USB interface plus one additional UIB interface, selectable from serial RS-232C, parallel IEEE-1284, Ethernet, high-speed USB, powered USB, Bluetooth, or WiFi, though only one additional interface can be used at a time.
What barcode symbologies can the Epson TM-L90 Plus print?
It supports UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), ITF, Code 39, Code 93, Code 128, Codabar, PDF417, MaxiCode, and QR Code, printed either vertically or horizontally.
What paper roll sizes does the Epson TM-L90 Plus accept?
The printer accepts roll widths of 38 mm (1.50"), 60 mm (2.76"), and 80 mm (3.14"), with a maximum roll diameter of 90 mm (3.5"); a included roll paper spacer lets you adjust width from 38 mm to 70 mm.
What is in the box with the Epson TM-L90 Plus?
The package includes the TM-L90 Plus printer, a thermal roll paper starter roll for operation check, a user guide, and a power supply with AC cable.
What reliability ratings and warranty does the Epson TM-L90 Plus carry?
The printer is rated at an MTBF of 360,000 hours and an MCBF of 70 million lines, with an autocutter life of up to 2 million cuts for receipts and 1 million cuts for labels, and it is backed by a one-year limited warranty.
