U590, USB - No DM/No Hub, No MICR, Cool White, Requires Power Supply
C31C196A8981
Select model

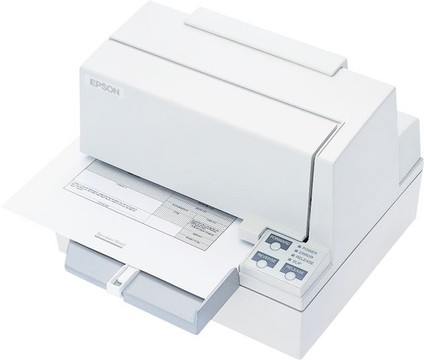

The Epson TM-U590 Receipt Printer is a high-performance slip printer designed for versatile applications in hotels, banks, and restaurants. With its ability to print original slips and up to four copies, this multifunction printer ensures efficient customer service. It features smooth slip insertion, easy paper loading, and quick paper jam removal. The TM-U590 boasts a remarkable printing speed of 311 characters per second, making it a reliable choice for high-volume environments, while its extended table allows for the handling of larger slips without hassle.
- High-Speed Printing: Offers a print speed of 311 characters per second.
- Versatile Slip Handling: Supports original slips and up to four copies for various applications.
- User-Friendly: Easy paper loading and smooth jam removal for minimal interruptions.
- Superb Reliability: Trusted EPSON quality ensures long-lasting performance.
- ESC/POS Compatibility: Conforms to EPSON’s command system for easy integration.
- Print Method: 9-pin, serial impact dot matrix
- Print Speed: 311/233 cps
- Column Capacity: 88 / 66 columns
- Character Set: 95 Alphanumeric, 32 International
- Power: 24 VDC ± 10%
- Current Consumption: Approx. 1.9A
- Overall Dimensions: 252 × 266 × 185 mm (W x D x H)
- Mass: Approx. 5 kg (11.0 lb)
- Connectivity: RS-232C, Bi-directional parallel, RS-485, USB
- Copy Capability: One original and four copies
Main Features
-
Case color: White
-
Connection: USB
-
Printing Technology: Dot Matrix
| Technical Information | |
|---|---|
| Print Technology | Dot Matrix |
| Maximum Mono Print Speed (cps) | 311 cps |
| Number of Pins | 9-pin |
| Maximum Number of Columns | 88 |
| Memory | |
|---|---|
| Buffer | 4 KB |
| Interfaces/Ports | |
|---|---|
| USB | Yes |
| Media Types & Handling | |
|---|---|
| Media Type | Slip |
| Maximum Horizontal Media Size (Slip) | 8.27" |
| Maximum Vertical Media Size (Slip) | 11.69" |
| Reliability | |
|---|---|
| MTBF | 180000 Hour |
| Power Description | |
|---|---|
| Input Voltage | 24 V DC |
| Physical Characteristics | |
|---|---|
| Product Color | White |
| Height | 7.3" |
| Width | 9.9" |
| Depth | 10.5" |
| Weight (Approximate) | 11.02 lb |
| Miscellaneous | |
|---|---|
| Package Contents |
|
| Certifications & Standards |
EMI Standards:
Safety Standards:
|
tmu590.pdf C31C196A8981
tmu590.pdf MOD-TM-U590
