Tripp-Lite

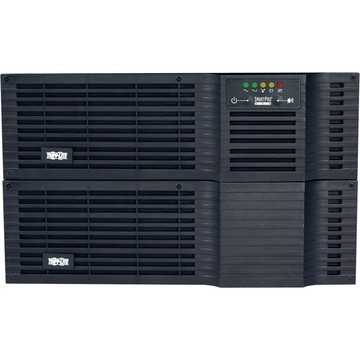

Tripp-Lite SMART5000RT-3U Accessories

SKU:

SMART5000RT-3U

Power Systems & Supplies, Tripp-Lite, UPS 5000VA 4000W Smart Rackmount AVR 208V/120V 5kVA USB DB9 6URM
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
Plug/Connector Type NEMA L6-30P
Receptacle Type
  • NEMA 5-20R
  • NEMA L14-30R
  • NEMA 5-15R
  • NEMA L6-30R
Receptacle Detail
  • 2 x NEMA 5-20R
  • 1 x NEMA L14-30R
  • 10 x NEMA 5-15R
  • 1 x NEMA L6-30R
Emergency Power OFF Yes
Cord Length 10 ft
Transfer Time 4 ms
Power Description
Load Capacity (VA) 5000 VA
Load Capacity (Watt) 4000 W
Input Voltage 220 V AC
Output Voltage 208 V AC
Waveform Type Sine Wave
Management
Network Management SNMP Manageable
Alarm
  • On Battery
  • Overload
  • Low Battery
Controls/Indicators
Status Indicators 5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED
Interfaces/Ports
USB Yes
Total Number of Expansion Slots 1
Battery Information
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 16 Minute
Backup/Run Time (Half Load) 38 Minute
Battery Life 6 Year
Typical Battery Recharge Time 4 Hour
Hot Swappable Yes
Environmental Conditions
Maximum Operating Temperature 104°F (40°C)
Physical Characteristics
Height 3.5"
Width 17.3"
Depth 16.8"
Rack Height 6U
Weight (Approximate) 58.50 lb
Miscellaneous
Package Contents
  • SMART5000RT3U UPS
  • SMART5000RT3U UPS System
  • BP48V60RT3U battery pack
  • PowerAlert Software and cabling
  • Mounting hardware
  • Instruction manual with warranty information
Additional Information
  • Large 5000VA / 4000 watt output capacity with full time sine wave output offers guaranteed compatibility with all equipment types
  • High power density 5kVA power module and battery pack occupy only 3 rack spaces (3U) each (UPS and battery pack use 6U when installed)
  • 38 minutes half load runtime, expandable runtime with multiple external battery packs (part# BP48V60RT3U)
  • Line interactive voltage regulation corrects severe brownouts and overvoltages without using battery power
  • Dual voltage output is simultaneously compatible with both 208 and 120V equipment
  • 14 total outlets (120V: 10 5-15R, 2 5-20R / 208v: 1 L6-30R, 1 L14-30R)
  • Diagnostic LEDs provide visual indication of 17 separate performance conditions
  • Included PowerAlert Software provides e-mail or pager notification of power problems and the simultaneous automatic unattended shutdown of multiple servers
  • 4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown
  • Slot for SNMP/web card SNMPWEBCARD and environmental sensor ENVIROSENSE for remote communications in large IP environments
  • 8 customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or automatic "load shedding" of less critical loads to extend battery runtime for the most critical equipment
  • Emergency Power Off (EPO) interface for emergency shutoff in large facilities
  • Hot-swappable / user replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack
  • UPS battery set ships fully assembled and ready for connection to the power module, no time consuming, connection of individual internal batteries by user is necessary
  • $250,000 Ultimate Lifetime Insurance (USA & Canada Only). No warranty cards required for coverage!
  • 2 year manufacturers product warranty
Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin China
Warranty
Limited Warranty 3 Year
