Tripp-Lite

Tripp-Lite OMNIVS1500XL Accessories

SKU:

OMNIVS1500XL

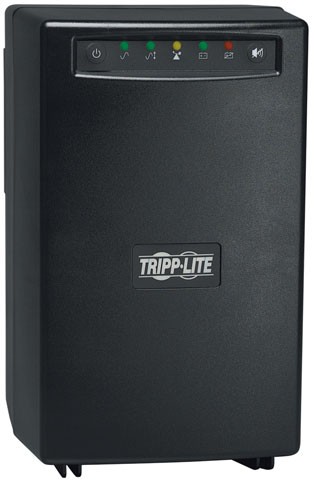

Tripp Lite UPS 1500VA 940W Battery Back Up Tower AVR 120V RJ11 RJ45 - Tower - 4 Hour Recharge - 5 Minute Stand-by - 110 V AC Input - 120 V AC Output - 2 x NEMA 5-15R, 6 x NEMA 5-15R
ico-puzzle-piece-02 This product is compatible with...
Description
ico-plus ico-minus
Products and parts from Tripp-Lite.
Technical Specifications
ico-plus ico-minus
Technical Information
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail
  • 2 x NEMA 5-15R
  • 6 x NEMA 5-15R
Dataline Protection RJ-45
Cord Length 6 ft
Transfer Time 4 ms
Power Description
Load Capacity (VA) 1500 VA
Load Capacity (Watt) 940 W
Input Voltage 110 V AC
Output Voltage 120 V AC
Surge Energy Rating 480 J
Management
Alarm On Battery
Controls/Indicators
Status Indicators 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and voltage regulation operation
Interfaces/Ports
USB Yes
Battery Information
Backup/Run Time (Full Load) 5 Minute
Backup/Run Time (Half Load) 14 Minute
Battery Life 6 Year
Typical Battery Recharge Time 4 Hour
Hot Swappable Yes
Environmental Conditions
Maximum Operating Temperature 122°F (50°C)
Physical Characteristics
Color Family Black
Product Color Black
Height 11.8"
Width 7.3"
Depth 7.5"
Form Factor Tower
Weight (Approximate) 32.20 lb
Miscellaneous
Package Contents
  • OMNIVS1500XL Line Interactive UPS
  • USB and telephone cable
  • User manual with warranty information
Additional Information
  • OMNIVS1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
  • Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss
  • Regulates brownouts as low as 75 and overvoltages to 147V back to usable 120V nominal levels without using battery power
  • 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
  • USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure
  • PowerAlert software available via free download from www.tripplite.com
  • Dataline surge suppression protects standard dialup/DSL or ethernet line connection
  • Audible alarm and 4 front panel LEDs offer complete UPS and line power status information
  • 1500VA power handling ability supports a variety of sensitive electronic equipment
  • 5 minutes full load runtime (1500VA), 14 minutes half load runtime (750VA)
  • Runtime is further expandable with the addition of BP24V14 external battery pack
  • Supports hot swappable battery replacement via built-in access panel
  • $200,000 connected equipment insurance (USA & Canada Only)
  • 2 year warranty
Certifications & Standards
  • UL1778 (USA)
  • cUL (Canada)
  • FCC Class B (emissions)
  • NOM (Mexico)
  • FCC Part 68 / Industry Canada (telecommunications)
Recycled No
Assembly Required No
Country of Origin Vietnam
Warranty
Limited Warranty 3 Year
Additional Warranty Information

$200,000 connected equipment insurance (USA, Puerto Rico & Canada Only)
